0 Electricity bill | 0 Noise with Energy Storage System

5kW solar plant for Jamaica’s home 24 hour electricity

Free sunlight will produce different effects for different people. For example, in Jamaica, some people use solar plants to absorb free sunlight and efficiently convert it into daily electricity needs.

This article will lead you to understand what their solar plant is like.

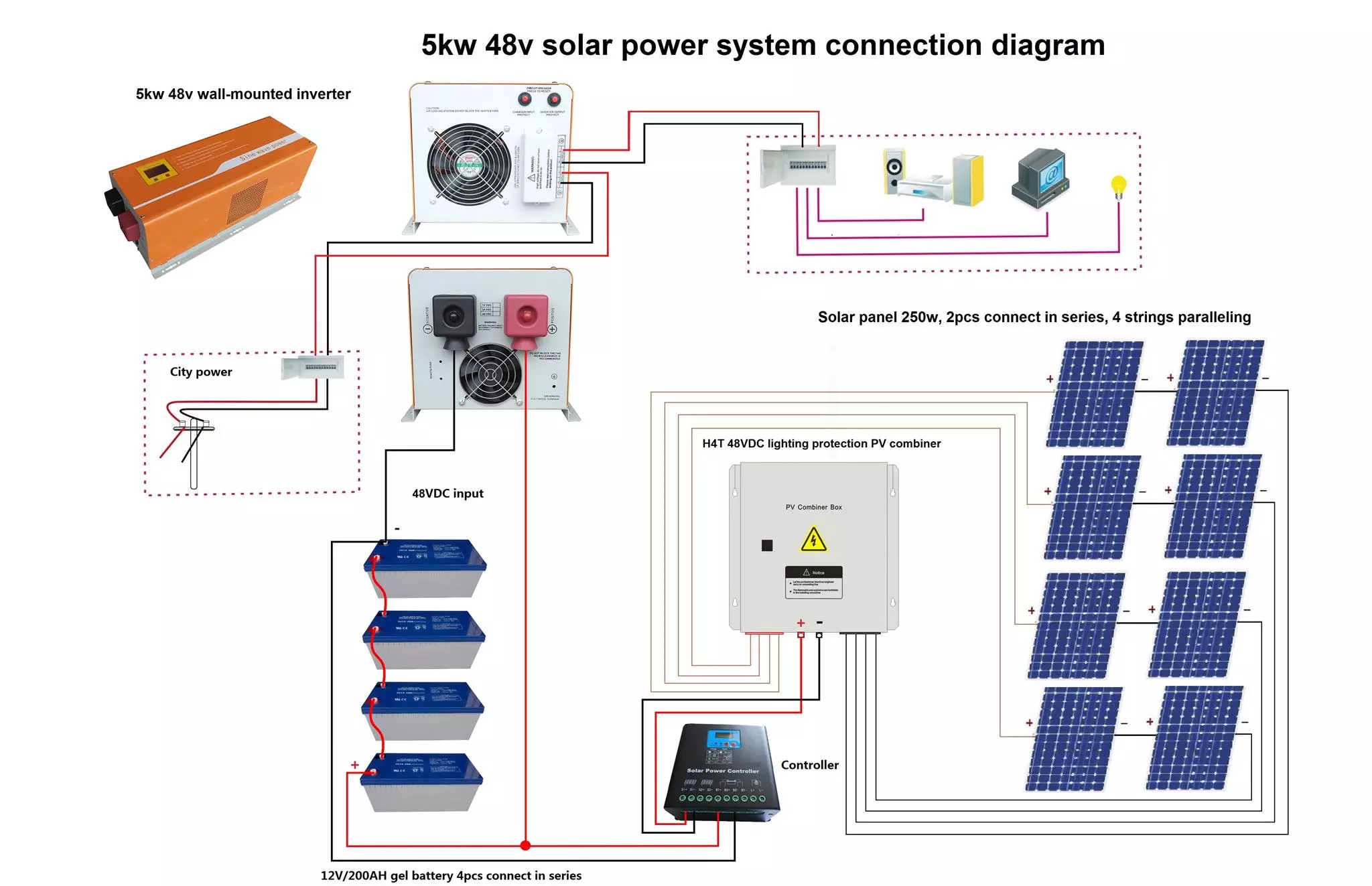

What is a 5kw solar plant? Here show you a 5kw 48vdc solar plant connection diagram

Why is the 5kW solar energy storage system the first choice for 80% of household users?

There are many types of solar plants. For example, an off-grid solar energy storage system, a grid-connected solar energy system, a wind-solar complementary hybrid system, etc.

They are all suitable for home use, and it is worth noting that grid-tied solar systems and hybrid systems have restrictions.

The on-grid solar energy system requires that the urban power grid in your area is very developed, because there is no battery backup, so it is necessary for the utility power to maintain a stable power supply at all times, with no power outages 2 – 3 times a day.

Once a power outage occurs, the grid-connected solar system will also be deactivated.

Like a swimming pool, after the water was drained, 2 maintenance workers came down to inspect it. If you put water in at this time, 2 maintenance workers may drown.

The water here = electricity in reality. The grid-connected solar system stops power generation, which is a protection mechanism.

Because the wind-solar hybrid system includes wind turbines, it will rely on wind speed in your local area.

Only with an average wind speed of 6-8m/s can it completely replace the public utility grid and diesel generators. You can click on the orange fonts to jump to related pages, to get more information about them.

For the off-grid solar energy storage system, it suitable for use in remote areas, areas without public utility grids, or unstable power.

PVMars’ off-grid solar energy storage system is not only suitable for use in the above areas but also more suitable for use in areas with well-developed urban power grids.

Because off-grid solar energy storage systems include hybrid inverters, this type of inverter can be connected to your local grid and adjust its operating mode.

When the battery energy is insufficient, the inverter will automatically jump to the main grid of the city in 0 seconds, and continue to supply power to your household appliances (loads).

Therefore, many people prefer a hybrid solar energy storage system.

PVMars 5kW solar plant for Jamaica's home 24 hour electricity
Click on the picture to watch the working video of the 5kW solar system

From the above text, we know that the off-grid solar energy storage system is more flexible, more functional, and has a wider scope of application.

The average family has 2-3 rooms, 2 air conditioners, refrigerators, lights, computers, and other daily appliances.

PVMars solar equipment factory, after years of research, has affirmed that the 5kW hybrid inverter is fully capable of carrying them. Let these electrical equipment operate normally.

For example, PVMars’ 5kW solar system is powering resorts in Guinea, a 5kW solar wind hybrid system is generating homes in Denmark, a 5kW off-grid solar system powers 4-story offices, and more.

This time, our solar plant provides 24-hour continuous electricity for families in Jamaica.

What is special about Jamaica's solar plant?

Most countries in South America are dual voltage 120v/240v.

Among them, Mr.Cxx (user privacy protection) household appliances are mostly 110vac, and the wall-mounted inverter we designed can output 110vac or 220vac±10%, which is very suitable for families with limited space.

Mr. Cxx’s home also has air conditioners, refrigerators, and electric lights.During the day, no one is at home, all go out to work.

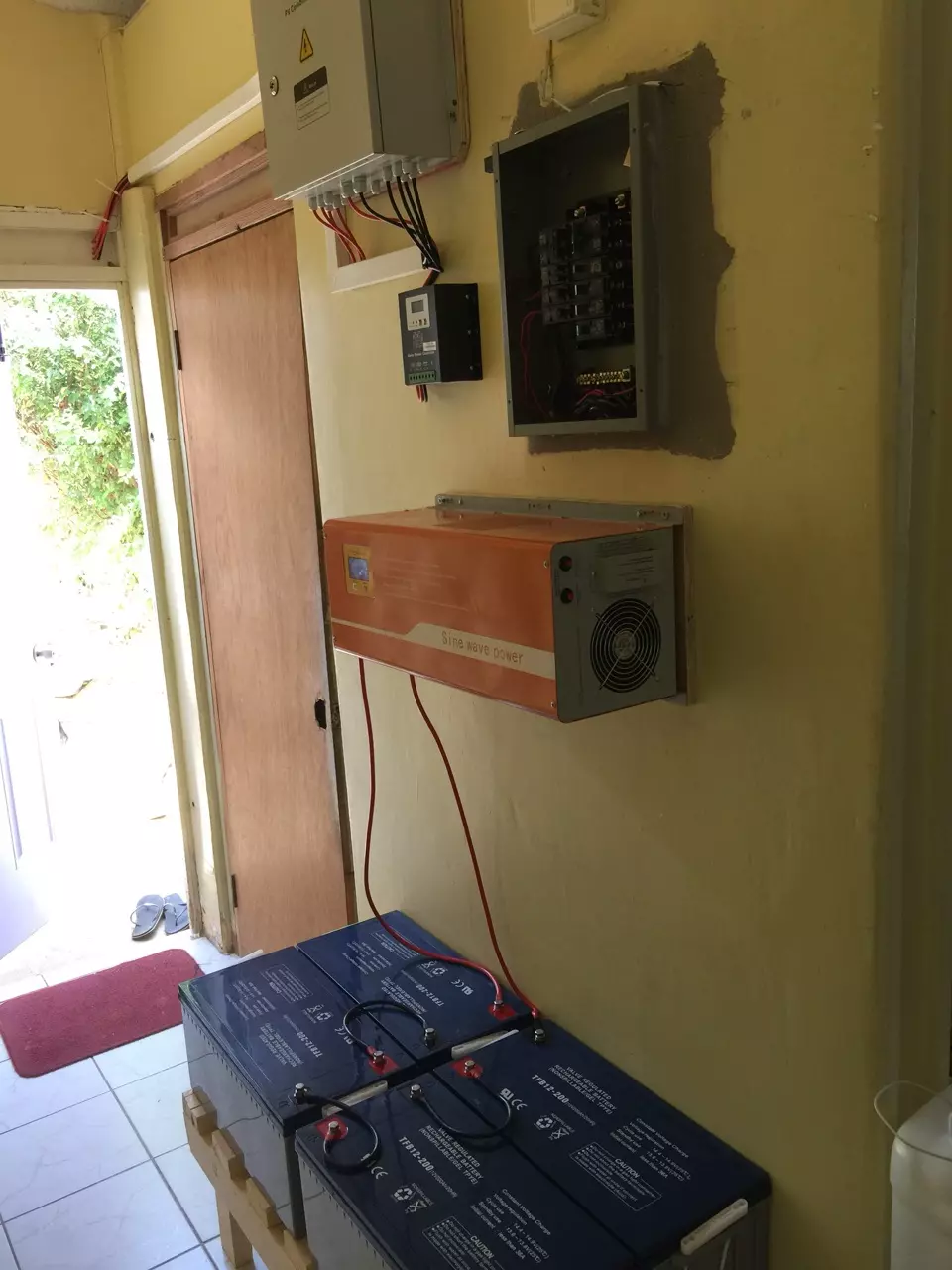

PVMars designed 2kW solar panels, four 12v200ah batteries, and a 5kW wall-mounted hybrid solar inverter for this situation.

Because solar panels generate the most electricity during the day, but no one at home needs it. Consider a solution with fewer solar panels, which can save costs and not waste electricity generated by solar panels.

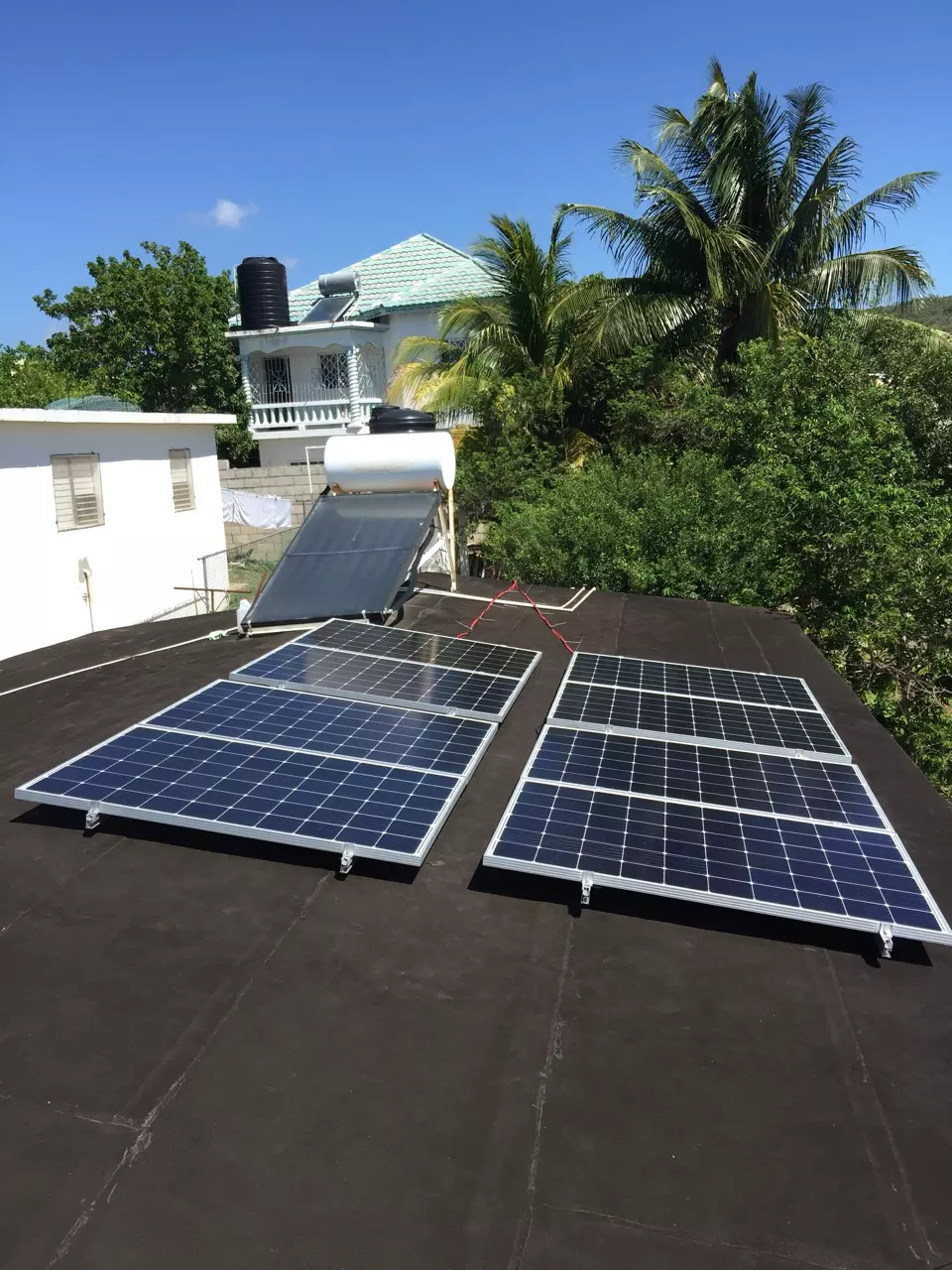

PVMars 2kw solar panels installed on rooftop

Maximize the benefits of using solar plants to power your home for 24hrs. We call this type of solar energy storage system economical.

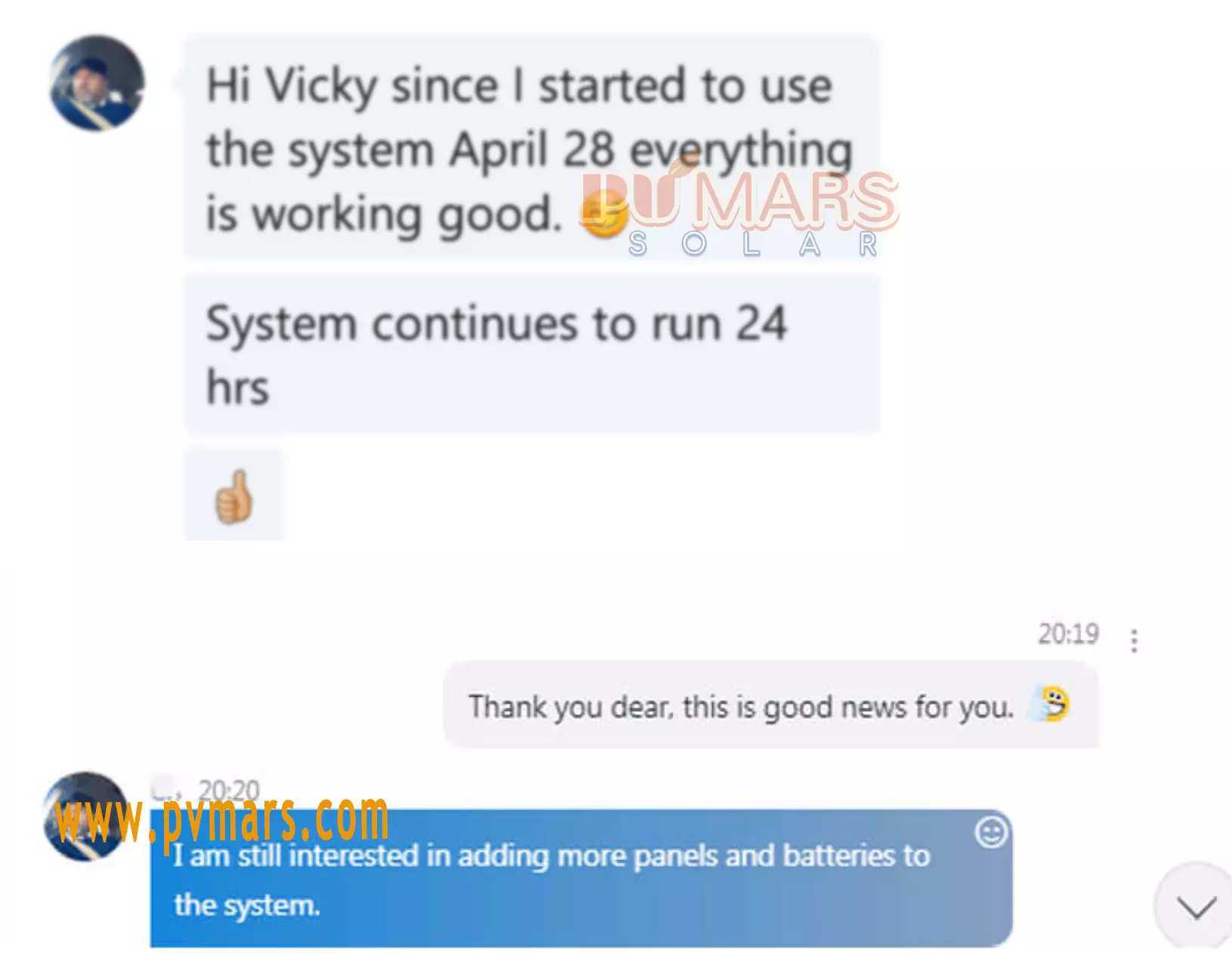

Use a 5kw solar energy storage system for my home and it can run 24 hours.

How to transport the economical solar energy storage system?

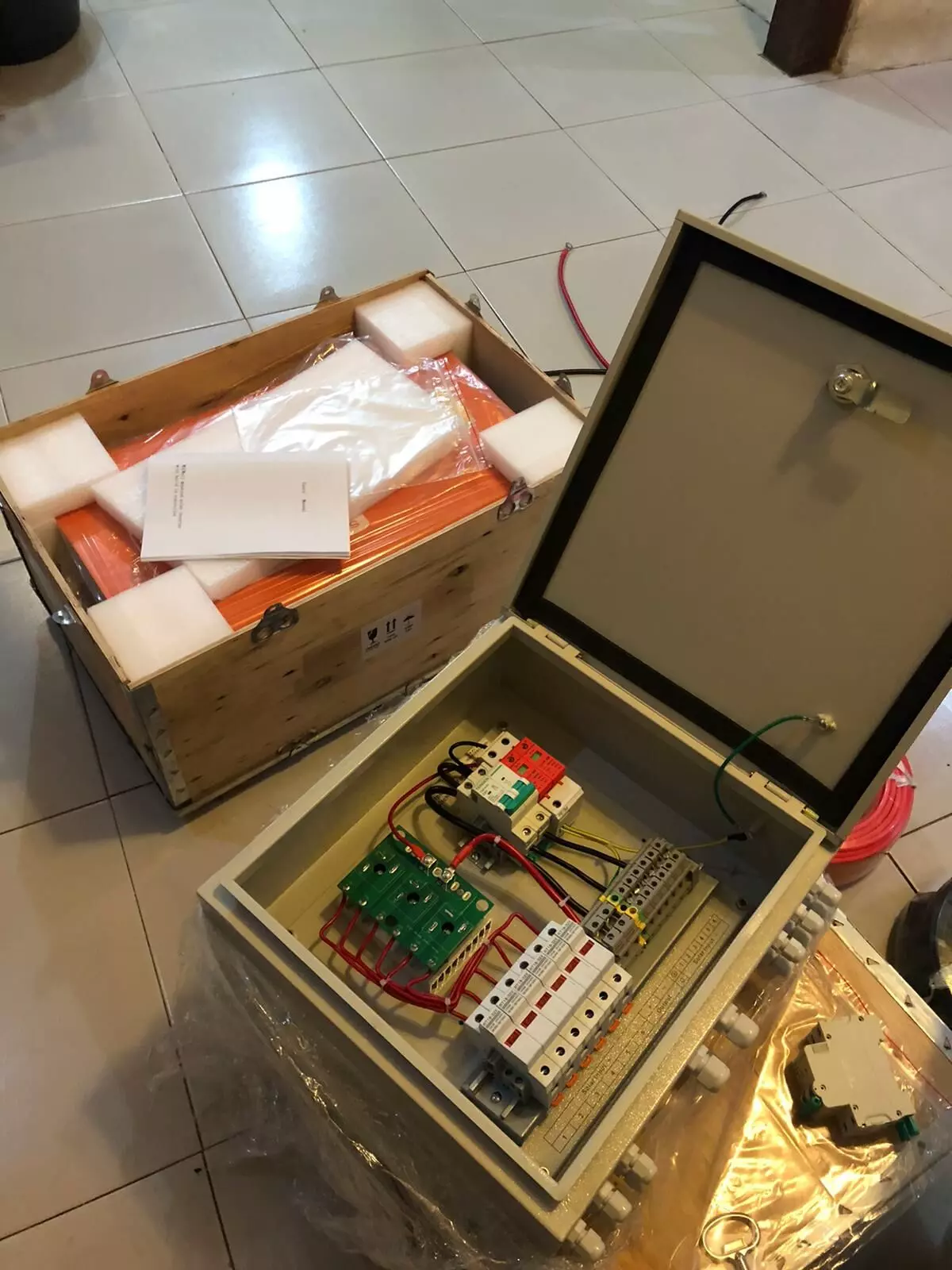

In this case, there are only 8 250W solar panels, 4 batteries, 1 inverter, 1 control, and a combiner box.

If transported separately, it will increase the volume and transportation cost. Secondly, there are at least 16 solar panels on a pallet, so transportation is hard to break.

Considering these, we transformed the wooden box and packed all the solar panels, batteries, inverters, controllers, combiner boxes, and wires into a large wooden box. Become less than 1m3 transport subject.

That is to ensure cargo transportation safety and save transportation costs.

Customize your own exclusive renewable energy system!

PVMars solar equipment factory provides high-quality products and professional solutions, but also ensures your maximum benefit.

From a series of processes such as production, packaging, transportation, installation, and after-sales, we always think about you.

Embrace the most cost-effective PVMars solution, join the sustainable energy revolution, and realize greener facilities, lower energy costs, and a brighter future.
