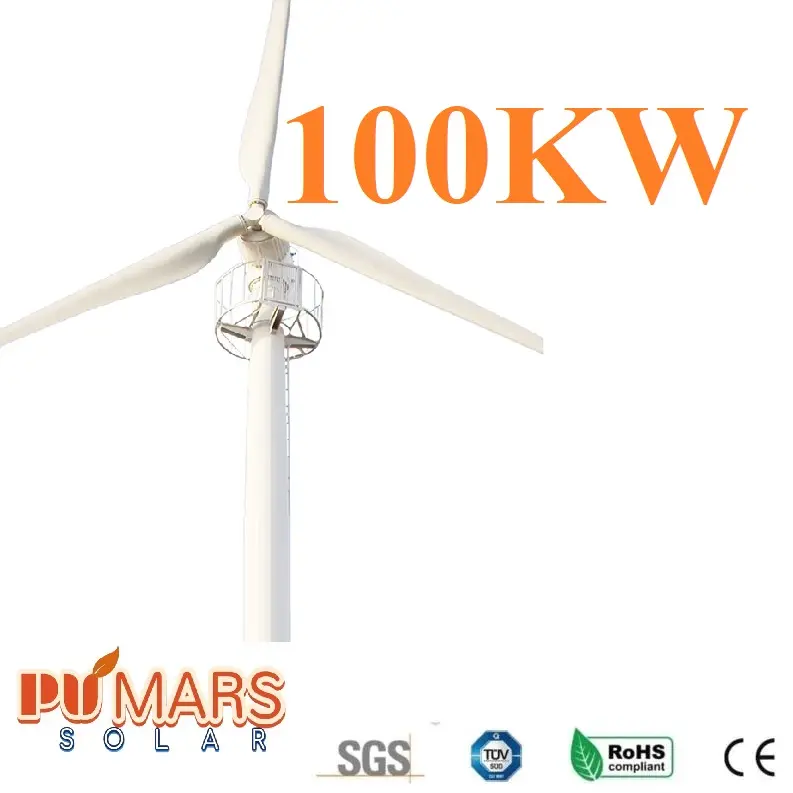

100kW Wind Turbine – Horizontal Axis

PVMars provides a high-quality 100kW wind turbine with a controller, IGBT inverter, and batteries. Full set 100kW wind power plant for factory, large supermarket, or hotel.

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: 100kW horizontal wind turbine

Commercial wind power storage solution

Can work with solar/battery/grid or generator backup

Introduction of 100kW Wind Turbine

A single 100kW wind turbine + controller + inverter + battery can help you go green.

Let’s get rid of diesel generators and utility grids. Free, green, and reliable energy will power your life.

Whether you’re running a villa, farm, hotel, resort, or whatever you need, the 100kW wind turbine can power it all day and night.

Wind power can be used to power anything that needs electricity, including air conditioners, TVs, microwaves, refrigerators, production equipment, precision instruments, etc.

For more information on 100kW wind turbine parts and prices, keep browsing.

Explanatory view of an 100kw wind turbine

Horizontal axis wind turbine disassembly diagram

We can divide it into many types of wind turbines based on different axial directions. (Click on the orange font for more information).

PVMARS is committed to customers receiving complete products. If there are any missing parts or quality issues, you can check our after-sales policy and enter your money protection mechanism.

Tips: 100kW = 100 kilowatts = 100,000 watts

100kW wind turbine features and advantages:

1) PVMARS’s horizontal axis wind turbines have tail rudders. These rudders can automatically adjust the windward angle to 360°, without fear of wind direction changes. Increase power generation.

2) The wind blades are reinforced with fiberglass, which can withstand violent storms of more than 40m/s.

3) Using a three-phase AC permanent magnet synchronous generator, it can work safely in a cold environment of -40°C.

PVMARS can add color to wind blades according to your local environment, reducing bird deaths.

Why can adding color protect the local ecological environment? Click on the orange font to learn 8 cool facts about wind turbines

300w-100kw wind turbine produce from PVMars company

What size of a 100kW wind turbine?

More specific parameters are as follows:

Model

MF-100000

Rated power

100000W

Starting wind speed

2.5m/s

Rated voltage

380V/480V/600V or custom

Rated wind speed

10.5m/s

Security wind speed

≤50m/s

Rated DC voltage

360V

Number of blades

3

Wind blade diameter

20m

Rated speed

70rpm

Control mode

Automatic yaw controlled electronically

Generator type

3 phase AC permanent magnet synchronous generator

/ Lightning protection module + lightning protection grounding

Fuselage material

Reinforced FRP + Cast iron +

Hot-dip galvanized + special anti-corrosion paint

Temperature

-40℃ ~ 80℃

Service life/Degree of protection

≥ 20 years / IP54

Packing material

Foam and plywood

N.W&G.W(kg)

≈5000kg

Packing size

297*92*106cm + 561*85*90cm + 85*85*62cm +

255*170*9cm

100kw wind turbine is packaged in these 4 parts

– wind blades, generator and other accessories

How much power does a 100kW wind turbine produce?

From the power curve table below, we know that the wind turbine’s energy changes as the wind speed changes.

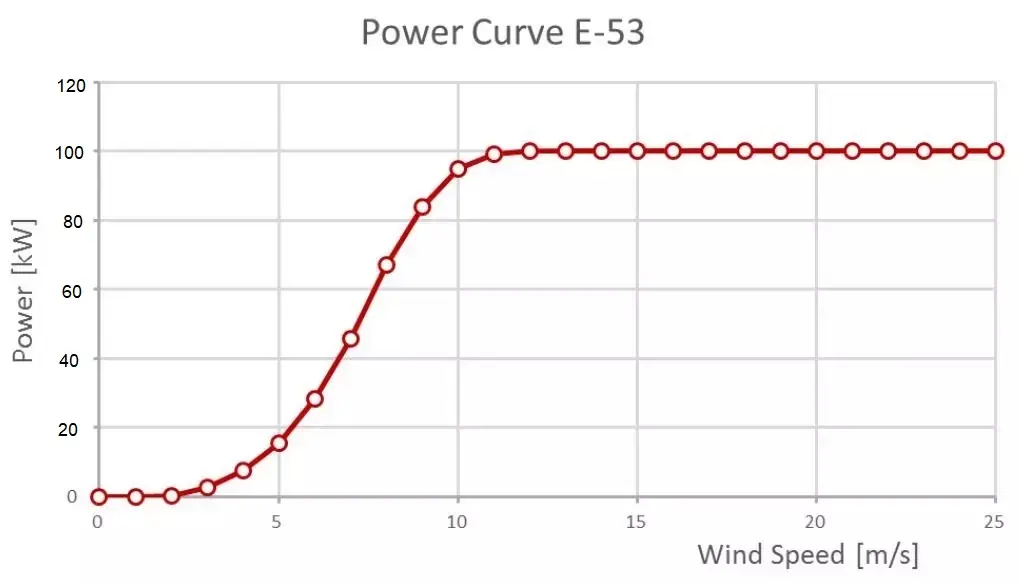

100kw wind turbine curve

When the wind speed reaches 11m/s, it can generate 100kW of power.

But the wind speed is not 11m/s all the time, so we calculate the average wind speed.

With an average wind speed of 5m/s, a 100kw wind turbine can generate 600kwh per day.

What should I do if the wind speed is not enough?

You may consider using a 100kw wind-solar hybrid system

What's the price of a 100kW wind turbine?

100kW wind turbines cost US$49,900. (valid for 30 days).

Note: When confirming your order, please contact our sales team to get the latest price.

How big are 100kW wind turbines?

How to install wind turbine in energy system?

While 100kW wind turbines aren’t massive, they require a decent amount of space, considering two main factors:

1. Rotor diameter: This is the size of the circle swept by the blades when spinning. 100kW turbines have diameters of 20 to 25 meters (66 to 82 feet). Imagine a circle that covers the ground wide – that’s the minimum horizontal space needed for safe operation.

2. Tower height: To capture stronger winds, the turbine needs to be placed high up. 100kW turbines typically sit on towers ranging from 38 to 45 meters (125 to 148 feet) tall. This adds to the vertical space requirement.

Therefore, the total footprint of a 100kW wind generator can vary depending on the specific model.

However, it’s generally within a circle of 20-25 meters radius and a height of 38-45 meters from the tower base to the blade tip.

Here’s some additional perspective:

Football fields are 100 meters (110 yards) long and 80 meters (87 yards) wide.
There’s no way a 100kW wind generator will cover an entire football field, but it won’t take up most of the space either.

Remember, these are just general guidelines. Always consult with our professionals to determine the exact space requirements for a specific 100kW turbine model and your intended location.

They will consider factors like wind patterns, zoning restrictions, and safety clearances to ensure proper placement.

For details on how to install a 100kW wind generator, read on.

How are your wind turbines produced?

Please watch the video below.

Play Video

Do 100kW wind turbines make a lot of noise?

The 100kW wind turbine noise level is about 45 decibels, so it does not affect your daily life or sleep.

Maybe the language is too pale. You can watch the video below and listen to the actual sound:

How Noisy Are Wind Turbines?-Wind Energy
Play Video about How Noisy Are Wind Turbines?-Wind Energy

Can I use my one wind turbine directly?

Wind turbines are the main body of power generation and require current conversion and transmission through wind controllers, inverters, batteries, etc.

Moreover, wind, like solar energy, has intermittent windlessness. Once there is no wind, the wind turbine cannot generate electricity.

Therefore, if your local area does not have or does not want to use a public utility grid, connecting the wind turbine to the battery is currently the most economical and convenient option.

Among them, inverters are the most critical in wind power systems. If you are interested, please check below.

Inverter parameters for a 100kW wind power system

Model

MT-100kW

Capacity(W)

100,000W

DC voltage(V)

360-380

Input voltage(V)

380V± 20%(3 phase), phase voltage 220V

Input frequency

45~65Hz

Output voltage

380/400/415V optional+ -1% for static load, 5% forfluctuant load

Output wave form

Pure sine wave

Total-harmonic- distortion

< 3% linear load, < 5%( nonlinear load)

Transfer time

Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms

Transfer Efficiency Protections

90%–95%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity

protection and low-voltage protection

Overload

Overload 125% for 10 mins, 125%-150% for 1 min. automatically resume when the load becomes normal

PVMARS’s 100kw inverter uses IGBT modules, which are more powerful than MOS tubes to control and achieve efficient power conversion. Its price will rise accordingly – (If you want to know the price of MOS tube inverters, please contact our team).

What makes it powerful?

The IGBT (Insulated Gate Bipolar Transistor) is a super-electronic switch that withstands ultra-high voltages.

The AC voltage in our homes is 220V, and the paper-thin IGBT chip can withstand 6500V.

In general, when all household appliances are turned on, the maximum current will not exceed 30A, but an IGBT chip the size of a fingernail can flow about 200A!

Is it possible to connect a 100kW wind turbine directly to a battery?

No, because the battery is DC power and the 100kW wind turbine is three-phase AC power.

The connection between them requires a wind controller to function as a DC-to-AC converter. This way, the battery can fully receive the 100kw wind turbine power.

How much battery capacity does a 100kW wind turbine have?

The battery capacity for a regular 100kW wind turbine system is 310kWh. The battery capacity is closely related to the duration of your electrical load.

If you need a longer backup time, contact our professional to customize a system that meets your needs.

How much does an entire 100kW wind power system cost?

The price of a 100kW wind power plant is US$117,107 – the battery is gel. (valid for 30 days).

If you need lithium battery design, please send an email to [email protected] for consultation.

Wind controller with dump load

MPPT intelligent control

100kW wind controller
360Vdc intelligent control Lightning protection.

Wind turbine current limiting, Wind turbine automatic brake, and manual brake.

Wind controller with dump load

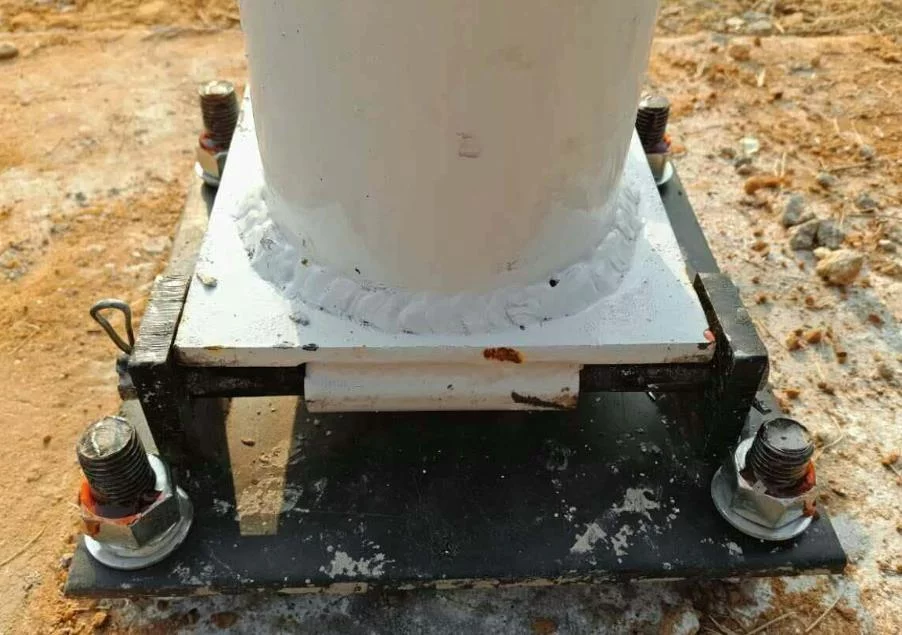

Stand alone tower

We suggest a 18m or 20m height tower for a 100kw wind turbine.

It helps fasten the wind generator to a safe altitude.
Use steel material with rust prevention.
Easy to install

Stand alone tower for windmill

100kW wind turbine packing details

Before each loading and shipment, our factory has special personnel to check the QC inspection of qualified products.

They distinguish and mark the area to place, and ensure the shipment quantity, model, and customer name are accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

Wind turbine packing
Solar panel packing

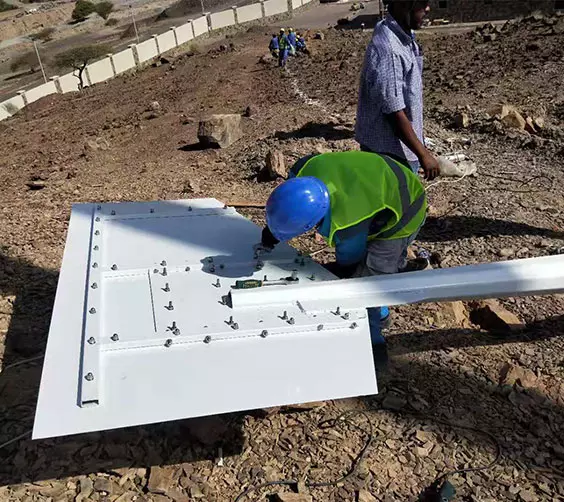

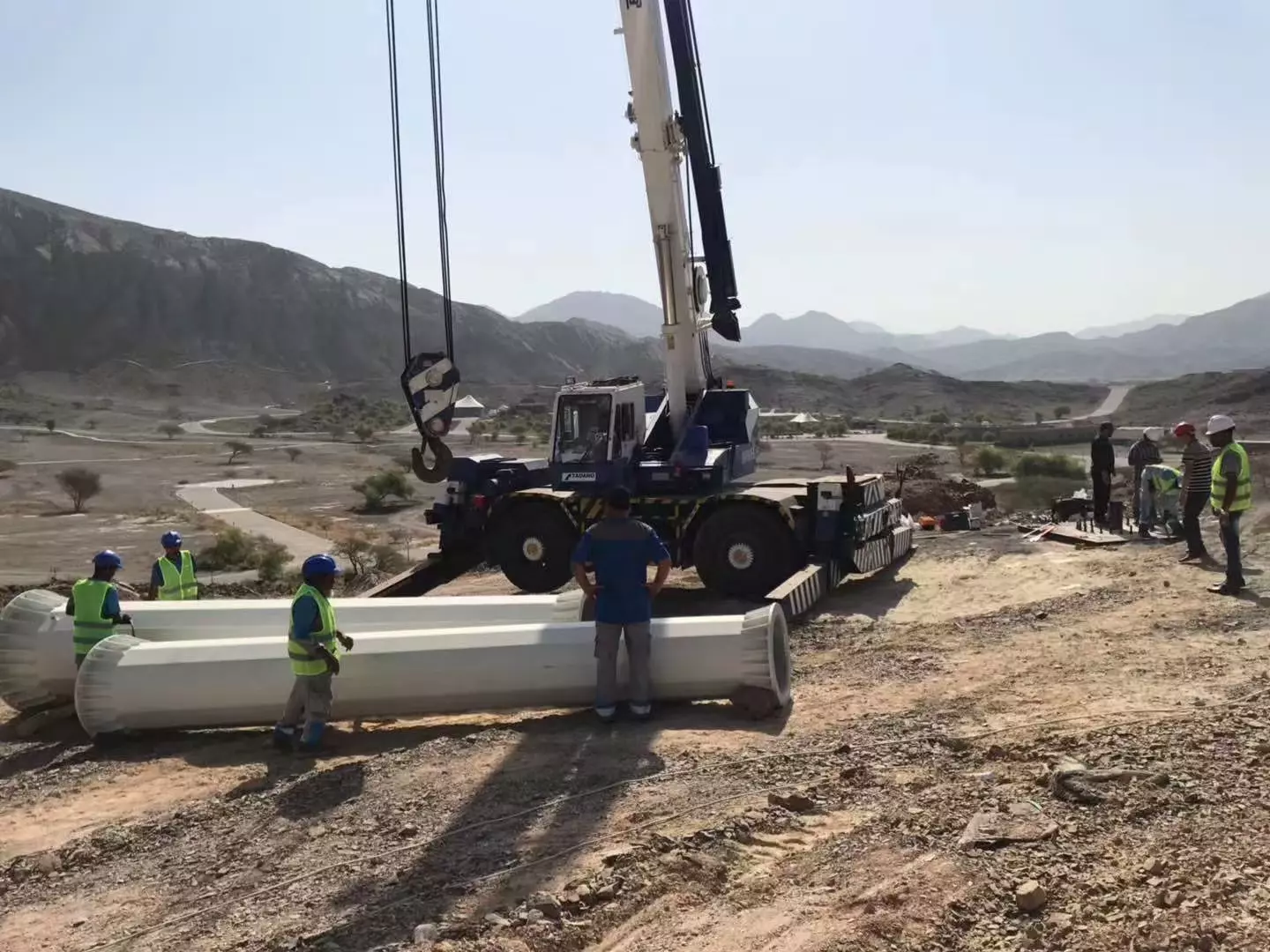

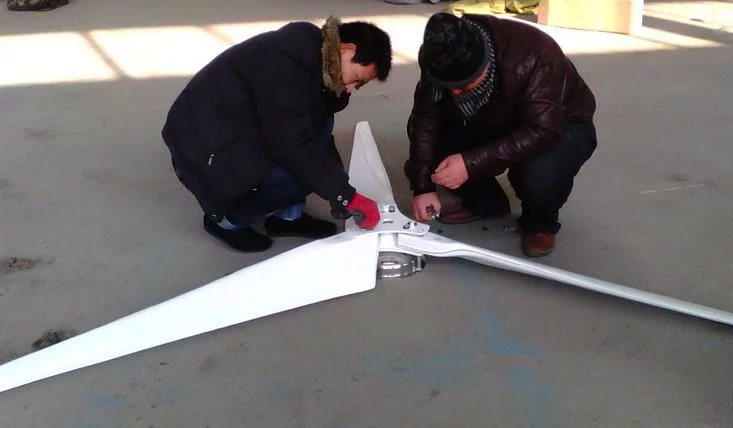

How do you install a 100kW wind turbine?

Horizontal axis wind turbines are composed of wind blades, wheel housings, nacelles, tail fins, etc.

This 100kW wind turbine from PVMARS will be assembled and tested in the production factory.

You only need to set it up according to the installation manual provided by PVMars to achieve off-grid living.

If you want someone to help you install, PVMars has an overseas installation team. We have been to Turkey to install 5 sets of 30kw wind power systems.

Please fill in the form for the required installation service.

Please enable JavaScript in your browser to complete this form.
10 pm or Saturday 2 pm or when?
Installation Location
Click or drag a file to this area to upload.

Why choose PVMARS to provide a 100kw wind power plant?

Global authoritative certification

PVMARS products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.
