10kW Wind Turbine – Horizontal Axis

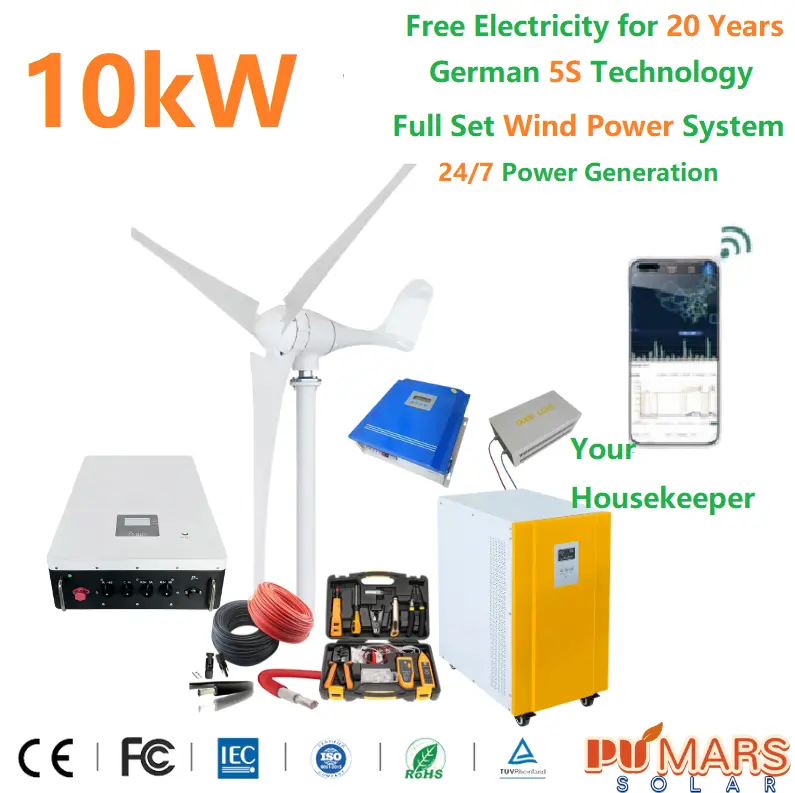

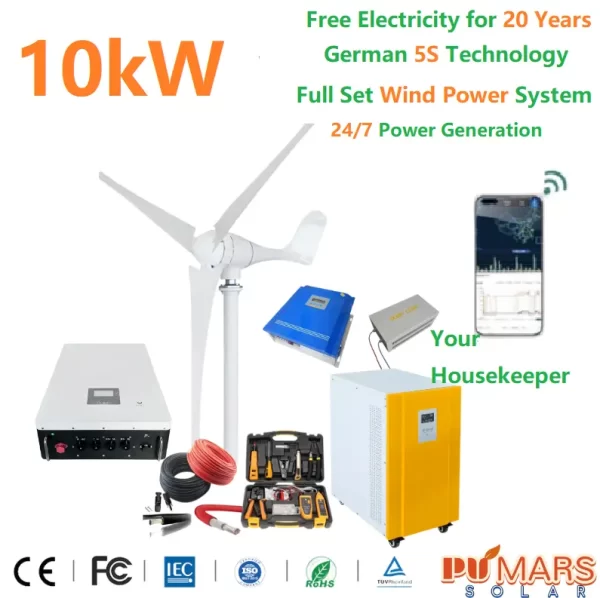

PVMars provides a world-class 10kW wind turbine with a controller, IGBT inverter, and batteries. Full set 10kW wind power plant for home, hospital, and farm.

Home and Commercial wind power storage solution

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: 10kW horizontal wind turbine

Price Term: EXW

Can work with solar/battery/grid or generator backup

Introduction of 10kW Wind Turbine

The complete system of a single 10kw wind turbine + controller + inverter + battery can help you achieve energy independence.

Get rid of diesel generators or utility grids. Provide free, green, and reliable energy for your life.

The 10kW wind turbine is ideal for providing 24-hour power to your home, farm, hotel, resort, and more.

You can also power all daily or special electrical equipment: air conditioners, TVs, microwaves, refrigerators, production equipment, precision instruments, and any equipment that requires electricity.

To learn more about the specific details and prices of each part of the 10kW wind turbine, please continue browsing.

Component details of a 10kW wind turbine

Horizontal axis wind turbine disassembly diagram

We can divide it into many types of wind turbines based on different axial directions. (Click on the orange font for more information).

PVMARS is committed to customers receiving complete products. If there are any missing parts or quality issues, you can check our after-sales policy and enter your money protection mechanism.

Tips: 10kW = 10 kilowatts = 10000 watts

Features and advantages of a 10kW wind turbine:

1) PVMARS’s horizontal axis wind turbines have tail rudders. These rudders can automatically adjust the windward angle to 360°, without fear of wind direction changes. Increase power generation.

2) The wind blades are reinforced with fiberglass, which can withstand violent storms of more than 40m/s.

3) Using a three-phase AC permanent magnet synchronous generator, it can work safely in a cold environment of -40°C.

PVMARS can add color to wind blades according to your local environment, reducing bird deaths.

Why can adding color protect the local ecological environment? Click on the orange font to learn 8 cool facts about wind turbines

PVMARS solar energy storage blog

What size of a 10kW wind turbine?

More specific parameters are as follows:

Model

MF-10000

Rated power

10000W

Starting wind speed

2.5m/s

Rated voltage

120V/220V/240V/380V

Rated wind speed

11m/s

Security wind speed

≤50m/s

Rated DC voltage

96V-240V

Number of blades

3

Wind blade diameter

6.5m

Control mode

Electromagnetic brakes

Generator type

Three-phase AC permanent magnet synchronous generator

Fuselage material

Reinforced die-cast aluminum+steel

Temperature

-40℃ ~ 80℃

Service life/Degree of protection

≥ 20 years / IP54

Packing material

Foam and plywood

N.W&G.W(kg)

215kg/245kg

Packing size

90*52*45cm + 230*30*38cm +

48*48*50cm

10kw wind turbine is packaged in these 3 parts

– wind blades, generator and other accessories

How much energy does a 10 kw wind turbine produce?

From the power curve table below, we know that the wind turbine’s energy changes as the wind speed changes.

10kW wind turbine working curve

When the wind speed reaches 8m/s, it can generate 10kW of power.

But the wind speed is not 8m/s all the time, so we calculate the average wind speed.

With an average wind speed of 5m/s, a 10kw wind turbine can generate 60kwh per day.

What should I do if the wind speed is not enough?

You may consider using a 10kw wind-solar hybrid system

How much does a 10kW wind turbine cost?

10kW wind turbines cost US$4,425. (valid for 30 days).

Note: When confirming your order, please contact our sales team to get the latest price.

How are wind turbines produced?

Please watch the video below.

Play Video

Is a 10kW wind turbine loud?

The noise level is about 45 decibels, so it does not affect your daily life or sleep.

Maybe the language is too pale. You can watch the video below and listen to the actual sound:

Wind turbine noise level
Play Video about Wind turbine noise level

I only have one wind turbine, can I use it directly?

Wind turbines are the main body of power generation and require current conversion and transmission through wind controllers, inverters, batteries, etc.

Moreover, wind, like solar energy, has intermittent windlessness. Once there is no wind, the wind turbine cannot generate electricity.

Therefore, if your local area does not have or does not want to use a public utility grid, connecting the wind turbine to the battery is currently the most economical and convenient option.

Among them, inverters are the most critical in wind power systems. If you are interested, please check below.

Inverter parameters for a 10kW wind power system

Model

MT-10kW

Capacity(W)

10,000W

DC voltage(V)

96-240

Input voltage(V)

160-265VAC / 90-127VAC

Input frequency

45~65Hz

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤3%

Low-voltage protection(V)

78

Over voltage protection(V)

120

Recharge current

20-30A

Transfer Efficiency Protections

90%–95%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity

protection and low-voltage protection

Overload

Overload 125% for 10 mins, 125%-150% for 1 min. automatically resume when the load becomes normal

PVMARS’s 10kw inverter uses IGBT modules, which are more powerful than MOS tubes to control and achieve efficient power conversion. Its price will rise accordingly – (If you want to know the price of MOS tube inverters, please contact our team).

What makes it powerful?

The IGBT (Insulated Gate Bipolar Transistor) is a super-electronic switch that withstands ultra-high voltages.

The AC voltage in our homes is 220V, and the paper-thin IGBT chip can withstand 6500V.

In general, when all household appliances are turned on, the maximum current will not exceed 30A, but an IGBT chip the size of a fingernail can flow about 200A!

Can a 10kW wind turbine be connected directly to a battery?

No, because the battery is DC power and the 10kW wind turbine is three-phase AC power.

The connection between them requires a wind controller to function as a DC-to-AC converter. This way, the battery can fully receive the 10kw wind turbine power.

PVMARS provides gel batteries and lithium batteries to choose from:

What is the battery capacity of a 10kW wind turbine?

The battery capacity for a regular 10kW wind turbine system is 19.2kWh. The battery capacity is closely related to the duration of your electrical load.

If you need a longer backup time, contact our professional to customize a system that meets your needs.

How much does a complete 10kW wind system cost?

The price of a 10kW wind power plant is US$11,357 – the battery is gel. (valid for 30 days).

If you need lithium battery design, please send an email to [email protected] for consultation.

Wind controller with dump load

MPPT intelligent control

10kW wind controller
96Vdc intelligent control Lightning protection.

Wind turbine current limiting, Wind turbine automatic brake, and manual brake.

Wind controller with dump load

Guy cable pole/Stand alone tower optional

We suggest a 9m or 12m height tower for a 10kw wind turbine.

It helps fasten the wind generator in a safe altitude.
Use steel material with rust prevention.
Easy to install

Guy cable poleStand alone tower for windmill

Packing

Before each loading and shipment, our factory has special personnel to check QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

Wind turbine packing
Solar panel packing

How to install a 10kW wind turbine?

10kw wind turbine system drawing

Horizontal axis wind turbines are composed of wind blades, wheel housings, nacelles, tail fins, etc.

This 10kW wind turbine from PVMARS will be assembled and tested in the production factory.

You only need to set it up according to the installation manual provided by us to achieve off-grid living.

We also provide overseas installation services. Please fill in the form if required.

Please enable JavaScript in your browser to complete this form.
10 pm or Saturday 2 pm or when?
Installation Location
Click or drag a file to this area to upload.

Why choose PVMARS to provide a 10kw wind power plant?

Global authoritative certification

PVMARS products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.



How do we warranty your renewable energy product?

Safety reminder for wind system

With PVMARS IoT, through your phone or computer view real-time performance data of your energy system, such as solar panel and wind power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your hybrid system.

At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!
