1kVA 1kW Single Phase Solar Kit Price – 2024

Flexible, 24/7 continuous power design and efficient 1kVA 1kW single phase solar kit. Lithium-ion battery off-grid solar power generation system suitable for homes, offices, and shop.

Price Term: EXW

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: 1000W hybrid solar system

Home and Commercial solar power storage solution

Can work with wind/battery/grid or generator backup

Which parts make up a 1kW single-phase solar kit?

The following configurations make up a complete 1kva 1kW single phase solar kit:






Solar Panel

Mono 350W TOPCon

3 pieces or Customized


PV combiner

H4T 24V

1 set


Hybrid Inverter

1000W single-phase hybrid inverter

Inbuilt MPPT charge controller

1 set



12V150Ah gel battery or Lithium Battery optional

2 pieces


Mounting Support

Ground or Slope roof or Flat roof optional

3 pieces or Customized


Cables and others

1)1pcs 16mm2*2M battery cable,4pcs 16mm2 2M Cable
2)4mm2 PV cable 50M
3)1P 63A Battery switch and box
10 years warranty

100 meters or Customized

Optional solar mounting support, PV combiner boxes, and cables.

PVMARS provides a complete turnkey PV energy storage system solution. After we complete production, the system delivered to you can be used immediately after connections are made. You don’t need additional accessories to benefit from it.

The premise of providing a complete 1kW single-phase solar kit solution requires: You only need to submit load (electrical equipment) information, pictures/drawings of the installation location, output voltage range, and other data.

PVMARS’s engineering team can provide a complete solar system (off-grid or mini-grid solution).

It is recommended that you download this load table, compare it, and fill in the corresponding information: (This form is not mandatory. If there is no electrical equipment in use, please inform PVMARS of your budget and we will configure it according to your).

How much does a 1kW single phase solar kit cost?

1kW single phase solar kit prices US$1,086 – Gel battery design. (Valid for 30 days).

Note: If you need a quote for a lithium (LFP) battery design, please contact [email protected] to obtain it.

Tips: kVA ≠ kW, 1kVA = 0.75kW or 0.8kW
If you actually choose 1kW, then you need to pay attention if other suppliers quote 1kVA, because the power difference is a full 200W, which means you will not be able to use more electrical equipment.

Don’t choose them just because the price seems lower. You need to understand more about the other party through communication before making a decision.

Avoid purchasing unsuitable products, resulting in repeated purchases and increased after-sales costs.

PVMars provides a 1kW inverter of full power, not 1kVA. It is a solar kit that can truly start your entire load.

1kW Single Phase Solar Kit Description

Solar panel

Strong anti-cracking, heat spot protection

Topcon solar panels packing

PVMARS provides monocrystalline and polycrystalline solar panels from 50w-600w.

Among them, monocrystalline N-type TOPCon solar panels are currently a popular option because their high conversion efficiency and low degradation rate make them more efficient than P-type solar panels.

How much electricity can a 1kW single phase solar kit produce?

Based on the average lighting time of about 4-6 hours, a 1kW single-phase solar kit can generate 4.2kWh-6.3kWh per day, about 189kWh per month, and about 2,268kWh per year.

Solar panels generate power related to the amount of sunshine in your local area. Click on this article to learn more.

So, what’s the maximum number of rooms a 1kW solar kit can power?

An average household of one person can generally use 2kwh of electricity per day.

Assuming a 1kW single-phase solar kit generates 6.3kwh/day of power, that’s enough to power 3 rooms.

Every home’s electricity usage is very different, so when choosing a solar system it’s imperative to contact a professional solar team to get a solar system and quote that’s right for you.

Solar panel’ data sheet under STC Condition

Maximum power at STC(Pmax)

350 Watts

Optimum operating voltage (Vmp)


Optimum operating current(Imp)


Open-circuit voltage(Voc)


Short-circuit current(Isc)


Module efficiency(%)

23% (It is expected to reach 26% in 2027)

STC: Irradiance 1000W/㎡,Module temperature 25°℃,AM=1.5

NMOT:Irradiance 800W/㎡,wind speed:1m/s,Module temperature 20℃

Tolerance of Pm:0~+5W

This is laboratory data and may deviate from actual use.

Mechanical Parameters


N Type Mono-crystalline silicon solar cells

Cell Size


Cell Quantity


Dimension of module




Junction Box

IP68,with Bypass Diodes

Output Cables


Operating temperature

-40℃ to 85℃

Specifications are subject to change without further notification

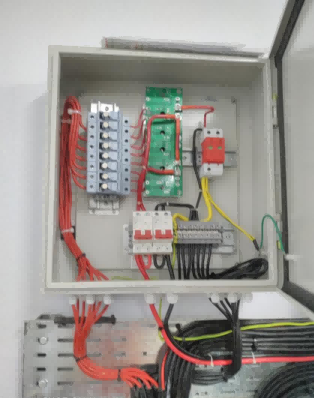

PV combiner/DC lightning protection

Multiple solar panel string inputs
PV array wiring simplified, controller protection,
Wide range of DC input voltages, max circuit voltage: 800V

Reliable thunderstorm & surge protection

BESS of PV combiner Palm oil plantations--150kw solar controller with PV combinerBESS of PV combiner debugging

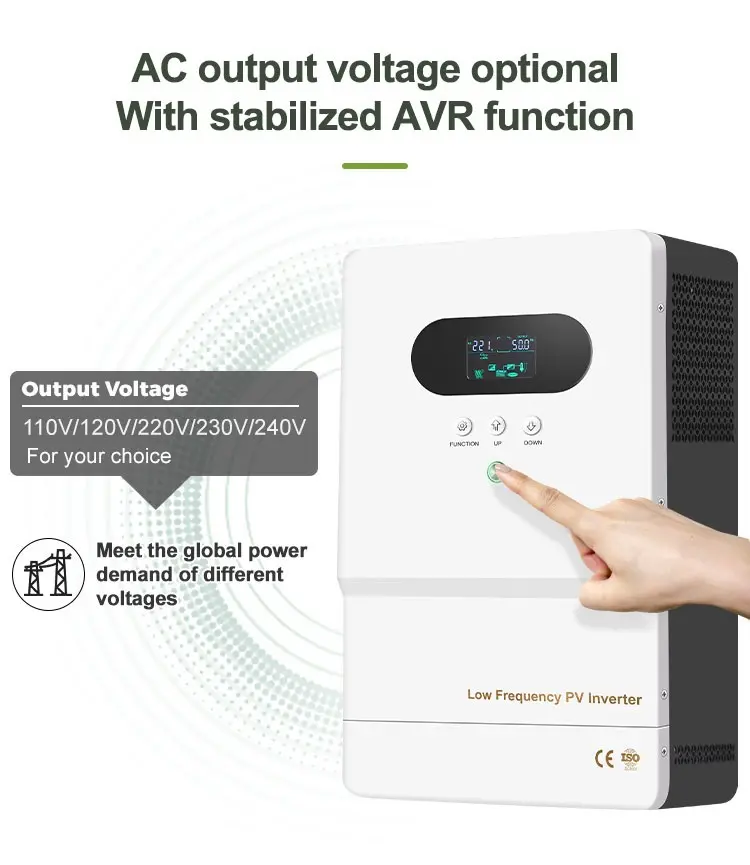

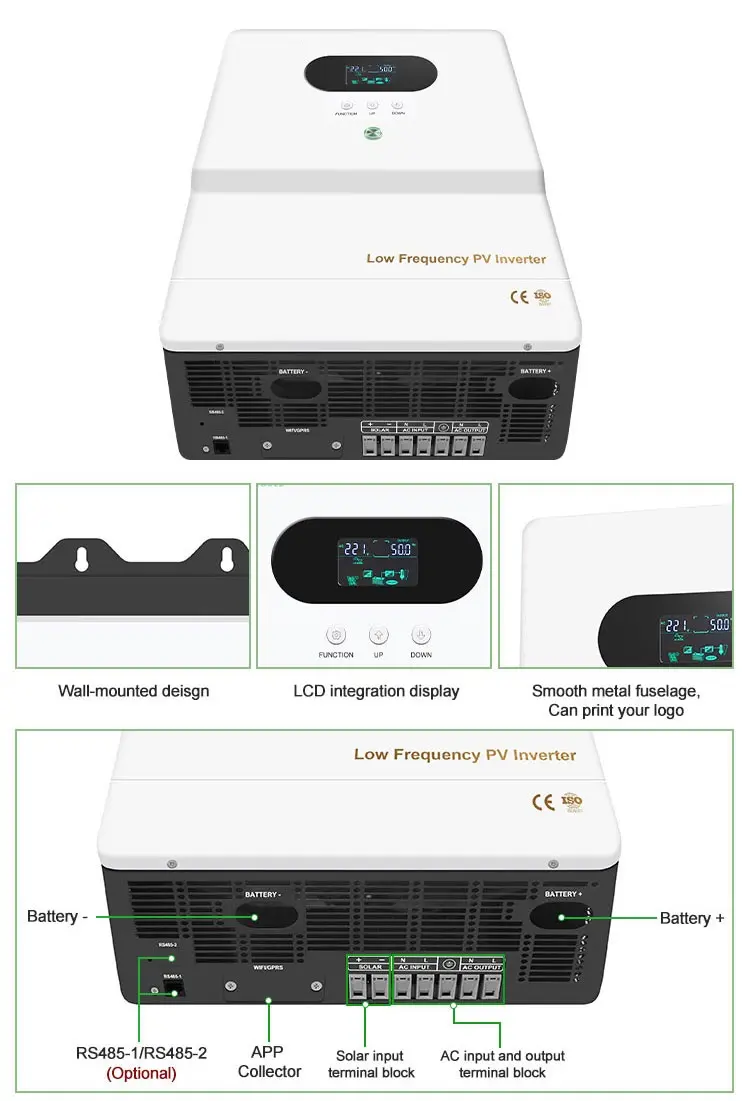

1kW wall-mounted hybrid inverter

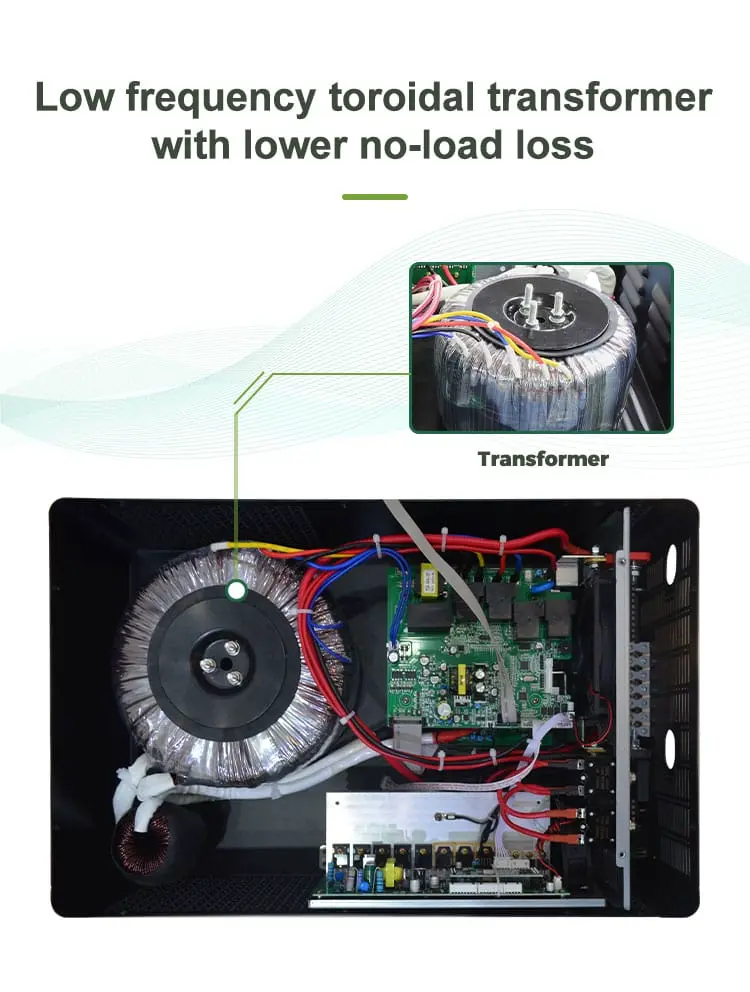

It has a built-in advanced AVR (Automatic Voltage Regulator) and toroidal transformer.
The toroidal transformer can also be called an isolation transformer (click on the orange font for more information).

AVR and toroidal transformers protect your electrical and electronic equipment (such as air conditioners, refrigerators, TVs, etc.) from possible damage caused by voltage surge fluctuations, overvoltage, and under-voltage conditions.

In layman’s terms, a sudden power outage in the public utility grid will somewhat affect the service life of your electrical equipment.

By using an inverter with an AVR and a toroidal transformer, even if you encounter an emergency power outage, you can effectively isolate these voltage fluctuations and extend the service life of your appliances.

Furthermore, AVRs and toroidal transformers are not limited to home/office equipment/industrial production equipment.

Even ships with internal power supply in the form of diesel generators can ensure the safety of electrical equipment through AVRs and toroidal transformers.

PVMars’ 1kW inverter combines advanced AVR and toroidal transformer to flexibly adjust the voltage boost and step-down for your various electrical equipment.

It is very suitable for families, primary schools, hotels, and precision instruments.
This powerful inverter is worth buying. You deserve better!

It is worth mentioning that this inverter from PVMARS has a built-in MPPT charge controller.

You do not need to connect an additional solar controller, so the solar panels can fully charge the battery directly through this inverter. The appearance is white, simple and fashionable, small in size and light in weight.

Simplifying the installation process of the entire 1000W solar energy storage system. For information on how to install the entire system, please continue to read below.

10kw low-frequency inverter with MPPT controller inbuilt
How do single-phase 220v and three-phase 380v AC output voltages differ?

For most 220VAC appliances, the voltage is single-phase. Such as air conditioners, fan, light, TV, and so on.

BTW, PVMars can design double/dual voltage output, which means L1+N =110V – L2+N=110V – L1+L2=220V.

If you need, please contact [email protected] to get the price of dual output inverter

Split phase capable/dual output voltage

For most 380VAC-415VAC appliances, the voltage is three-phase. Such as motors, power pumps, central air conditioning, industrial equipment, and so on.

Please note that single-phase solar systems cannot carry three-phase loads.

PVMars single phase 220v-240vac

Single phase: 110V/120V/220V/230V/240V ±5%

PVMars three phase 380v-415vac

Three phase: 380Vac/400Vac±10%(customized 190Vac/200VAC)

1000W solar battery

The gel battery of this 1kw solar kit is designed with 2pcs 12v150ah batteries with a total capacity of 3.6kWh.

If your electrical equipment requires 1kwh of electricity at night, a 1kw single-phase solar kit can continuously supply power for about 4 hours.

PVMars can design battery capacity based on your actual loads and usage hours.

Capacity (25℃)







Terminal type


Internal resistance  (Fully charged,25℃)

Approx.4m Ω

Capacity affected by temperature (10HR)









Self-discharge (25℃)

3 months

Remaining Capacity:91%

6 months

Remaining Capacity:82%

12 months

Remaining Capacity:65%

Nominal operating temperature


Operating temperature range


-15℃~50℃(5℉~ 122℉)


-10℃~50℃(14℉~ 122℉)


-20℃~50℃(-4℉~ 122℉)

Float charging voltage(25℃)

13.50 to 13.80V Temperature compensation: -18mV/℃

Cyclic charging voltage(25℃)

14.50 to 15.00V Temperature compensation: -30mV/℃

Maximum charging current


Maximum discharge current

1200A(5 sec.)

Designed floating life(20℃)


In addition, PVMARS also offers lithium battery options. If your installation location is limited and you want more power, our small-volume 3.6kWh lithium battery is also an excellent choice.

Please contact our sales team for specific prices.

Ground support/PV bracket

Full set for Slope, Flat roof or Ground land optional

Including complete fittings

Wind load: 55m/s, snow load:1.5kn/m2

Structure: Anodized aluminum + stainless steel

Customized as per user’s requirement

Solar Panel Rack/Bracket

Ancillary equipment

Junction boxes, cabling, lighting, sensors, breakers

1) 16mm2*35CM, 16mm2*2M battery cable,20M 16mm2 cable with battery terminal.

2) 4mm2 PV cable.

3) full set of install tools, terminals and MC4 and 2P/4P switch box

Solar Cables and Accessory

1kW Single Phase Solar Kit Packing Details

Before each loading and shipment, our factory has special personnel to check QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

Solar panel packing
Solar panel packing
BESS full container ship out with UN3536
BESS full container ship out with UN3536

Why choose PVMARS?

Manufacturer of solar power clean energy

PVMARS solar Factory -100% Lab


In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.


Global authoritative certification

PVMARS solar products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.

PVMARS Solar Energy Storage Factory Certificate Of Authority
Real-time remote monitoring of the safe operation of solar energy system

Safety reminder for solar system

With PVMARS solar IoT, through your phone or computer view real-time performance data of your solar system, such as solar panel power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your solar system.

At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!


How to find a 1000W single-phase solar kit installer?

PVMARS provide a full set energy storage system

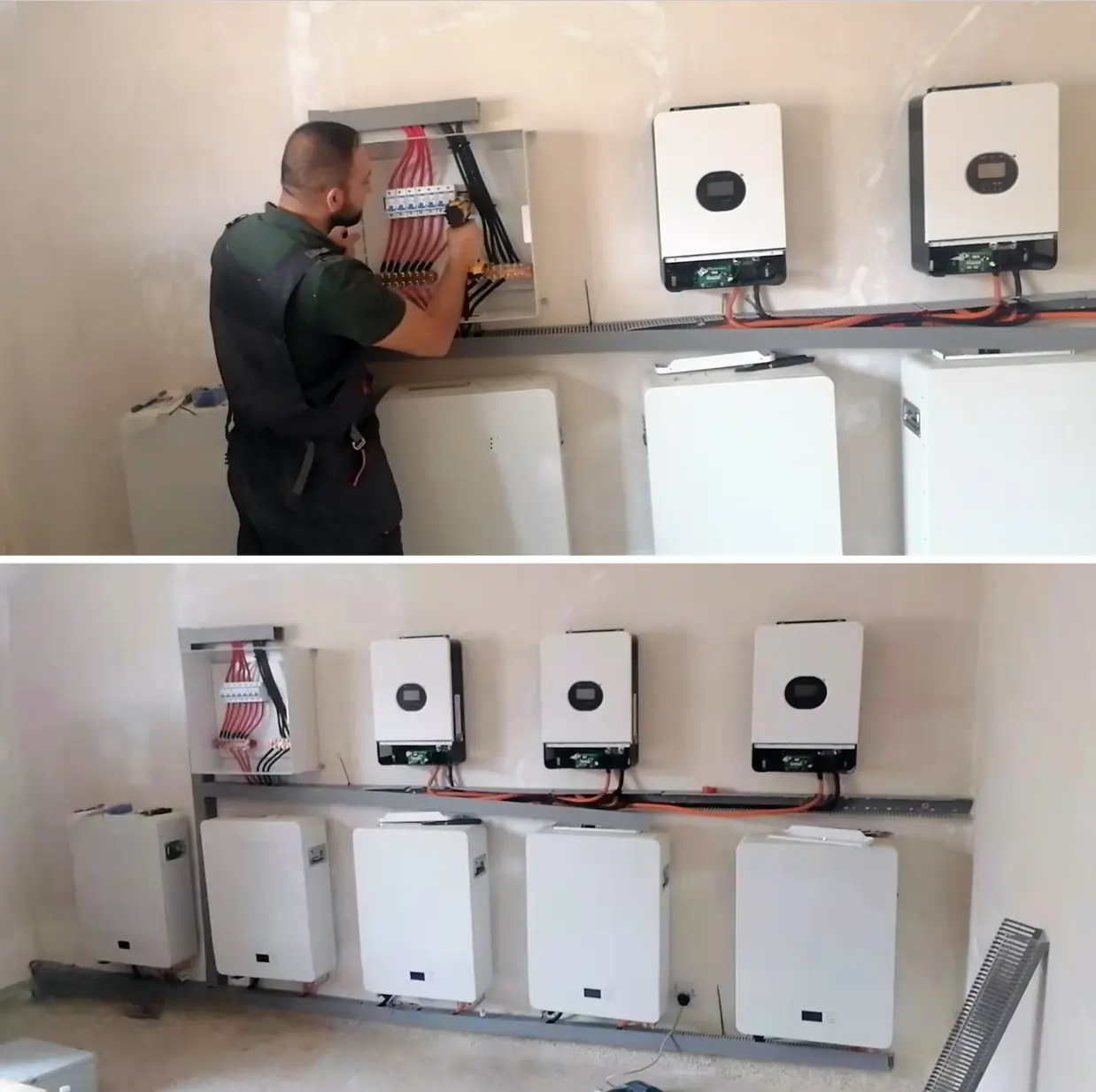

PVMars solar and wind power system case

Mr. Li, the founder of PVMARS Solar, has been to more than 32 countries for field surveys and solar energy storage system installation. He has trained 5 core solar system and wind turbine system installation experts, as well as a number of overseas installers.

If you need our overseas installation service, the engineer will arrive at the installation site within 10 days after the goods arrive at the port.

In addition, for users who purchase our photovoltaic energy products, wind turbine products, solar all in one street led light products, and solar air conditioning products, we will provide the paper version of installation instructions and electrical drawings with the shipment of goods, as well as the electronic version online.

For the needs of different users, to ensure the correct installation of the product, your dedicated engineers have been waiting online, at any time to video remote communication with you, patiently guide you step by step to complete the installation, and debug the operation of the machine etc. Ensure that you are protected from all hidden dangers.

By partnering with experienced PVMARS Solar, you can be confident that your installation project will be successful. This will meet your renewable energy needs for 25 years and more.
