1kVA 1kW Wind Turbine Cost – Horizontal Axis

PVMars provides a world-class 1kW wind turbine with a controller, IGBT inverter, and batteries. Full set 1000W wind plant for home, villa, or farm.

Price Term: EXW

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: 1kW horizontal wind turbine

Home and Commercial wind power storage solution

Can work with solar/battery/led light/grid or generator backup

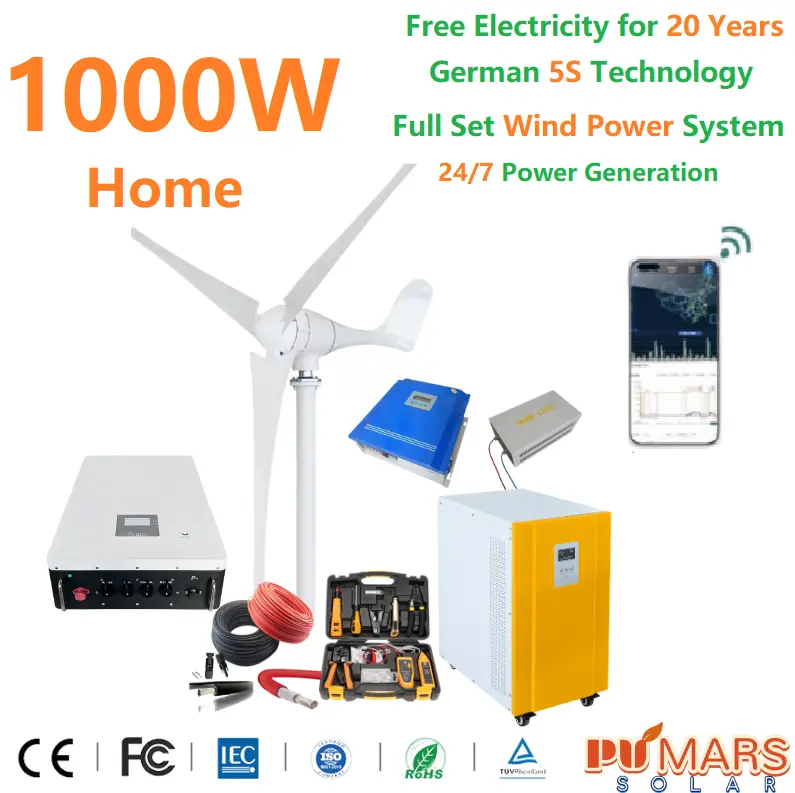

Here's what a 1kW wind turbine looks like

Horizontal axis wind turbine disassembly diagram

We can divide it into many types of wind turbines based on different axial directions. (Click on the orange font for more information).

PVMARS is committed to customers receiving complete products. If there are any missing parts or quality issues, you can check our after-sales policy and enter your money protection mechanism.

Tips: 1kW = 1kilowatts = 1000 watts

1kW wind turbine features and advantages:

1) PVMARS’s horizontal axis wind turbines have tail rudders. These rudders can automatically adjust the windward angle to 360°, without fear of wind direction changes. Increase power generation.

2) The wind blades are reinforced with fiberglass, which can withstand violent storms of more than 40m/s.

3) Using a three-phase AC permanent magnet synchronous generator, it can work safely in a cold environment of -40°C.

PVMARS can add color to wind blades according to your local environment, reducing bird deaths.

Why can adding color protect the local ecological environment? Click on the orange font to learn 8 cool facts about wind turbines

300w-100kw wind turbine produce from PVMars company

What size of a 1kW wind turbine?

More specific parameters are as follows:



Rated power


Starting wind speed


Rated voltage


Rated wind speed


Security wind speed


Rated DC voltage


Number of blades


Wind blade diameter


Control mode

Electromagnetic brakes

Generator type

Three-phase AC permanent magnet synchronous generator

Fuselage material

Reinforced die-cast aluminum + Reinforced nylon fiber


-40℃ ~ 80℃

Service life/Degree of protection

≥ 20 years / IP54

Packing material

Foam and plywood



Packing size


How much power does a 1kW wind turbine produce?

From the power curve table below, we know that the wind turbine’s energy changes as the wind speed changes.

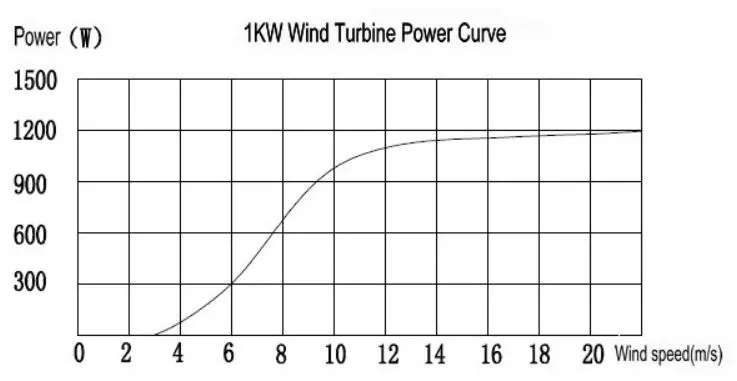

1kW wind turbine working curve

When the wind speed reaches 11m/s, it can generate 1kW of power.

But the wind speed is not 11m/s all the time, so we calculate the average wind speed.

With an average wind speed of 5m/s, a 1kw wind turbine can generate 6kwh per day.

What should I do if the wind speed is not enough?

You may consider using a 1kw wind-solar hybrid system

What's the price of a 1kW wind turbine?

1kW wind turbines cost US$321. (valid for 30 days).

Note: When confirming your order, please contact our sales team to get the latest price.

Do 1kW wind turbines take up a lot of space?

Small wind turbine 1kw-3kw models

While 1kW wind turbines aren’t massive, they require a decent amount of space, considering two main factors:

1. Rotor diameter: This is the size of the circle swept by the blades when spinning. 1kW turbines have diameters of 3 to 4 meters (11 to 13 feet). Imagine a circle that covers the ground wide – that’s the minimum horizontal space needed for safe operation.

2. Tower height: To capture stronger winds, the turbine needs to be placed high up. 1kW turbines typically sit on towers ranging from 8 to 10 meters (29 to 32 feet) tall. This adds to the vertical space requirement.

Therefore, the total footprint of a 1kW wind turbine can vary depending on the specific model.

However, it’s generally within a circle of 3-4 meters radius and a height of 8-10 meters from the tower base to the blade tip.

Here’s some additional perspective:

Football fields are 91 meters (100 yards) long and 49 meters (53.3 yards) wide.
There’s no way a 1kW wind generator will cover an entire football field, but it won’t take up most of the space either.

A typical single-family home has a lot size of around 600-1000 square meters (6,500-10,800 square feet). A 1kW turbine could potentially fit on such a lot, depending on the layout and zoning regulations.

Remember, these are just general guidelines. Always consult with our professionals to determine the exact space requirements for a specific 1kW turbine model and your intended location.

They will consider factors like wind patterns, zoning restrictions, and safety clearances to ensure proper placement.

For details on how to install a 1kW wind generator, read on.

How are your wind turbines produced?

Please watch the video below.

Play Video

Do 1kW wind turbines make a lot of noise?

The 1kW wind turbine noise level is about 45 decibels, so it does not affect your daily life or sleep.

Maybe the language is too pale. You can watch the video below and listen to the actual sound:

How Noisy Are Wind Energy Generation?
Play Video about How Noisy Are Wind Energy Generation?

Can I use my one wind turbine directly?

Wind turbines are the main body of power generation and require current conversion and transmission through wind controllers, inverters, batteries, etc.

Moreover, wind, like solar energy, has intermittent windlessness. Once there is no wind, the wind turbine cannot generate electricity.

Therefore, if your local area does not have or does not want to use a public utility grid, connecting the wind turbine to the battery is currently the most economical and convenient option.

Among them, inverters are the most critical in wind power systems. If you are interested, please check below.

Inverter parameters for a 1kW wind power system





DC voltage(V)


Input voltage(V)

160-265VAC / 90-127VAC

Input frequency


Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave



Surge rating (20ms)


Capable of starting electric motor


Recharge current

0-35A (Set by yourself)

Transfer Efficiency Protections



Protection against short-circuit, overload, high-voltage, reverse polarity

protection and low-voltage protection


Overload 105% for 10 mins, 110%-115% for 1 min. automatically resume when the load becomes normal

Pure Sine Inverter 2000W 2kW Hybrid MPPT Charger Inbuilt Price

The inverter is the heart of the system.

By converting wind and solar energy into direct current (DC), a hybrid controller converts them into electricity.

To supply our house appliances with electricity, we need an inverter to convert DC power into AC power.

You will be able to live a more comfortable off-grid life if you select a good inverter.

Note: The output voltage designed for the 1kW inverter on this page is single-phase 110vac-220vac-240vac.

If you need dual voltage 110v/220v, please feel free to leave a message about the required output voltage and email [email protected] to get a quote for customized output.

Is it possible to connect a 1kW wind turbine directly to a battery?

No, because the battery is DC power and the 1kW wind turbine is three-phase AC power.

The connection between them requires a wind controller to function as a DC-to-AC converter. This way, the battery can fully receive the 1kw wind turbine power.

PVMARS provides gel batteries and lithium batteries.

How much battery capacity does a 1kW wind turbine have?

The battery capacity for a regular 1kW wind turbine system is 4kWh. The battery capacity is closely related to the duration of your electrical load.

If you need a longer backup time, contact our professional to customize a system that meets your needs.

How much does an entire 1kW wind power system cost?

The price of a 1kW wind power plant is US$1,327 – the battery is gel. (valid for 30 days).

If you need lithium battery design, please send an email to [email protected] for consultation.

Wind controller with dump load

MPPT intelligent control

1kW wind controller
24Vdc-48Vdc intelligent control Lightning protection.

Wind turbine current limiting, Wind turbine automatic brake, and manual brake.

Wind controller with dump load

Guy cable pole

We suggest a 6m height tower for a 1kw wind turbine.

It helps fasten the wind generator to a safe altitude.
Use steel material with rust prevention.
Easy to install

Guy cable pole

1kW wind turbine packing details

Before each loading and shipment, our factory has special personnel to check the QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

Wind turbine packing
Solar panel packing

How do you install a 1kW wind turbine?

Horizontal axis wind turbines are composed of wind blades, wheel housings, nacelles, tail fins, etc.

This 1kW wind turbine from PVMARS will be assembled and tested in the production factory.

You only need to set it up according to the installation manual provided by us to achieve off-grid living.

We also provide overseas installation services. Please fill in the form if required.
