0 Electricity bill | 0 Noise with Energy Storage System

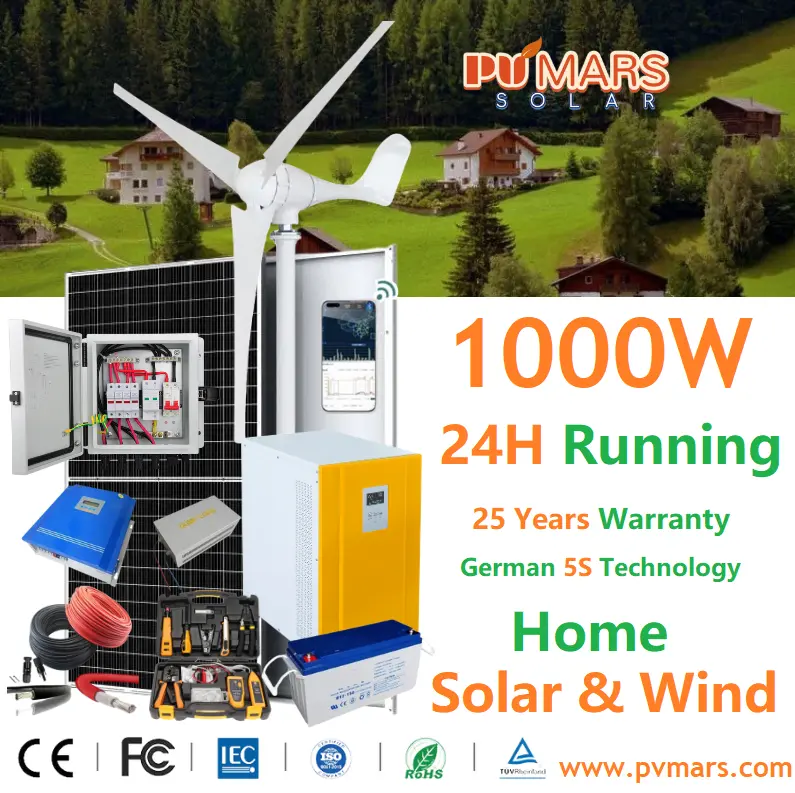

Hybrid 1kW Solar Wind Generator

PVMARS’ high-quality all-in-one 1kw solar wind generator continues to generate electricity 24/7, 1000w wind solar hybrid system saves you 100% on electricity bills.

Residential or commercial solar wind turbine solution

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: 1000W solar wind generator hybrid system

Price Term: EXW

Can work with battery/city grid or diesel generator backup

Introduction of 1kW Solar Wind Generator

The renewable energy combination of the 1kW solar wind generator is currently the most economical, reliable, and mature technology for continuous power generation 24 hours a day.

During the day, when we open our eyes, we may see morning sunshine. The sun shares its heat unstintingly, allowing the solar panels in the 1kW solar wind turbine to absorb it and convert it into reliable electricity.

In the evening, you and the sun have finished their day’s work and enjoy the breeze on your way home. At the same time, your wind generator also rotates with the wind speed.

It uses such mechanical and kinetic energy to convert electricity to power your home, farm, resort, primary school, and other buildings.

Their function is not only to generate electricity but also to allow you to use electricity freely and enjoy a top-notch life every day.

In addition to solar panels and wind turbines, what else can PVMARS’s 1kw solar wind generator bring you?

What is included in a 1kw solar wind generator?

Item

Model

Description

Quantity

1

Solar Panel

Mono 400W TOPCon

1 pc or Customized

2

Wind turbine

Horizontal axis 600W wind turbine

1 set or Customized

3

Hybrid controller

600W wind charge controller + 400W input solar power

1 set

4

Pure Sine Wave Inverter

1kW hybrid inverter

1 set

5

Battery

12V150Ah gel battery or Lithium Battery optional

2 pieces

6

Mounting Support

Ground or Slope roof or Flat roof optional

1 set or Customized

7

Guy cable pole

6 meters for fixed 600W wind turbine

1 set or Customized

8

Cables and others

PV cables, wind cables and install tools

100 meters or Customized

Note: Installation and connection of 1kw solar wind generators require mounting support, a guy cable pole, wires, and other accessories.

PVMARS originally intended to provide the full set 1kw solar wind turbine system. There is no need to purchase other accessories locally to use them.

But they are auxiliary functions. If you don’t need them, contact [email protected] for a customized quotation. A customized solution for the 1kw solar wind generator will be provided within 1 hour at the fastest.

How much does a 1kW solar wind generator cost?

Based on a 12v150ah gel battery’s design, a 1kw solar wind turbine is priced at US$1,282. (Valid for 30 days)

If you need a quote for lithium battery design, please contact [email protected] to obtain it.

System connection diagram of a 1kw solar wind generator

The pictures below are just examples. If you want to know more details about the installation, please browse below:

Off grid wind solar hybrid system for home use

How much power can a 1kW solar wind generator produce?

The 1kW solar wind generator is suitable for households whose daily electricity consumption is greater than or equal to 6000WH.

We know that the power generation of this system is provided by solar panels and wind turbines, so PVMARS will describe them separately.

How many solar panels does a 1kW solar wind turbine need?

PVMARS provides monocrystalline and polycrystalline solar panels from 50w-600w.

Among them, monocrystalline N-type TOPCon solar panels are currently a popular option because their high conversion efficiency and low degradation rate make them more efficient than P-type solar panels.

We provide videos and parameters here for your reference.

A 1kW solar wind generator system is generally equipped with 1pc 400W solar panels. We can customize it for you if you need other wattages.

Data sheet under STC Condition

Maximum power at STC(Pmax)

400 Watts

Optimum operating voltage (Vmp)

29.28V

Optimum operating current(Imp)

13.66A

Open-circuit voltage(Voc)

35.27V

Short-circuit current(Isc)

14.07A

Module efficiency(%)

23% (It is expected to reach 26% in 2027)

STC: Irradiance 1000W/㎡,Module temperature 25°℃,AM=1.5

NMOT:Irradiance 800W/㎡,wind speed:1m/s,Module temperature 20℃

Tolerance of Pm:0~+5W

This is laboratory data and may deviate from actual use.

Mechanical Parameters

Cell

N Type Mono-crystalline silicon solar cells

Dimension of module

1556mm × 1134mm × 30mm

Weight

17.6kg

Junction Box

Separated Junction Box with 3 diodes

Output Cables

4mm2

Operating temperature

-40℃ to 85℃

Specifications are subject to change without further notification

Play Video about N type TOPCon solar panels

What is the wind turbine size for a 1kW wind-solar hybrid system?

PVMARS’s 1kw hybrid system has a 600W horizontal axis. If your local average wind speed is higher than 5m/s and the installation space is limited, we can reduce the number of solar panels and increase the wind turbine’s power.

PVMARS’ hybrid wind-solar hybrid system is very flexible. As long as you tell us what challenges you are facing, our experienced engineers will provide you with a satisfactory design solution.

The following are the parameters of a 600W horizontal axis wind generator:

Model

MF-600

Rated power

600W

Starting wind speed

2m/s

Rated voltage

24V/48V/96V

Rated wind speed

12m/s

Security wind speed

≤50m/s

Rated DC voltage

24V-48V

Number of blades

3

Wind blade diameter

1.65m

Control mode

Electromagnetic brakes

Generator type

Three-phase AC permanent magnet synchronous generator

Fuselage material

Reinforced die-cast aluminum + Reinforced nylon fiber

Temperature

-40℃ ~ 80℃

Service life/Degree of protection

≥ 20 years / IP54

Packing material

Foam and carton

N.W&G.W(kg)

16kg/17kg

Packing size

930*360*270mm

Note: If the average wind speed is less than 5m/s, PVMARS has vertical axis and horizontal axis wind turbines.

Vertical-axis wind turbines cost more than horizontal axis. However, it is not limited by wind speed, and it can generate electricity even at a wind speed of 1m/s.

Click “Compare various types of wind turbines” to learn more.

How does the 1kW all-in-one wind-solar hybrid system send power to you?

The inverter is the heart of the system.

By converting wind and solar energy into direct current (DC), a hybrid controller converts them into electricity.

To supply our house appliances with electricity, we need an inverter to convert DC power into AC power.

You will be able to live a more comfortable off-grid life if you select a good inverter.

6kW wall-mounted hybrid inverter in-built MPPT controller
Easy install wall mounted inverter

The 1kw hybrid inverter has the following parameters:

Model

MS-1kW

Capacity(W)

1000W

DC voltage(V)

24

Input voltage(V)

160-265VAC / 90-127VAC

Input frequency

45~65Hz

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤3%

Surge rating (20ms)

3000W

Capable of starting electric motor

1HP

Recharge current

0-35A (Set by yourself)

Transfer Efficiency Protections

90%–95%

Protections

Protection against short-circuit, overload, high-voltage, reverse polarity

protection and low-voltage protection

Overload

Overload 105% for 10 mins, 110%-115% for 1 min. automatically resume when the load becomes normal

Note: The output voltage designed for the 1kW inverter on this page is single-phase 110vac-220vac-240vac.

If you need dual voltage 110v/220v, please leave a message about the required output voltage and email [email protected] to get a quote for customized output.

What is the battery capacity of a 1kW solar wind turbine?

The gel battery of this 1kw wind and solar hybrid system is designed with 2pcs 12v150ah batteries with a total capacity of 3.6kWh.

But to extend battery life, gel batteries have deep cycles of 70%-85%. That means the total capacity should be 2.52kWh.

The battery capacity is related to the time you use electrical appliances.

If you only turn on computers, TVs, and other loads at night, the 2.52kwh battery capacity is also sufficient. This is because wind turbines provide continuous power at night.

In addition, PVMARS also offers lithium battery options. If your installation location is limited and you want more power, our wall-mounted lithium battery is also an excellent choice.

Please contact our sales team for specific prices.

Wall mounted LFP battery design
Wall mounted lithium battery

How to install a 1kW solar wind generator?

PVMARS has detailed articles and installation manuals to choose from. Please click on the orange font to get them.

If you want someone to help you install, PVMARS has an overseas installation team. We have been to Turkey to install 5 sets of 30kw wind turbines.

It is worth noting that the team’s installation costs, round-trip air tickets, accommodation, food, and security will all be the buyer’s responsibility.

Therefore, PVMARS recommends setting up according to the installation manual we provide.

If it cannot be completed, you can contact us for online video assistance or arrange for an engineer to come to your address.

Other parts description

Hybrid controller with dump load

MPPT intelligent control

600W wind power
24V intelligent control Lightning protection.

Wind turbine current limiting, Wind turbine automatic brake and manual brake.

Wind controller with dump load

MPPT solar controller

Real MPPT solar controller

MPPT efficiency >99.9%, Max input voltage:800V various protection functions

MPPT solar controller

Guy cable pole/Stand alone tower optional

For 600w wind turbine, we suggest 6m or 9m height tower optional
It helps fasten the wind generator to a safe altitude.
Use steel material with rust prevention.
Easy to install

Guy cable pole

Solar Panel Rack/Bracket

Full set for Slope, Flat or Ground roof optional

Including complete fittings

Wind load: 55m/s, snow load:1.5kn/m2

Structure: Anodized aluminum + stainless steel

Can be customized as per user’s requirement

            Solar panel rack

Cables and Accessory

1) Battery cables and Copper row for connection to battery

2) 4mm2 PV cable and 16mm2 cable

3) full set of install tools, terminals and MC4 and 1P30A switch box

              Cables and Accessory

1kW Solar Wind Turbine Packing Details

Before each loading and shipment, our factory has special personnel to check the QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

Carton and Wooden box packing optional-Solar panel

Solar panel packing
Wind turbine packing

Why choose PVMARS to provide a 1kw solar wind hybrid system?

Manufacturer of solar power clean energy

PVMARS Solar Factory -100% Lab

100% EL TESTING, 100% IV TESTING, 100% DIGITAL WORKSHOP

In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.



Global authoritative certification

PVMARS products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.



PVMARS Solar Energy Storage Factory Certificate Of Authority

Safety reminder for solar wind system

With PVMARS IoT, through your phone or computer view real-time performance data of your energy system, such as solar panel and wind power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your hybrid system.

At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!




Hybrid Solar Wind System Case
