Hybrid 20kW Solar Wind Generator

PVMARS’ high-quality all-in-one 20kw solar wind generator continues to generate electricity 24/7, 20kw wind solar hybrid system saves you 100% on electricity bills.

Villa or commercial solar wind turbine solution

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: 20kW solar wind generator hybrid system

Price Term: EXW

Can work with battery/city grid or diesel generator backup

Introduction of 20kW Solar Wind Generator

20kW solar wind generators are the most affordable, reliable, and mature renewable energy technology for 24-hour power generation.

When we wake up in the morning, may see the morning sun. As the sun radiates heat relentlessly, the 20kW solar wind turbine absorbs and converts it into electricity.

When the sun and you finish their work for the day, you enjoy the breeze on your way home. In the meantime, your wind generator also rotates with the wind.

Your house, farm, resort, primary school, and other buildings are powered by mechanical and kinetic energy.
In addition to generating electricity, they also let you use electricity freely and enjoy a top-notch life.

You get solar panels and wind turbines, but what else does PVMARS’s 20kw solar wind generator offer?

What does a full set 20kw solar wind generator include?

Item

Model

Description

Quantity

1

Solar Panel

Mono 580W TOPCon

16 pieces or Customized

2

PV combiner

H4T 240V

1 set

3

Solar controller

240V 50A – MPPT charge controller

1 set

4

Wind turbine

Horizontal axis 10kW wind turbine

1 set or Customized

5

Wind controller

10000W wind charge controller

1 set

6

Pure Sine Wave Inverter

20kW IGBT inverter

1 set

7

Battery

12V200Ah gel battery or Lithium Battery optional

40 pieces

8

Mounting Support

Ground or Slope roof or Flat roof optional

16 sets or Customized

9

Guy cable pole

9 meters for fixed 10kW wind turbine

1 set or Customized

10

Cables and others

PV cables, wind cables and install tools

300 meters or Customized

Note: Installation and connection of 20kw solar wind generators require mounting support, a guy cable pole, wires, and other accessories.

PVMARS originally intended to provide the full set 20kw solar wind turbine system. Then you don’t need to buy other accessories locally.

But they are auxiliary functions. If you don’t need them, contact [email protected] for a customized quotation. A customized solution for the 20kw solar wind generator will be provided within 1 hour at the fastest.

What is the price of a 20kW solar wind generator?

Based on the design of a 12v200ah gel battery, a complete 20kw solar wind turbine is priced at US$19,958. (Valid for 30 days)

If you need a quote for lithium battery design, please contact [email protected] to obtain it.

Diagram of a 20kw solar wind generator

The pictures below are just examples. If you want to know more details about the installation, please browse below:

Easy drawing of 20kW hybrid solar wind system

What's the power output of a 20kW solar wind generator?

This 20kW solar wind generator is for households with a daily electricity consumption of over 120KWH.

We know that the power generation of this system is provided by solar panels and wind turbines, so PVMARS will describe them separately.

What's the minimum solar panel requirement for a 20kW hybrid system?

PVMARS provides monocrystalline and polycrystalline solar panels from 50w-600w.

Among them, monocrystalline N-type TOPCon solar panels are currently a popular option because their high conversion efficiency and low degradation rate make them more efficient than P-type solar panels.

We provide videos and parameters here for your reference.

A 20kW solar wind generator system is generally equipped with 16pcs 580W solar panels.

The number of solar panels is closely related to electricity consumption. We can read the article “How many solar panels do I need?” together to get more inspiration.

Data sheet under STC Condition

Maximum power at STC(Pmax)

580 Watts

Optimum operating voltage (Vmp)

43.22V

Optimum operating current(Imp)

13.42A

Open-circuit voltage(Voc)

51.41V

Short-circuit current(Isc)

14.22A

Module efficiency(%)

23% (It is expected to reach 26% in 2027)

STC: Irradiance 1000W/㎡,Module temperature 25°℃,AM=1.5

NMOT:Irradiance 800W/㎡,wind speed:1m/s,Module temperature 20℃

Tolerance of Pm:0~+5W

This is laboratory data and may deviate from actual use.

Mechanical Parameters

Cell

N Type Mono-crystalline silicon solar cells

Cell Size

182mm*91mm

Cell Quantity

144Pcs(6*24)

Dimension of module

2279mmx1134mmx30mm

Weight

27.5kg

Junction Box

Separated Junction Box with 3 diodes

Output Cables

4mm2

Operating temperature

-40℃ to 85℃

Specifications are subject to change without further notification

Play Video about N type TOPCon solar panels

What is the wind turbine size for a 20kW wind-solar hybrid system?

PVMARS’s 20kw hybrid system has a 10kW horizontal axis. If your local average wind speed is higher than 5m/s and the installation space is limited, we can reduce the number of solar panels and increase the wind turbine’s power.

PVMARS’ hybrid wind-solar hybrid system is very flexible. As long as you tell us what challenges you are facing, our experienced engineers will provide you with a satisfactory design solution.

The following are the parameters of a 10kW horizontal axis wind generator:

Model

MF-10000

Rated power

10000W

Starting wind speed

2.5m/s

Rated voltage

120V/220V/240V/380V

Rated wind speed

11m/s

Security wind speed

≤50m/s

Rated DC voltage

96V-240V

Number of blades

3

Wind blade diameter

6.5m

Control mode

Electromagnetic brakes

Generator type

Three-phase AC permanent magnet synchronous generator

Fuselage material

Reinforced die-cast aluminum+steel

Temperature

-40℃ ~ 80℃

Service life/Degree of protection

≥ 20 years / IP54

Packing material

Foam and plywood

N.W&G.W(kg)

215kg/245kg

Packing size

90*52*45cm + 230*30*38cm +

48*48*50cm

10kw wind turbine is packaged in these 3 parts

– wind blades, generator and other accessories

Click on the orange font to find out the price and details of a standalone 10kw wind system.

Note: If the average wind speed is less than 5m/s, PVMARS has vertical axis and horizontal axis wind turbines.

Vertical-axis wind turbines cost more than horizontal axis. However, it is not limited by wind speed, and it can generate electricity even at a wind speed of 1m/s.

Click “Compare various types of wind turbines” to learn more.

How does your 20kW wind-solar hybrid system work?

An inverter is the core of the system.

Wind and sun power flow into the battery through the wind and solar hybrid controller, and the battery converts direct current.

Off grid wind solar hybrid system for home use

 If your home appliances use AC power (such as refrigerators, air conditioners, washing machines), you need an inverter to convert DC power into AC power.

Among them, the inverter power is closely related to the electrical load power you use. if your house power exceeds 20kw. Our team can design a 25kw inverter and a 20kw solar wind turbine, or bigger.

PVMARS conventional inverters can choose between MOS tubes and IGBT modules, but we recommend IGBT modules.

The IGBT is more efficient than the MOS tube, but the price will also increase accordingly (if you’re interested in the MOS tube inverter, please contact us).

An IGBT (Insulated Gate Bipolar Transistor) is a super-electronic switch that withstands extremely high voltages.

The AC voltage of a typical house is 220V, and the paper-thin IGBT chip can withstand 6500V. And it can flow 200A of current!

It is very suitable for precision instruments, factories, hospitals, and large shopping malls.

This powerful IGBT inverter deserves your house. You deserve better!

The 20kw IGBT inverter has the following parameters:

Model

MT-20kW

Capacity(W)

20,000W

DC voltage(V)

192-360

Input voltage(V)

160-265VAC / 90-127VAC

Input frequency

45~65Hz

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤3%

Recharge current

20-30A

Transfer Efficiency Protections

90%–95%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity

protection and low-voltage protection

Overload

Overload 125% for 10 mins, 125%-150% for 1 min. automatically resume when the load becomes normal

Note: The output voltage designed for the 20kW IGBT inverter on this page is single-phase 220vac-240vac.

If you need three-phase 380v-415v or dual voltage 110v/220v, please leave a message about the required output voltage and email [email protected] to get a quote for customized output.

What is the battery capacity of a 20kW solar wind turbine?

The gel battery of this 20kw wind and solar hybrid system is designed with 40pcs 12v200ah batteries with a total capacity of 96kWh.

But to extend battery life, gel batteries have deep cycles of 70%-85%. That means the total capacity should be 67.2kWh.

The battery capacity is related to the time you use electrical appliances.

If you only turn on air conditioners, computers, TVs, refrigerators, and other loads at night, the 67.2kwh battery capacity is also sufficient. This is because wind turbines provide continuous power at night.

In addition, PVMARS also offers lithium battery options. If your installation location is limited and you want more power, our small-volume 1-unit 96kWh lithium battery is also an excellent choice.

Please contact our sales team for specific prices.

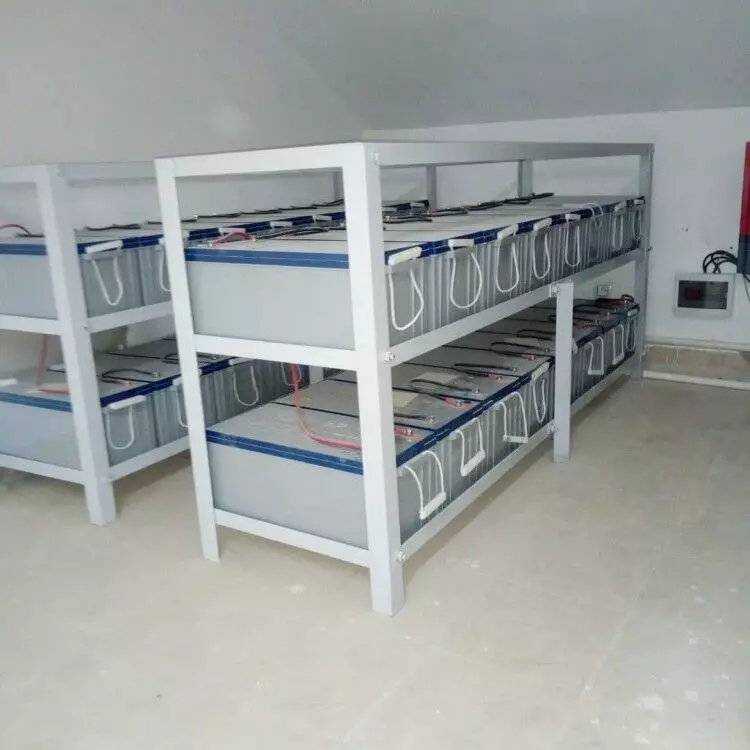

30kw distributed generation with gel battery
40 units gel battery
Lithium battery size
1 unit lithium battery

A 20kW solar wind turbine system takes up how much space?

Generally speaking, the installation area of a 20kW solar-wind hybrid system is approximately 50 square meters (538.19552 ft2).

Solar panels are calculated from the roof area: 16 x 580W PV panels occupy approximately 42 square meters. 40 x 12v 200AH gel batteries will require approximately 1.5 square meters of installation area.

There are also relatively small proportions of inverters and wind turbines. Solar and wind controllers can be mounted on the wall.

Therefore, we should consider the installation area inside and outside the house.

However, in general, a 20kw wind and solar hybrid system does not occupy much area.

How to install a 20kW solar wind generator?

PVMARS has detailed articles and installation manuals to choose from. Please click on the orange font to get them.

If you want someone to help you install, PVMARS has an overseas installation team. We have been to Turkey to install 5 sets of 30kw wind turbines.

It is worth noting that the team’s installation costs, round-trip air tickets, accommodation, food, and security will all be the buyer’s responsibility.

Therefore, PVMARS recommends setting up according to the installation manual we provide.

If it cannot be completed, you can contact us for online video assistance or arrange for an engineer to come to your address.

20kW hybrid systems other parts description

Wind controller with dump load

MPPT intelligent control

10000W wind power
240V intelligent control Lightning protection.

Wind turbine current limiting, Wind turbine automatic brake, and manual brake.

Wind controller with dump load

MPPT solar controller

Real MPPT solar controller

MPPT efficiency >99.9%, Max input voltage:800V various protection functions

MPPT solar controller

Guy cable pole/Stand alone tower optional

For 10kw wind turbine, we suggest 9m or 12m height tower optional
It helps fasten the wind generator to safe altitude.
Use steel material with rust prevention.
Easy to install

Guy cable poleStand alone tower for windmill

PV combiner

H4T-240VDC
Multiple solar panel string inputs
PV array wiring simplified, controller protection,
Wide range of DC input voltages, max circuit voltage: 1000V

Reliable thunderstorm & surge protection

PV combiner

Solar Panel Rack/Bracket

Full set for Slope, Flat or Ground roof optional

Including complete fittings

Wind load: 55m/s, snow load:1.5kn/m2

Structure: Anodized aluminum + stainless steel

Can be customized as per user’s requirement

            Solar panel rack

Cables and Accessory

1) Battery cables and Copper row for connection to battery

2) 4mm2 PV cable and 25mm2 wind cable

3) full set of install tools, terminals and MC4 and 2P100A switch box

              Cables and Accessory

20kW Solar Wind Turbine Packing Details

Before each loading and shipment, our factory has special personnel to check the QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

Carton and Wooden box packing optional-Solar panel

Solar panel packing
Wind turbine packing

Why choose PVMARS to provide a 20kw solar wind hybrid system?

Manufacturer of solar power clean energy

PVMARS Solar Factory -100% Lab

100% EL TESTING, 100% IV TESTING, 100% DIGITAL WORKSHOP

In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.



Global authoritative certification

PVMARS products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.



PVMARS solar product quality assurance

Safety reminder for solar wind system

With PVMARS IoT, through your phone or computer view real-time performance data of your energy system, such as solar panel and wind power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your hybrid system.

At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!
