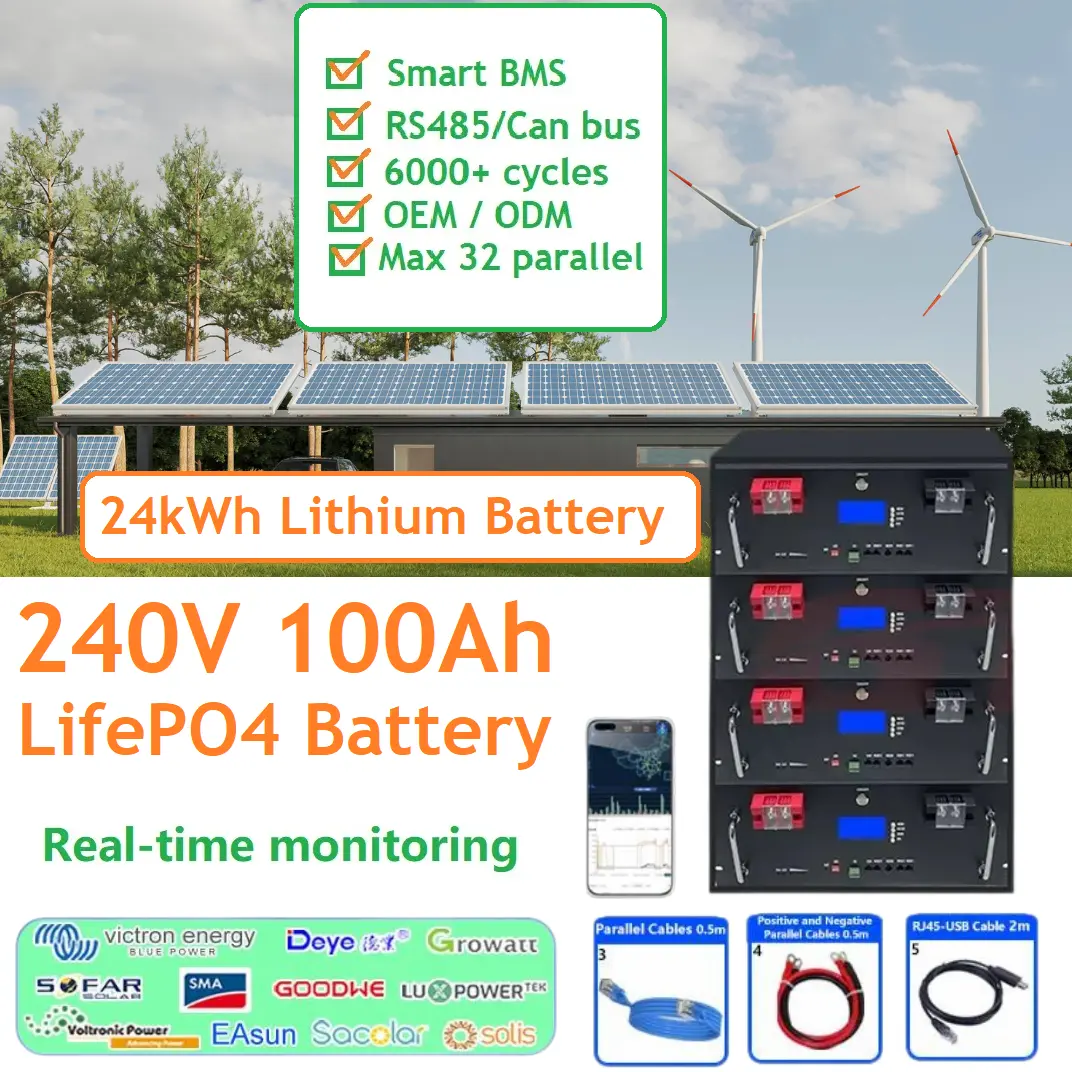

24kWh LiFePO4 240V 100Ah Lithium Battery Wholesale price

Check the 240V 100Ah lithium battery wholesale price, PVMars 24kWh rack mount lifePO4 over 12 years lifespan, with BMS to solve your power shortage in telecom station/home/farm.

Price Term: EXW

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: 240V 100Ah lithium battery

Home or Commercial battery storage solution

Can work with solar panel/wind turbine/city grid or generator backup

What does a 240V 100Ah lithium battery consist of?

The 240V 100Ah lithium battery is the same as conventional lithium batteries. It is composed of positive and negative active materials, separators, electrolytes, current collectors, casings, etc.

When the lithium battery works, the above accessories play the following roles:

  • Cathode material: stores lithium ions and oxidizes them to produce electrons.
  • Negative material: accepts lithium ions and reduces electrons.
  • Separator: prevents electrons from flowing directly while allowing lithium ions to pass through.
  • Electrolyte: Provides an ion transmission medium.
  • Current collector: collects electrons generated by the positive and negative electrodes.
  • Shell: protects the battery’s internal structure.

Maybe the text explanation is too thin. You can click on the video below to watch the internal structure video of the 24kWh rack-mounted lithium battery:

Play Video

Features of PVMars 240V 100AH lithium battery

The cathode material selected for the 240V 100Ah lithium battery produced by PVMars is a lithium iron phosphate (LiFePO4) battery cell.

This is one of the safest cathode materials in the world.

It has strong cycle stability, a long service life (12 years), and an environmentally friendly composition that is easy to recycle. Among them, the battery cell raw material suppliers we cooperate with include BYD, CATL, and Ganfeng.

Our lithium batteries have:

  • More than 6000 depth cycles (DOD).
  • Allows more lithium batteries to be connected in parallel to add more capacity in the future.
  • 6-year warranty – If quality problems arise, new parts will be sent free of charge for replacement.

PVMars promises a 30-day return policy on all products.

15 days production time and 6 years free warranty

In addition, each PVMars lithium battery is equipped with a battery management system (BMS), which is also a vital component of lithium iron phosphate batteries.

BMS includes:

  • Monitor your battery’s voltage, current, and temperature.
  • Protect the battery from overcharging, over-discharging, over-temperature, etc.
  • Extend battery life.
Lithium battery with battery management system-BMS

What is the difference between 240V and 256V lithium batteries?

We often see 24kWh rack-mounted batteries marked with 240V or 256V, so what is the difference between them?

The final DC voltage is different due to the different series and parallel connections of the internal cells.

Lithium batteries are composed of small 3.2V cells. 256V / 3.2V = 80, which means that a 256V lithium battery consists of 80 x 3.2V cells connected in series.

By analogy, 240V is composed of 75 x 3.2V batteries connected in series.

Although both batteries have the same capacity of 100Ah, their final stored power will differ slightly. 256 x 100 = 25.6kwh, 240 x 100 = 24000wh. We can collectively call them 24kWh batteries.

Please refer to the picture below for specific parameters (click to enlarge).

Function Parameter

Norminal Battery Energy

24000Wh

Norminal Capacity

100Ah

Norminal Voltage

240V

Internal Resistance

≤10mΩ

Cycle Life

>6000 cycles

Months Self Discharge

<3%

Charge Data

Charger Current

20A-50A

Max. Charge Current

100A

Charge Cut-off Voltage

273V

Discharge Data

Continuous Current

20A

Max continuous discharge current

100A

Discharge Cut-off Voltage

202V

Working Condition

Charge Temperature

0ºC to 45ºC (32ºF to 113ºF) @60±25% Moisture Relative

Discharge Temperature

-20ºC to 60ºC (-4ºF to 140ºF) @60±25% Moisture Relative

Storage Temperature

0ºC to 40ºC (32ºF to 104ºF) @60±25% Moisture Relative

Enclosure Protection Level

IP67

Mechanical Data

Shell material

Metal Case

Dimensions

460*450*1080mm

Weight (lbs./kg.)

About 338kg

Warranty

We offer a standard 6 year warranty, but can offer 10+ years upon request

OEM

The ability to customize dimensions, current, logos, etc.

Wholesale price of 240V 100AH lithium batteries?

Earlier we mentioned the difference in stored electricity, which is also reflected in the price difference.

240V 100Ah lithium batteries cost US$2743/unit (Valid for 30 days)

The price of a 256V 100Ah lithium battery is US$2926/unit (Valid for 30 days)

Please note that lithium batteries are priced on Wh, which is stored electrical energy.

It is difficult to tell the actual capacity (electric energy) of a lithium battery with the naked eye. Although the casing is marked 240V 100Ah, is the actual capacity that much?

Avoid buying fake batteries, which need to be tested to determine whether they are genuine. Please click on the “Battery Capacity Test Video” to get more battery secrets.

How much energy does a 240V 100AH lithium battery store?

AH is a unit for measuring electrical storage equipment capacity. Its scientific name is “ampere hour”, which means that electrical storage equipment can continue to work for 1 hour when the power supply current intensity is 1A.

WH is a form of energy (electrical energy) and is equal to the voltage of the solar cell (V) multiplied by the AH of the battery.

The resulting WH value is divided by 1000, and the result is KWH (degree).

Conversion formula: 1WH = V * AH, 1KWH = 1WH / 1000.

That means that a 240V 100AH lithium battery can store a capacity of 240V * 100AH = 24vah / 1000 = 24kWh.

The last 24kWh / 1kW = 24 hours means that a 240V 100Ah lithium battery can supply power to a 1000W electrical device for 24 hours.

In layman’s terms, it means how many hours a lithium battery can work when power fails. PVMars senior engineer wrote an article to explain this issue. If you are interested, you can click on the orange font to get more information.

Can a 240V 100AH lithium battery be used directly?

Its focus here is on what kind of electrical equipment the lithium battery is connected to.

The 240V 100Ah lithium battery can be directly connected and used if it is a DC fan or lamp.

Because the lithium battery outputs direct current. But if your load is an AC appliance, an inverter is required to perform DC-AC conversion to supply your load.

PVMars lithium batteries can be connected to any brand of inverter without communication protocol restrictions.

However, you need to provide the inverter parameters – such as DC voltage, power, output voltage, etc. Of the inverter (specifically reflected in the inverter). The side or back of the inverter. You can take a photo and send it to [email protected])

PVMars Off grid solar power system drawing

Why choose PVMars lithium batteries?

For your safety, PVMars is not just talking, we take practical actions to protect your property and life!

PVMars’ lithium batteries need strict testing before shipment, including temperature testing of lithium batteries.

Because the lithium batteries are temperature-sensitive if it exceeds -20℃, unqualified lithium batteries will stop discharging. You can see how PVMars performs temperature extreme testing in the video below:

PVMars production process is shown in the figure:

Lithium battery production and shipment flow chart

In addition, there are 9 major procedures for inspecting lithium batteries:

9 major lithium battery production and testing processes

Lithium batteries belong to the 9 category of dangerous goods.

You will need MSDS, sea/air transportation identification report, UN38.3 test report, dangerous package certificate, and other certifications before exporting.

Ensure no accidents occur during lithium battery transportation.

PVMars provides them all here, you can click to download the relevant certification and provide it to your freight forwarder to get a sea freight cost quote. Or contact [email protected] to arrange shipping.
