2kVA 2kW Wind Turbine Cost – Horizontal Axis

PVMars provides a world-class 2kW wind turbine with a controller, IGBT inverter, and batteries. Full set 2kW wind plant for home, villa, or farm.

Price Term: EXW

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: 2kW horizontal wind turbine

Home and Commercial wind power storage solution

Can work with solar/battery/grid or generator backup

Introduction of 2kW Wind Turbine

The complete system of a single 2kW wind turbine + controller + inverter + battery can help you achieve energy independence.

Get rid of diesel generators or utility grids. Your life will be powered by free, green, and reliable energy.

The 2kW wind turbine is ideal for providing 24-hour power to your house, villa, farm, hotel, resort, and more.

Any electrical equipment that requires electricity can also be powered, including air conditioners, TVs, microwaves, refrigerators, production equipment, precision instruments, etc.

You can keep browsing for more information on the 2kW wind turbine parts and prices.

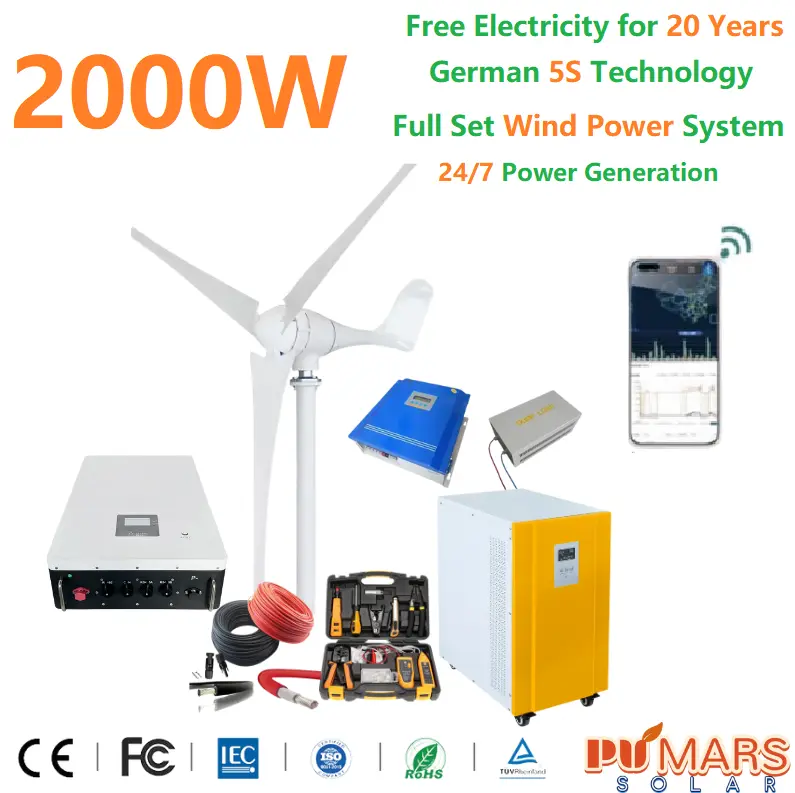

Here's what a 2kW wind turbine looks like

Horizontal axis wind turbine disassembly diagram

We can divide it into many types of wind turbines based on different axial directions. (Click on the orange font for more information).

PVMARS is committed to customers receiving complete products. If there are any missing parts or quality issues, you can check our after-sales policy and enter your money protection mechanism.

Tips: 2kW = 2kilowatts = 2000 watts

2kW wind turbine features and advantages:

1) PVMARS’s horizontal axis wind turbines have tail rudders. These rudders can automatically adjust the windward angle to 360°, without fear of wind direction changes. Increase power generation.

2) The wind blades are reinforced with fiberglass, which can withstand violent storms of more than 40m/s.

3) Using a three-phase AC permanent magnet synchronous generator, it can work safely in a cold environment of -40°C.

PVMARS can add color to wind blades according to your local environment, reducing bird deaths.

Why can adding color protect the local ecological environment? Click on the orange font to learn 8 cool facts about wind turbines

300w-100kw wind turbine produce from PVMars company

What size of a 2kW wind turbine?

More specific parameters are as follows:

Model

MF-2000

Rated power

2000W

Starting wind speed

2m/s

Rated voltage

48V/96V/120V/220V/240V

Rated wind speed

12m/s

Security wind speed

≤50m/s

Rated DC voltage

48V-96V

Number of blades

3

Wind blade diameter

2.5m

Control mode

Electromagnetic brakes

Generator type

Three-phase AC permanent magnet synchronous generator

Fuselage material

Reinforced die-cast aluminum+steel

Temperature

-40℃ ~ 80℃

Service life/Degree of protection

≥ 20 years / IP54

Packing material

Foam and plywood

N.W&G.W(kg)

35kg/40kg

Packing size

1320*400*300mm

How much power does a 2kW wind turbine produce?

From the power curve table below, we know that the wind turbine’s energy changes as the wind speed changes.

2kW wind turbine working curve

When the wind speed reaches 11m/s, it can generate 2kW of power.

But the wind speed is not 11m/s all the time, so we calculate the average wind speed.

With an average wind speed of 5m/s, a 2kw wind turbine can generate 12kwh per day.

What should I do if the wind speed is not enough?

You may consider using a 2kw wind-solar hybrid system

What's the price of a 2kW wind turbine?

2kW wind turbines cost US$710. (valid for 30 days).

Note: When confirming your order, please contact our sales team to get the latest price.

Do 2kW wind turbines take up a lot of space?

Small wind turbine 1kw-3kw models

While 2kW wind turbines aren’t massive, they require a decent amount of space, considering two main factors:

1. Rotor diameter: This is the size of the circle swept by the blades when spinning. 2kW turbines have diameters of 3 to 4 meters (11 to 13 feet). Imagine a circle that covers the ground wide – that’s the minimum horizontal space needed for safe operation.

2. Tower height: To capture stronger winds, the turbine needs to be placed high up. 2kW turbines typically sit on towers ranging from 8 to 10 meters (29 to 32 feet) tall. This adds to the vertical space requirement.

Therefore, the total footprint of a 2kW wind turbine can vary depending on the specific model.

However, it’s generally within a circle of 3-4 meters radius and a height of 8-10 meters from the tower base to the blade tip.

Here’s some additional perspective:

Football fields are 91 meters (100 yards) long and 49 meters (53.3 yards) wide.
There’s no way a 2kW wind generator will cover an entire football field, but it won’t take up most of the space either.

A typical single-family home has a lot size of around 600-1000 square meters (6,500-10,800 square feet). A 2kW turbine could potentially fit on such a lot, depending on the layout and zoning regulations.

Remember, these are just general guidelines. Always consult with our professionals to determine the exact space requirements for a specific 2kW turbine model and your intended location.

They will consider factors like wind patterns, zoning restrictions, and safety clearances to ensure proper placement.

For details on how to install a 2kW wind generator, read on.

How are your wind turbines produced?

Please watch the video below.

Play Video

Do 2kW wind turbines make a lot of noise?

The 2kW wind turbine noise level is about 45 decibels, so it does not affect your daily life or sleep.

Maybe the language is too pale. You can watch the video below and listen to the actual sound:

How Noisy Are Wind Turbines?-Wind Energy
Play Video about How Noisy Are Wind Turbines?-Wind Energy

Can I use my one wind turbine directly?

Wind turbines are the main body of power generation and require current conversion and transmission through wind controllers, inverters, batteries, etc.

Moreover, wind, like solar energy, has intermittent windlessness. Once there is no wind, the wind turbine cannot generate electricity.

Therefore, if your local area does not have or does not want to use a public utility grid, connecting the wind turbine to the battery is currently the most economical and convenient option.

Among them, inverters are the most critical in wind power systems. If you are interested, please check below.

Inverter parameters for a 2kW wind power system

Model

MS-2kW

Capacity(W)

2000W

DC voltage(V)

48

Input voltage(V)

160-265VAC / 90-127VAC

Input frequency

45~65Hz

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤3%

Surge rating (20ms)

4000W

Capable of starting electric motor

1HP

Recharge current

0-35A (Set by yourself)

Transfer Efficiency Protections

90%–95%

Protections

Protection against short-circuit, overload, high-voltage, reverse polarity

protection and low-voltage protection

Overload

Overload 105% for 10 mins, 110%-115% for 1 min. automatically resume when the load becomes normal

Pure Sine Inverter 2000W 2kW Hybrid MPPT Charger Inbuilt Price

The inverter is the heart of the system.

By converting wind and solar energy into direct current (DC), a hybrid controller converts them into electricity.

To supply our house appliances with electricity, we need an inverter to convert DC power into AC power.

You will be able to live a more comfortable off-grid life if you select a good inverter.

Note: The output voltage designed for the 2kW inverter on this page is single-phase 110vac-220vac-240vac.

If you need dual voltage 110v/220v, please leave a message about the required output voltage and email [email protected] to get a quote for customized output.

Is it possible to connect a 2kW wind turbine directly to a battery?

No, because the battery is DC power and the 2kW wind turbine is three-phase AC power.

The connection between them requires a wind controller to function as a DC-to-AC converter. This way, the battery can fully receive the 2kw wind turbine power.

PVMARS provides gel batteries and lithium batteries.

How much battery capacity does a 2kW wind turbine have?

The battery capacity for a regular 2kW wind turbine system is 8kWh. The battery capacity is closely related to the duration of your electrical load.

If you need a longer backup time, contact our professional to customize a system that meets your needs.

How much does an entire 2kW wind power system cost?

The price of a 2kW wind power plant is US$2,434 – the battery is gel. (valid for 30 days).

If you need lithium battery design, please send an email to [email protected] for consultation.

Wind controller with dump load

MPPT intelligent control

2kW wind controller
48Vdc intelligent control Lightning protection.

Wind turbine current limiting, Wind turbine automatic brake, and manual brake.

Wind controller with dump load

Guy cable pole

We suggest a 6m height tower for a 2kw wind turbine.

It helps fasten the wind generator to a safe altitude.
Use steel material with rust prevention.
Easy to install

Guy cable pole

2kW wind turbine packing details

Before each loading and shipment, our factory has special personnel to check the QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

Wind turbine packing
Solar panel packing

How do you install a 2kW wind turbine?

Horizontal axis wind turbines are composed of wind blades, wheel housings, nacelles, tail fins, etc.

This 2kW wind turbine from PVMARS will be assembled and tested in the production factory.

You only need to set it up according to the installation manual provided by us to achieve off-grid living.

We also provide overseas installation services. Please fill in the form if required.
