30kW Wind Turbine – Horizontal Axis

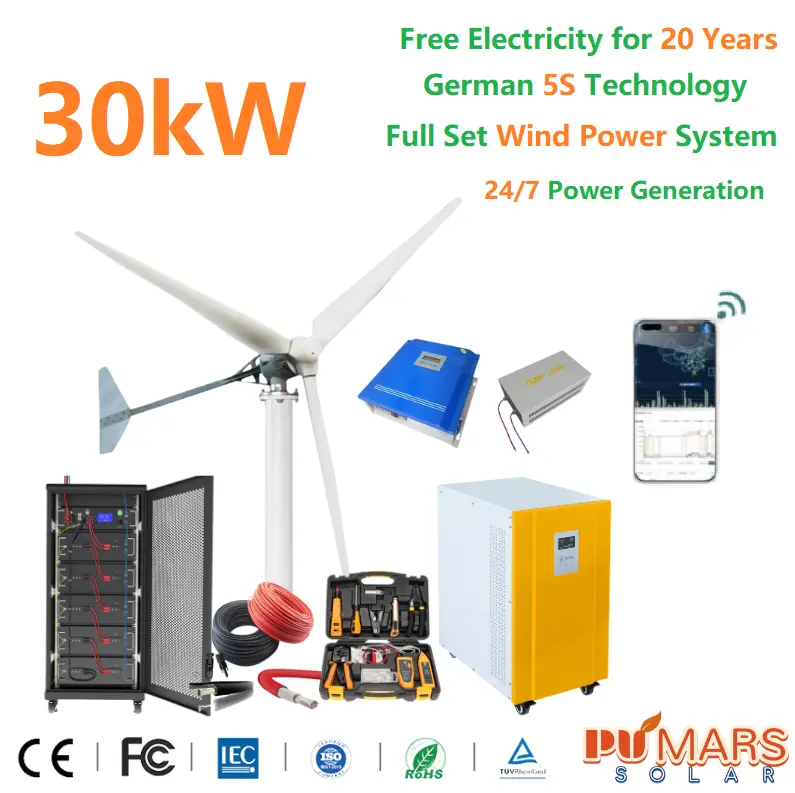

PVMars provides a world-class 30kW wind turbine with a controller, IGBT inverter, and batteries. Full set 30kW wind plant for factory, hospital, and farm.

Commercial and Industry wind storage solution

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: 30kW horizontal wind turbine

Price Term: EXW

Can work with solar/battery/grid or generator backup

Introduction of 30kW Wind Turbine

The complete system of a single 30kW wind turbine + controller + inverter + battery can help you achieve energy independence.

Get rid of diesel generators or utility grids. Your life will be powered by free, green, and reliable energy.

The 30kW wind turbine is ideal for providing 24-hour power to your villa, farm, hotel, resort, and more.

Any electrical equipment that requires electricity can also be powered, including air conditioners, TVs, microwaves, refrigerators, production equipment, precision instruments, etc.

Keep browsing for more information on the 30kW wind turbine parts and prices.

Here's what a 30kW wind turbine looks like

Horizontal axis wind turbine disassembly diagram

We can divide it into many types of wind turbines based on different axial directions. (Click on the orange font for more information).

PVMARS is committed to customers receiving complete products. If there are any missing parts or quality issues, you can check our after-sales policy and enter your money protection mechanism.

Tips: 30kW = 30 kilowatts = 30000 watts

30kW wind turbine features and advantages:

1) PVMARS’s horizontal axis wind turbines have tail rudders. These rudders can automatically adjust the windward angle to 360°, without fear of wind direction changes. Increase power generation.

2) The wind blades are reinforced with fiberglass, which can withstand violent storms of more than 40m/s.

3) Using a three-phase AC permanent magnet synchronous generator, it can work safely in a cold environment of -40°C.

PVMARS can add color to wind blades according to your local environment, reducing bird deaths.

Why can adding color protect the local ecological environment? Click on the orange font to learn 8 cool facts about wind turbines

What size of a 30kW wind turbine?

More specific parameters are as follows:

Model

MF-30000

Rated power

30000W

Starting wind speed

2.5m/s

Rated voltage

220V/240V/380V

Rated wind speed

11m/s

Security wind speed

≤50m/s

Rated DC voltage

360V

Number of blades

3

Wind blade diameter

12m

Rated speed

140rpm

Control mode

Electric brakes

Generator type

3 phase AC permanent magnet synchronous generator

Fuselage material

Reinforced die-cast aluminum+steel

Temperature

-40℃ ~ 80℃

Service life/Degree of protection

≥ 20 years / IP54

Packing material

Foam and plywood

N.W&G.W(kg)

≈1600kg

Packing size

147*72*96cm + 461*55*50cm + 65*65*32cm +

145*120*6cm

30kw wind turbine is packaged in these 4 parts

– wind blades, generator and other accessories

How much power does a 30kW wind turbine produce?

From the power curve table below, we know that the wind turbine’s energy changes as the wind speed changes.

30kW wind turbine working curve

When the wind speed reaches 11m/s, it can generate 30kW of power.

But the wind speed is not 11m/s all the time, so we calculate the average wind speed.

With an average wind speed of 5m/s, a 30kw wind turbine can generate 180kwh per day.

What should I do if the wind speed is not enough?

You may consider using a 30kw wind-solar hybrid system

What's the price of a 30kW wind turbine?

30kW wind turbines cost US$11,534. (valid for 30 days).

Note: When confirming your order, please contact our sales team to get the latest price.

How big are 30kW wind turbines?

How to install wind turbine in energy system?

While 30kW wind turbines aren’t massive, they require a decent amount of space, considering two main factors:

1. Rotor diameter: This is the size of the circle swept by the blades when spinning. 30kW turbines have diameters of 12 to 15 meters (39 to 49 feet). Imagine a circle that covers the ground wide – that’s the minimum horizontal space needed for safe operation.

2. Tower height: To capture stronger winds, the turbine needs to be placed high up. 30kW turbines typically sit on towers ranging from 18 to 25 meters (59 to 82 feet) tall. This adds to the vertical space requirement.

Therefore, the total footprint of a 30kW wind generator can vary depending on the specific model.

However, it’s generally within a circle of 12-15 meters radius and a height of 30-40 meters from the tower base to the blade tip.

Here’s some additional perspective:

Football fields are 91 meters (100 yards) long and 49 meters (53.3 yards) wide.
There’s no way a 30kW wind generator will cover an entire football field, but it won’t take up most of the space either.

A typical single-family home has a lot size of around 600-1000 square meters (6,500-10,800 square feet). A 30kW turbine could potentially fit on such a lot, depending on the layout and zoning regulations.

Remember, these are just general guidelines. Always consult with our professionals to determine the exact space requirements for a specific 30kW turbine model and your intended location.

They will consider factors like wind patterns, zoning restrictions, and safety clearances to ensure proper placement.

For details on how to install a 30kW wind generator, read on.

How are your wind turbines produced?

Please watch the video below.

Play Video

Do 30kW wind turbines make a lot of noise?

The 30kW wind turbine noise level is about 45 decibels, so it does not affect your daily life or sleep.

Maybe the language is too pale. You can watch the video below and listen to the actual sound:

Wind turbine noise level
Play Video about Wind turbine noise level

Can I use my one wind turbine directly?

Wind turbines are the main body of power generation and require current conversion and transmission through wind controllers, inverters, batteries, etc.

Moreover, wind, like solar energy, has intermittent windlessness. Once there is no wind, the wind turbine cannot generate electricity.

Therefore, if your local area does not have or does not want to use a public utility grid, connecting the wind turbine to the battery is currently the most economical and convenient option.

Among them, inverters are the most critical in wind power systems. If you are interested, please check below.

Inverter parameters for a 30kW wind power system

Model

MT-30kW

Capacity(W)

30,000W

DC voltage(V)

360

Input voltage(V)

160-265VAC / 90-127VAC

Input frequency

45~65Hz

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤3%

Recharge current

20-30A

Transfer Efficiency Protections

90%–95%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity

protection and low-voltage protection

Overload

Overload 125% for 10 mins, 125%-150% for 1 min. automatically resume when the load becomes normal

PVMARS’s 30kw inverter uses IGBT modules, which are more powerful than MOS tubes to control and achieve efficient power conversion. Its price will rise accordingly – (If you want to know the price of MOS tube inverters, please contact our team).

What makes it powerful?

The IGBT (Insulated Gate Bipolar Transistor) is a super-electronic switch that withstands ultra-high voltages.

The AC voltage in our homes is 220V, and the paper-thin IGBT chip can withstand 6500V.

In general, when all household appliances are turned on, the maximum current will not exceed 30A, but an IGBT chip the size of a fingernail can flow about 200A!

Is it possible to connect a 30kW wind turbine directly to a battery?

No, because the battery is DC power and the 30kW wind turbine is three-phase AC power.

The connection between them requires a wind controller to function as a DC-to-AC converter. This way, the battery can fully receive the 30kw wind turbine power.

PVMARS provides gel batteries and lithium batteries to choose from:

How much battery capacity does a 30kW wind turbine have?

The battery capacity for a regular 30kW wind turbine system is 80kWh. The battery capacity is closely related to the duration of your electrical load.

If you need a longer backup time, contact our professional to customize a system that meets your needs.

How much does an entire 30kW wind power system cost?

The price of a 30kW wind power plant is US$38,588 – the battery is gel. (valid for 30 days).

If you need lithium battery design, please send an email to [email protected] for consultation.

Wind controller with dump load

MPPT intelligent control

30kW wind controller
360Vdc intelligent control Lightning protection.

Wind turbine current limiting, Wind turbine automatic brake, and manual brake.

Wind controller with dump load

Guy cable pole/Stand alone tower optional

We suggest a 18m or 25m height tower for a 30kw wind turbine.

It helps fasten the wind generator to a safe altitude.
Use steel material with rust prevention.
Easy to install

Guy cable poleStand alone tower for windmill

30kW wind turbine packing details

Before each loading and shipment, our factory has special personnel to check the QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

Wind turbine packing
Solar panel packing

How do you install a 30kW wind turbine?

Horizontal axis wind turbines are composed of wind blades, wheel housings, nacelles, tail fins, etc.

This 30kW wind turbine from PVMARS will be assembled and tested in the production factory.

You only need to set it up according to the installation manual provided by PVMars to achieve off-grid living.

If you want someone to help you install, PVMars has an overseas installation team. We have been to Turkey to install 5 sets of 30kw wind power systems.

Please fill in the form for the required installation service.

Please enable JavaScript in your browser to complete this form.
10 pm or Saturday 2 pm or when?
Installation Location
Click or drag a file to this area to upload.

Why choose PVMARS to provide a 30kw wind power plant?

Global authoritative certification

PVMARS products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.



How do we warranty your renewable energy product?

Safety reminder for wind system

With PVMARS IoT, through your phone or computer view real-time performance data of your energy system, such as solar panel and wind power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your hybrid system.

At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!
