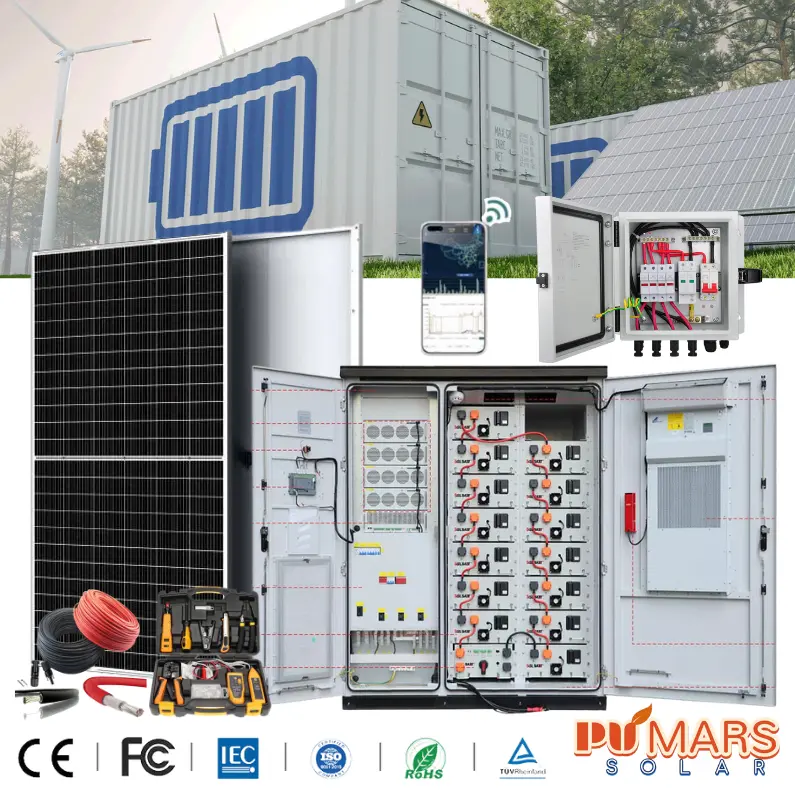

0.5MW 500kVA BESS Off Grid Solar System for Commercial Plant

Check 500kVA BESS Off Grid Solar System Factory price, over 25 years life span, and help you create power in remote areas. Solve power shortage.

Place Of Origin: China

Brand: PVMARS Solar Manufacturer

MOQ: 1 set, accept OEM & ODM

Type: Off/On-grid with battery back up

Output voltage: 220V-380V-415V three phase

Payment: T/T, L/C, Paypal, Western Union

PVMARS Solar Energy storage technology factory, always with your needs as the core

PVMARS Solar establishment time and advantages

16 years

Leading photovoltaic energy storage technology

24 hours uninterrupted power supply solution

24 hours

Intelligent remote monitoring of 24-hour power supply

Meticulous and warm solar expert

24/7 online

We only care about how YOU feel
To your satisfaction

Manufacturer of solar power clean energy

PVMARS solar Factory -100% Lab

100% EL TESTING, 100% IV TESTING, 100% DIGITAL WORKSHOP

In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.




Global authoritative certification

PVMARS solar products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.


PVMARS Solar Energy Storage Factory Certificate Of Authority
Real-time remote monitoring of the safe operation of solar energy system

Safety reminder for solar system

With PVMARS solar IoT, through your phone or computer view real-time performance data of your solar system, such as solar panel power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your solar system.

At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!



Can power supply 220v and 380v devices at the same time?

PVMars single phase 220v-240vac

Three phase: 380Vac/400Vac±10%(customized 190Vac/200VAC)

PVMars three phase 380v-415vac

As the name implies, 3 phase AC voltage has at least three fire lines, and in these three fire lines in physics, we simply give different characters (there may be some differences between different countries, but generally defined as R, S, T).

R+ S + T = 380V or 400V (±5%-10% floating, can be customized for special voltages 180Vac/200Vac, etc.)

If you also have a 220v device, it is usually achieved by a zero line, and in logistics, we assign the character N

R+ N = 220v, S + N = 220v, T + N = 220v

We can use both three-phase and single-phase devices together in one solar power system.

For most 220VAC appliances, the voltage is single-phase. Such as air conditioners, fan, light, TV, and so on.

For most 380VAC-450VAC appliances, the voltage is three-phase. Such as motors, power pumps, central air conditioning, industrial equipment, and so on.

Your dedicated engineers are ready to start customizing your solar clean energy system!

500kVA BESS Off Grid Solar System Description

Maximum 600 Watts solar panel optional

Shingled/HJT solar panel, USA TR Technology panel, higher efficiency, longer life
Vmp:39V – Voc:47.13V – Imp 12.3A – Isc:12.91A
25 years guarantee (CE TUV).
Strong anti-cracking, heat spot protection

Not all buildings can have a solar system installed

Ground support/PV bracket

Full set for Slope, Flat roof or Ground land optional

Including complete fittings

Wind load: 55m/s, snow load:1.5kn/m2

Structure: Anodized aluminum + stainless steel

Customized as per user’s requirement

Solar Panel Rack/Bracket

PV combiner/DC lightning protection

H4T-H10T 240VDC-360VDC optional
Multiple solar panel string inputs
PV array wiring simplified, controller protection,
Wide range of DC input voltages, max circuit voltage: 1000V

Reliable thunderstorm & surge protection

BESS of PV combiner   BESS of PV combiner debugging

Power conversion system (PCS)

Bi-directional power control and an inverter with multiple charging/discharging modes

PCS module machine automatically switches in 0 seconds

Power conversion system (PCS)

If the local public utility grid is connected, PCS will also integrate the urban grid into the BESS to become a third power source (photovoltaic, lithium battery, urban grid).

Lithium battery system

100AH-280AH / 811.2kWh-1505kWh optional

Design battery high voltage box – level 2 BMU, BCU architecture – air duct design + cooling fan

Communication:CAN, RS485, Wi-Fi, Bluetooth

Conversion Efficiency: >98%



Lithium-ion Battery Storage in Bess
Battery management system (BMS)+PMS

Real-time monitoring 1 set UPS Built-in web server for data logging and reporting for battery cell voltage, internal temperature (Negative pole), Impedance (Omic Value), SOC, and SOH Auto-balancing Batteries.

– Support SNMP, Modbus TCP protocol – Support RESTful API, JSON, XML format – Support SMS/Email alarm – Support 4G data upload to a 3rd party

PVMARS-BMS-system-for-battery
Heating, ventilation, and air conditioning (HVAC)

Heating optional, we will need to install other ventilation and air conditioning systems.

To dissipate heat generated by the lithium battery and PCS inside the BESS.

To avoid thermal runaway caused by the high temperature in the room, it will eventually result in a devastating explosion.

HVAC
Fire suppression system + Dynamic environment monitoring system

It is equivalent to adding a firewall, which is real-time video monitoring of all equipment inside the BESS.

For example HVAC, internal humidity (curve display), fire protection system, and intelligent control of BESS machine room access (providing security, anti-theft).

During 24-hour monitoring of multiple BESS operations, any abnormality will trigger an alarm, and technicians will be notified via dialing, SMS, email, and wireless modems.

FM-200(Novec 1230 Optional)

Fire suppression system
Ancillary equipment

Junction boxes, cabling, lighting, sensors, breakers

1) Copper row for connection to battery

2) 4mm2 PV cable, 25mm2 cable, 32mm2 cable etc.

3) full set of install tools, terminals and MC4 and 2P/4P switch box

Solar Cables and Accessory

BESS outdoor cabinet - IP54

Including A1 fireproof rock wool, 50MM thick heat insulation, heat preservation material

5ft, 10ft, 20ft and 40ft types are available

For the container appearance, our factory accepts OEM customization, and everything can be customized according to user needs.

500kVA 500kW BESS Solar Energy Generation for Industrial Plant
Supervisory Control and data acquisition (SCADA) + EMS

A centralized controller that collects data from the BESS and sends commands to the battery.

Remote Terminal Units (RTUs), located at the BESS, collect data from the battery.

The communication link connects the RTU and the central controller.

PVMARS will customize the SCADA data platform suitable for them to view data according to different users’ needs.

So that users can concentrate on one software platform to view and monitor all equipment inside BESS.

PV BESS connection topology
Solar panel packing
Solar panel packing
BESS full container ship out with UN3536
BESS full container ship out with UN3536

17years of professional installation team

1MW solar grid system installation
PVMars solar and wind power system case

Mr. Li, the founder of PVMARS Solar, has been to more than 32 countries for field surveys and solar energy storage system installation. He has trained 5 core solar system and wind turbine system installation experts, as well as a number of overseas installers.

If you need our overseas installation service, the engineer will arrive at the installation site within 10 days after the goods arrive at the port.

In addition, for users who purchase our photovoltaic energy products, wind turbine products, solar all in one street led light products, and solar air conditioning products, we will provide the paper version of installation instructions and electrical drawings with the shipment of goods, as well as the electronic version online.

For the needs of different users, to ensure the correct installation of the product, your dedicated engineers have been waiting online, at any time to video remote communication with you, patiently guide you step by step to complete the installation, and debug the operation of the machine etc. Ensure that you are protected from all hidden dangers.

By partnering with experienced PVMARS Solar, you can be confident that your installation project will be successful. This will meet your renewable energy needs for 25 years and more.

500kW solar power plant installation manual
500kW solar power plant installation manual

PVMARS Case Study Wall

20KW

15KW

5KW-50KW

150KW

Do you need solar clean energy system?

In this world, there are many clean energy sources, but only photovoltaicss is the most reliable power supply. The closest to our life is a kind of renewable energy everywhere. The future of photovoltaic energy will be because of technological innovation, and the cost will be lower, we will live an independent and free life.

PVMARS Solar is one of the most innovative manufacturers of solar energy storage technology.

This is for you to pursue safer, more convenient, and more competitive prices for solar products.

PVMARS Solar History

Us VS Them

Direct manufacturer pricing, no middleman markups.

We are able to offer durable equipment at competitive price.

Solar Products FAQ

Q: What does this PVMARS system include?

A: A complete off-grid or on-grid solar clean energy system, including all accessories required for installation.

Q: Can I customize one?

A: Of course, you can customize the most efficient solar power system. Your exclusive solar expert is waiting. To provide you with any energy solution, customized according to different power consumption, actual use of equipment, scenarios etc. Solar systems come in different configurations.

Q: Who is responsible for transportation? Or home delivery?

A: There will be dedicated staff responsible for your products’ production, packaging and shipping. To deliver goods safely to the destination port by sea or air. The entire process, including transportation and customs clearance, is handled by us. Europe, Asia, Africa to provide home delivery or nearby pickup service. Provide relevant packing and shipping documents and information on time.

Q: What is the lifetime of a solar power system?

A: The life of the solar panel is 25 years, the charger controller is 5-7 years, the inverter is 5-7 years, and the battery is 8-10 years. Our IOT monitors the installation and operation of your solar power system in real time to extend service life.

Q: Are there any protection measures for solar power overload, and how do electricity leaks, lightning strikes, and hail happen?

A: PVMARS Solar’s PV combiner box and inverter have overload safety functions. To protect each other, they will disconnect the connection with your equipment in the event of abnormal voltage, such as lightning strikes and leaks. After the voltage is restored automatically, the solar system will start automatically. Secondly, the photovoltaic module floor is made of excellent impact-resistant tempered glass. This glass can withstand 200Pa wind stress and 7200Pa snow stress after strict trial and test when passing EU certification.

Q: What can you expect from PVMARS Solar?

A: In addition to providing products, PVMARS solar also provides free on-site survey, customized design solutions, production, installation and maintenance one-stop services.
