50kW 50 kVA Wind Power and Solar Plant Hybrid for Nigeria

Get 50kW 50 kVA Wind Power and Solar Plant Hybrid with Best price comes with wind turbine, battery, solar panels. Create power in Remote areas/Factory.

MOQ: 1 set, accept OEM & ODM

Type: Hybrid solar wind power

Output voltage: 220V-380V-415V  Three phase

Payment: T/T, L/C, Paypal, Western Union

PVMARS energy storage technology factory, always with your needs as the core


PVMARS establishment time and advantages

16 years

Leading solar and wind energy storage technology

24 hours uninterrupted power supply solution

24 hours

Intelligent remote monitoring of 24-hour power supply

Meticulous and warm solar expert

24/7 online

We only care about how YOU feel
To your satisfaction

Manufacturer of solar power clean energy

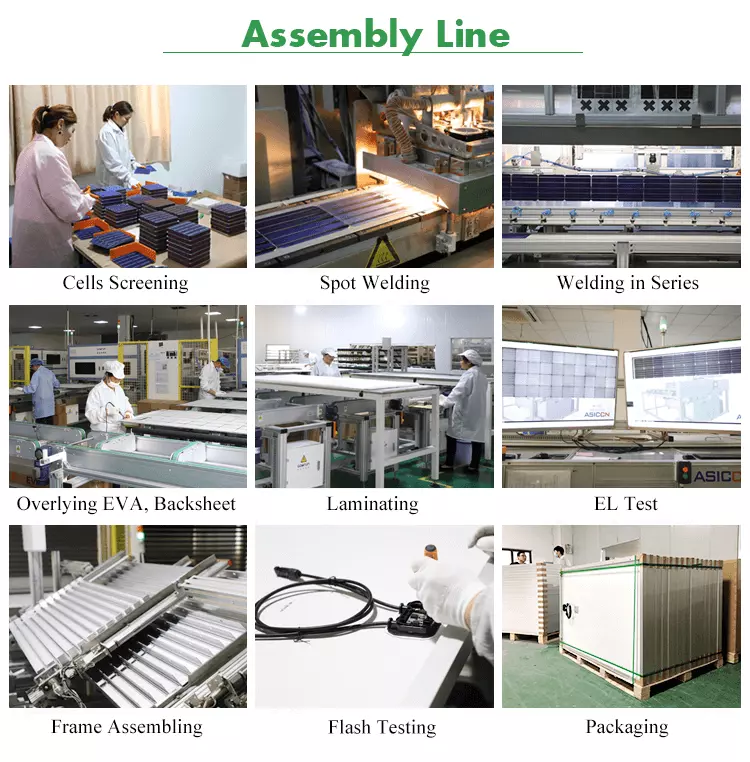

PVMARS Solar Factory -100% Lab

100% EL TESTING, 100% IV TESTING, 100% DIGITAL WORKSHOP

In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.



Global authoritative certification

PVMARS products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.



PVMARS Solar Energy Storage Factory Certificate Of Authority

Safety reminder for solar wind system

With PVMARS IoT, through your phone or computer view real-time performance data of your energy system, such as solar panel and wind power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your hybrid system.

At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!




Can power supply 220v and 380v devices at the same time?

3 phase IGBT Inverter for wind power system

PVMars three phase 380v-415vac

Three phase: 380Vac/400Vac±10%(customized 190Vac/200VAC)

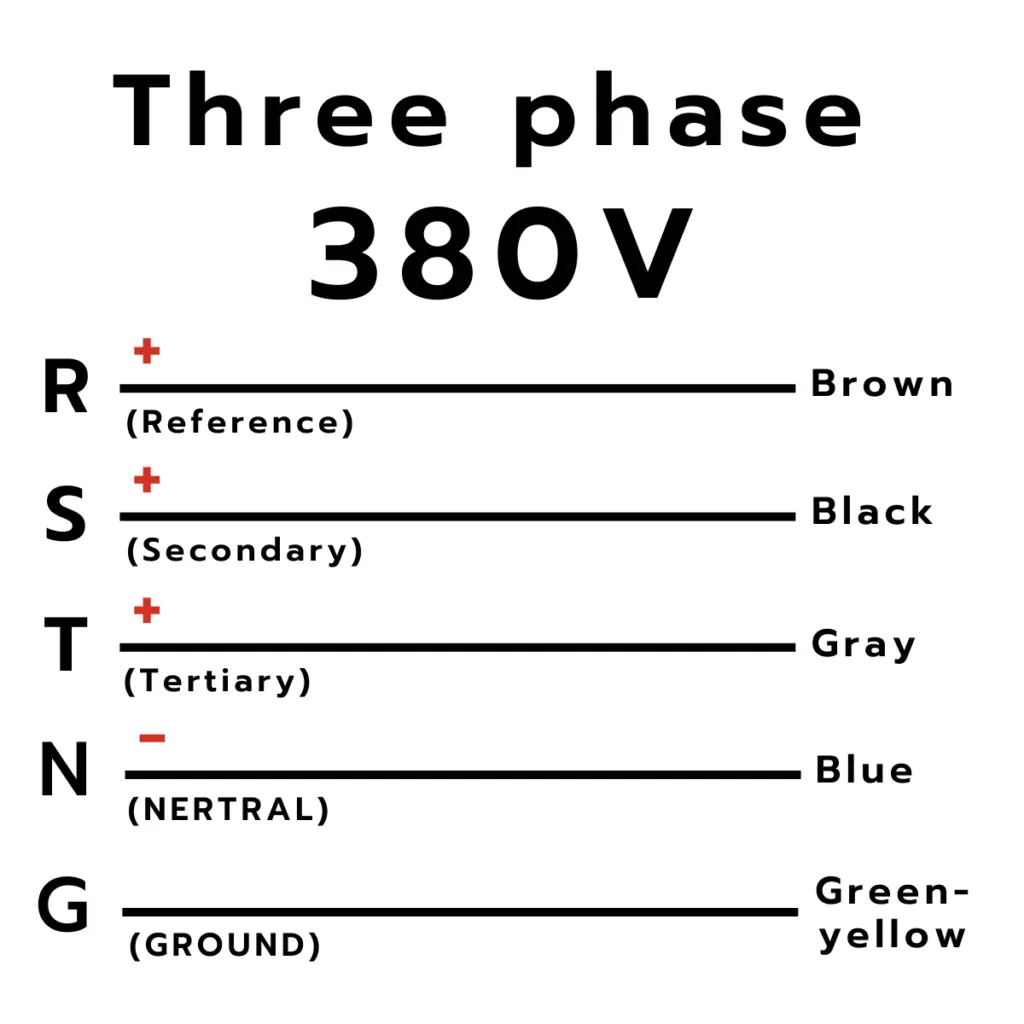

As the name implies, 3 phase AC voltage has at least three fire lines, and in these three fire lines in physics, we simply give different characters (there may be some differences between different countries, but generally defined as R, S, T).

R+ S + T = 380V or 400V (±5%-10% floating, can be customized for special voltages 180Vac/200Vac, etc.)

If you also have a 220v device, it is usually achieved by a zero line, and in logistics, we assign the character N

R+ N = 220v, S + N = 220v, T + N = 220v

We can use both three-phase and single-phase devices together in one Three-phase solar power system

For most 220VAC appliances, the voltage is single-phase. Such as air conditioners, fan, light, TV, and so on.

For most 380VAC-450VAC appliances, the voltage is three-phase. Such as motors, power pumps, central air conditioning, industrial equipment, and so on.

Your dedicated engineers are ready to start customizing your solar clean energy system!

50kW Hybrid Solar Wind Energy Generator System Description

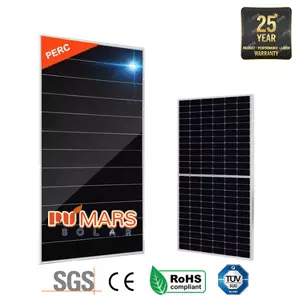

Maximum 600 Watts solar panel optional

Shingled/HJT solar panel, USA TR Technology panel, higher efficiency, longer life
Vmp:39V – Voc:47.13V – Imp 12.3A – Isc:12.91A
25 years guarantee (CE TUV).
Strong anti-cracking, heat spot protection

               Solar panel

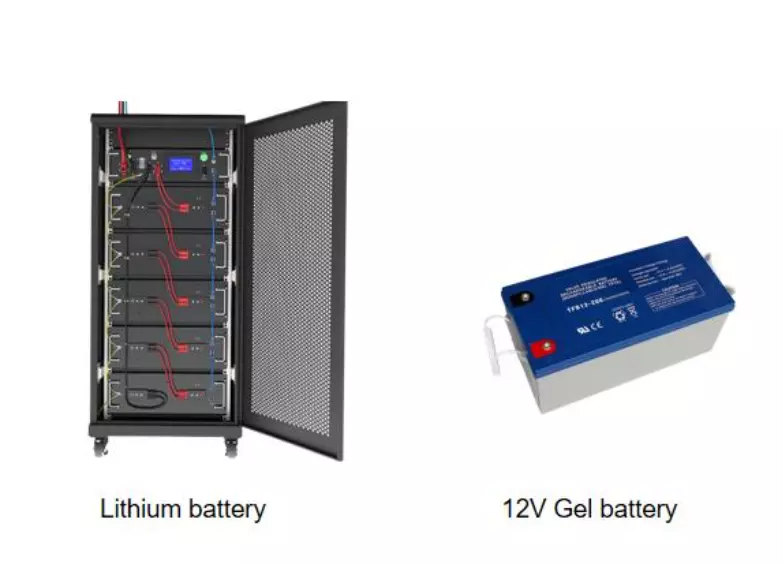

Battery

Capacity: 12V100Ah-250Ah gel battery

Or 360V100Ah-400Ah Lithium (LFP cell) battery –Stackable

The latest in through-wall welding and full-sealing technology.
More suitable for motor loads.
Service life: 8-10-15 years

Gel battery/lithium battery

50 kilowatt IGBT inverter

Three Phase Solar Inverter power:

50kW/360VDC-384VDC optional
AC charger 10-30A
100% Mitsubishi brand IGBT materials
Bypass function with AC charger, against short-circuit and over-load protection, high-voltage and low-voltage stable protection

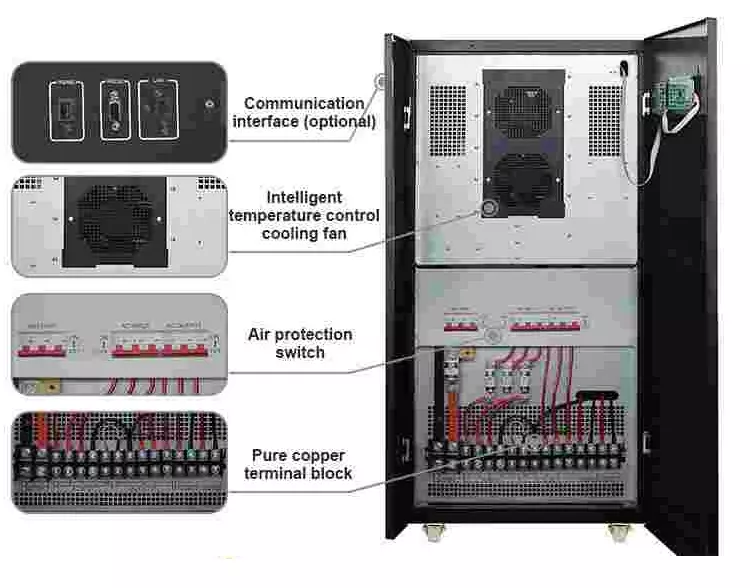

PVMARS solar-power-system-inverter-detail



Inverter appearance color can be selected

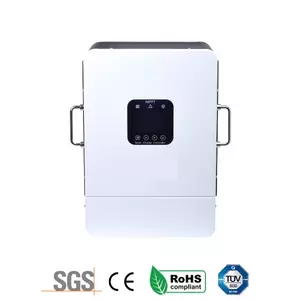

MPPT solar controller

Real MPPT solar controller

MPPT efficiency >99.9%, Max input voltage:800V various protection functions

MPPT solar controller

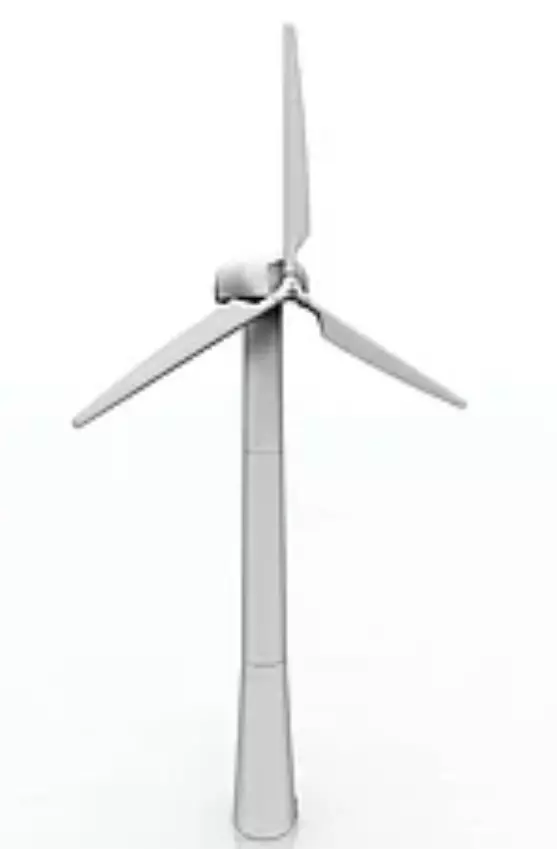

5kW/10kW/20kW/30kW Wind turbine/Windmill

Wind Power: 5kW-30kw/192V-240V-360V optional
Starting wind speed: 2-3m/s  Rated wind speed: 10-13m/s
Security wind speed: 40-60m/s  Rated speed: 185-300r/m

Wind Blade material: Extra-strong fiberglass                                  3 years warranty, 20 years use life

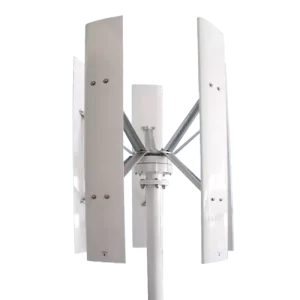

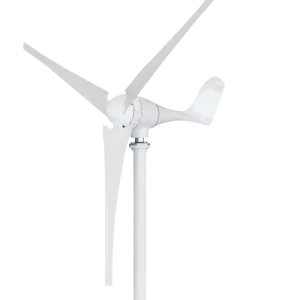

 Vertical wind turbineHorizontal axis wind turbine

Vertical-axis and horizontal-axis wind turbines are optional

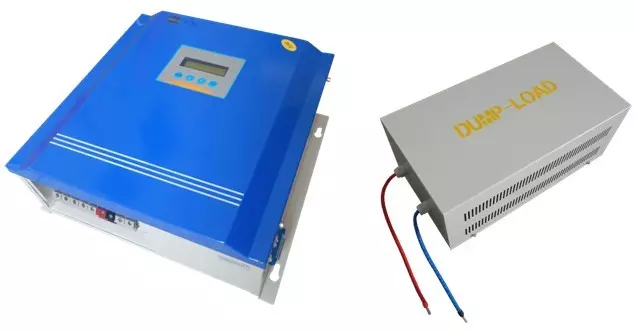

Wind controller with dump load

MPPT intelligent control

5kW-30kW wind power
360V intelligent control Lightning protection.

Wind turbine current limiting, Wind turbine automatic brake and manual brake.

Wind controller with dump load

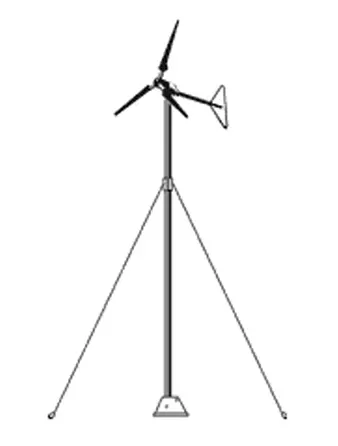

Guy cable pole/Stand alone tower optional

9m-12m height optional
It helps fasten wind generator in safe altitude.
Use steel material with rust prevention.
Easy to install

Guy cable poleStand alone tower for windmill

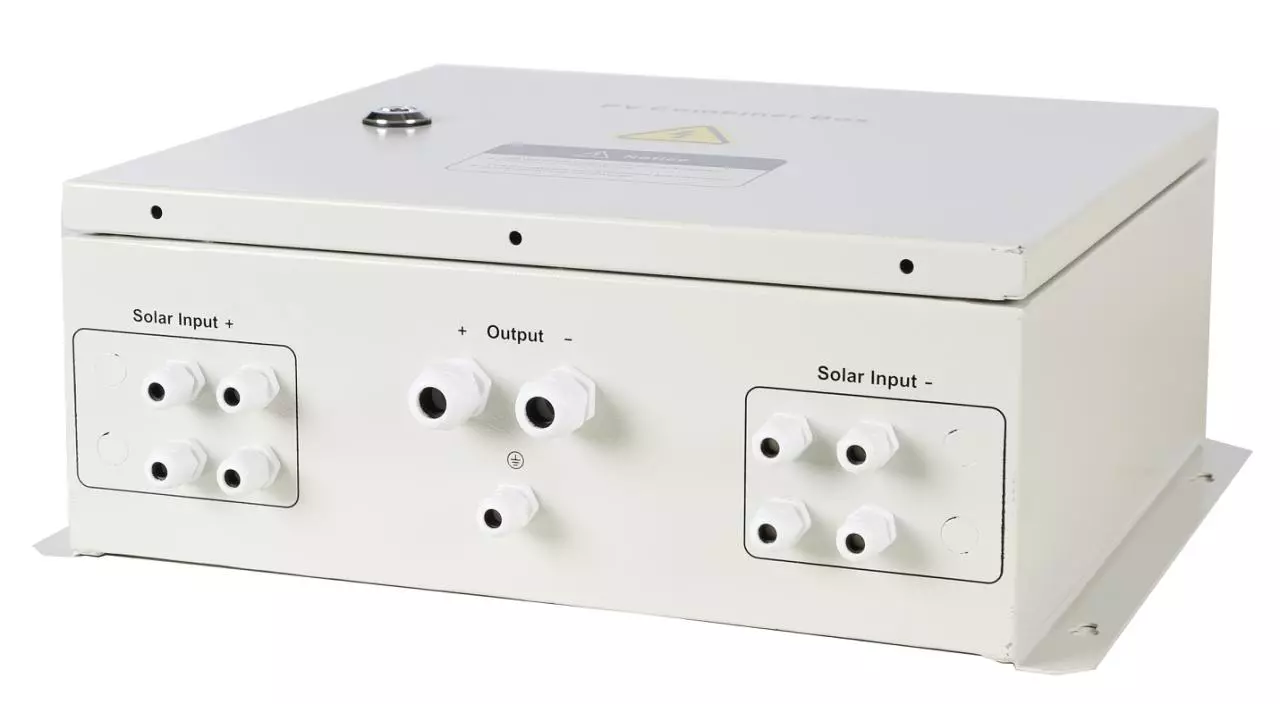

PV combiner

H4T-H10T 360VDC optional
Multiple solar panel string inputs
PV array wiring simplified, controller protection,
Wide range of DC input voltages, max circuit voltage: 1000V

Reliable thunderstorm & surge protection

PV combiner

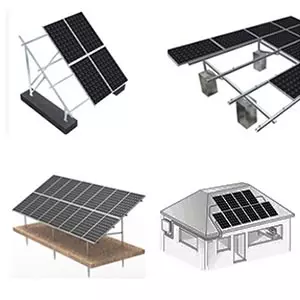

Solar Panel Rack/Bracket

Full set for Slope, Flat or Ground roof optional

Including complete fittings

Wind load: 55m/s, snow load:1.5kn/m2

Structure: Anodized aluminum + stainless steel

Can be customized as per user’s requirement

            Solar panel rack

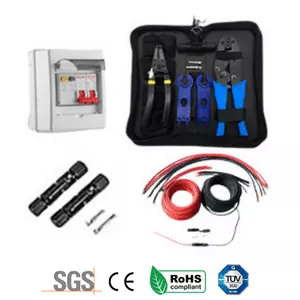

Cables and Accessory

1) Battery cables and Copper row for connection to battery

2) 4mm2 PV cable and 25mm2 cable

3) full set of install tools, terminals and MC4 and 2P100A switch box

              Cables and Accessory

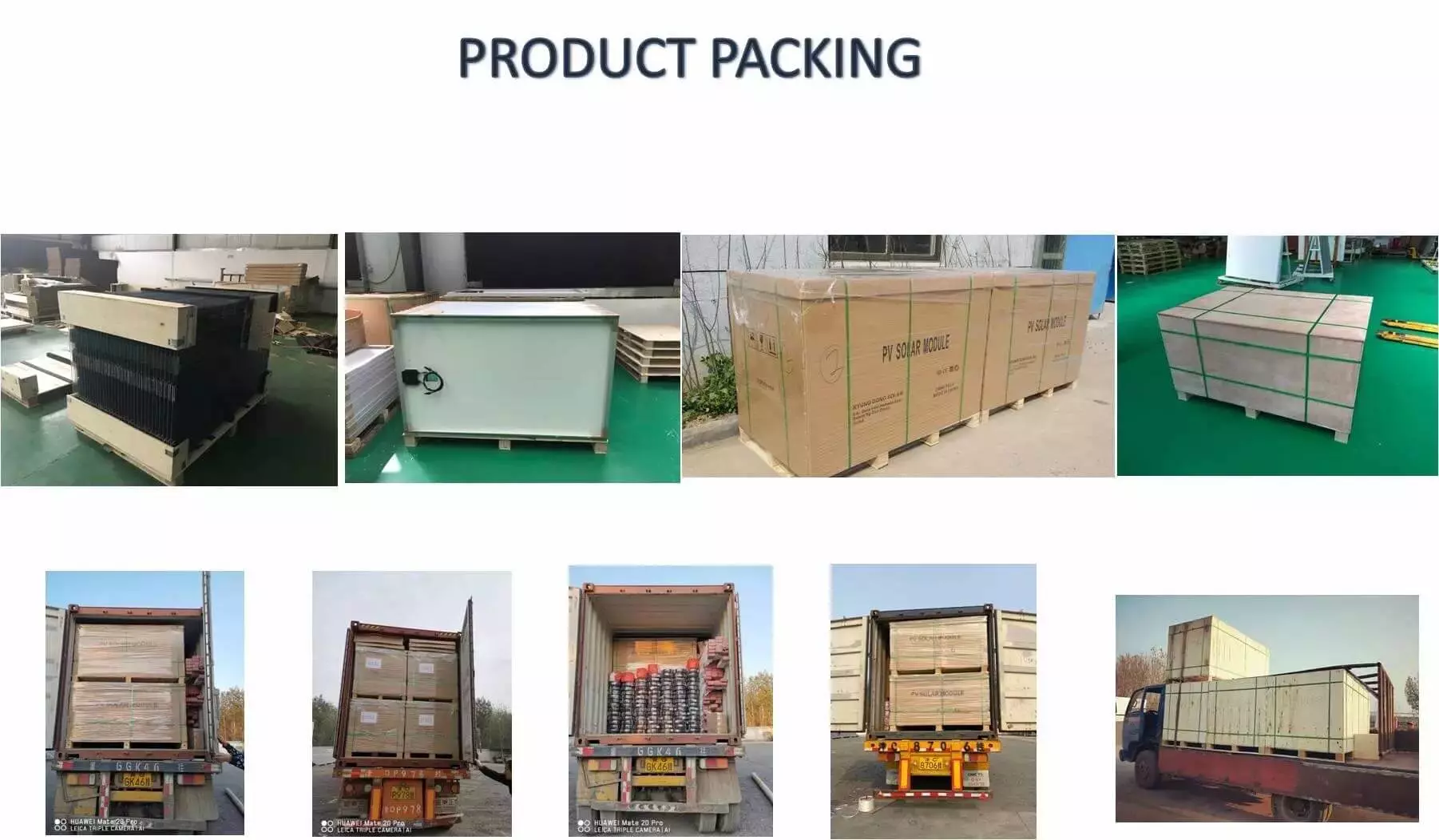

Packing

Before each loading and shipment, our factory has special personnel to check QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

Carton and Wooden box packing optional-Solar panel

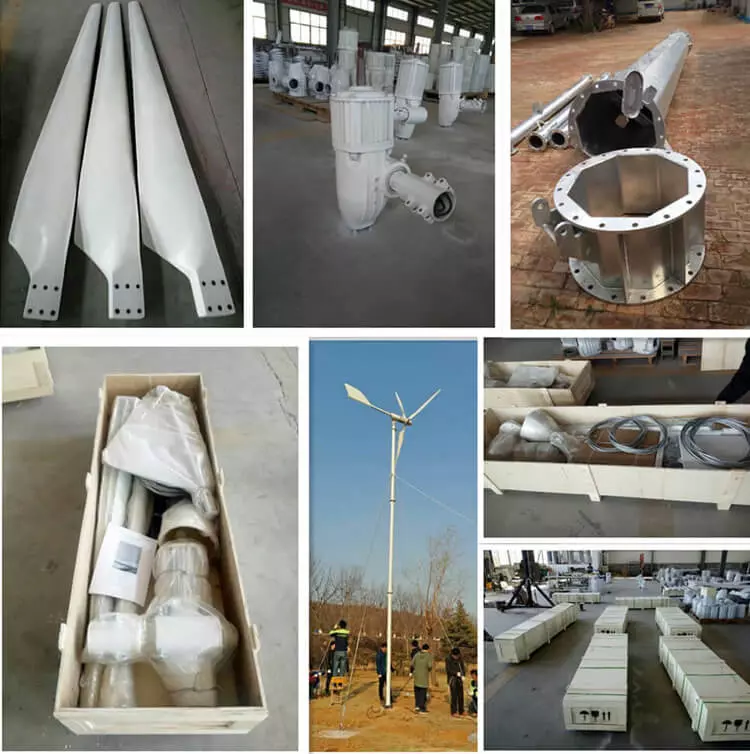

Wind turbine packing
Solar panel packing

Easy drawing of 50kW hybrid solar wind system

360vdc gel battery 50kw hybrid solar and wind energy storage system drawing↓

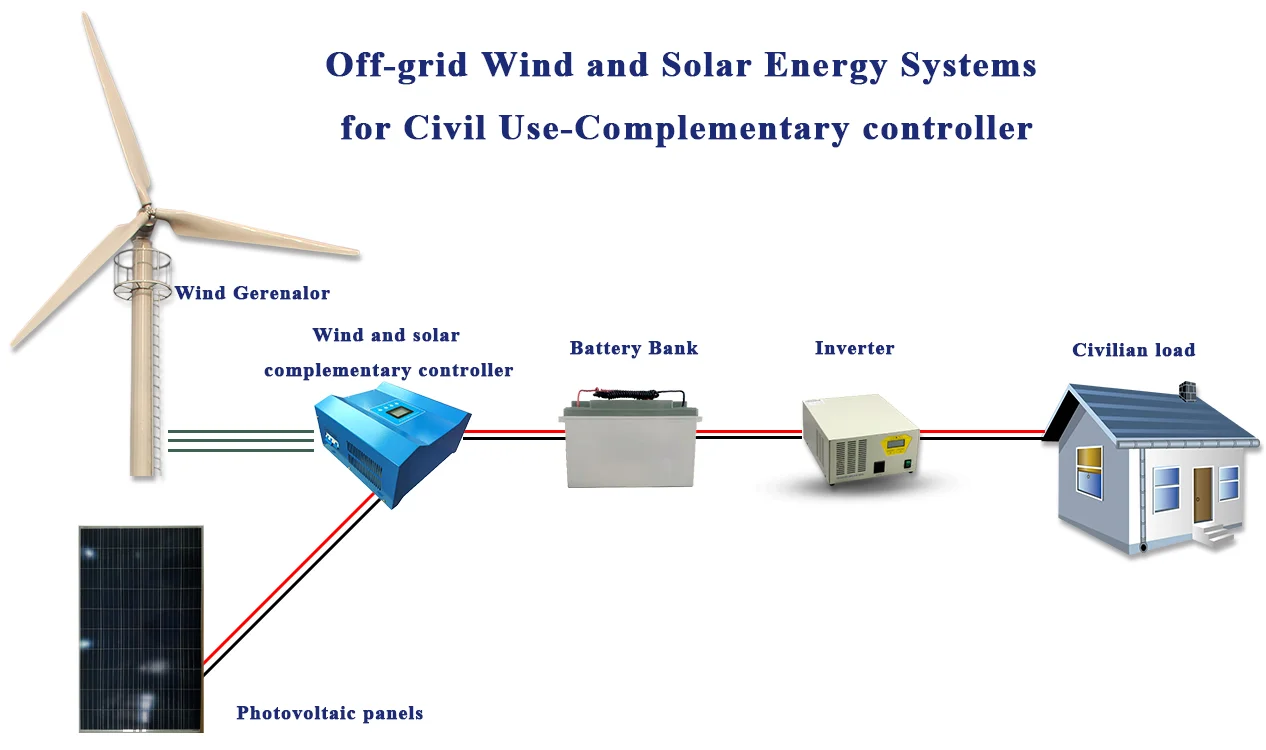

Off grid wind solar hybrid system for home use

More installation manual and video, please click here contact us

We have oversea installation service. The engineer will arrive at the installation site within 10 days after the goods arrived at port.

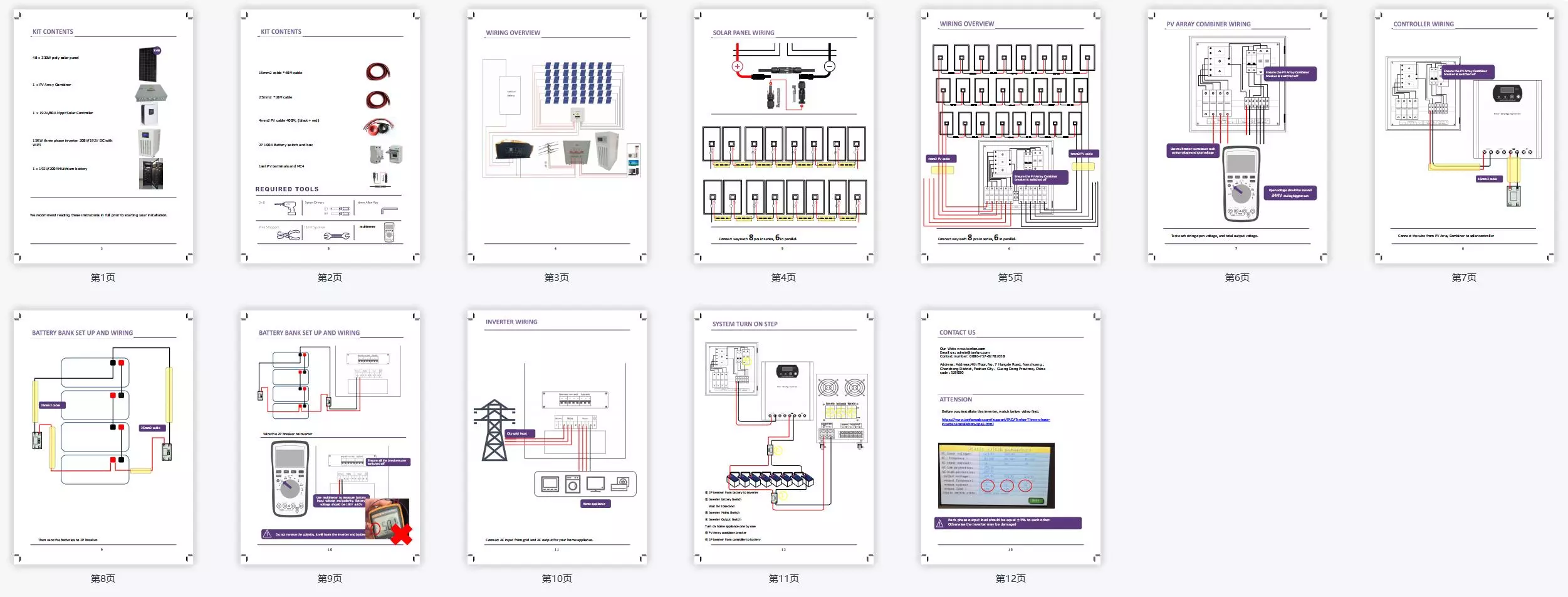

Installation manual
50kW hybrid solar wind power system installation manual

Wind Products FAQ

Q: Do wind turbines make noise? How to solve the noise problem?

A: The wind turbine noise is less than 40 decibels for indoor impact. It’s like the noise our pets (cats or dogs) make when they sleep outside our bedroom.

The impact on our daily life is almost zero.

Click the below picture to check the test video and learn how to solve the noise problem.

Wind turbine noise level



Q: Can I customize one?

A: Of course, you can customize the most efficient hybrid solar wind power system. Your exclusive expert is waiting. To provide you with any energy solution, customized according to different power consumption, actual use of equipment, scenarios etc. Solar wind systems come in different configurations.

Q: Where do I better install the wind turbine?

A: Wind turbines below 1kW can be installed on the roof. But those above 1kW are recommended to be installed at least 100m from the home. This is to ensure that there are no buildings or other obstructions higher than the windmill height near the wind turbine.

Distance of installed windmill

For installing the guy cable pole, please check below details of the tower picture. PVMARS wind turbine tower includes all installation parts, ensure you received goods completely.

details of the tower picture

Q: What is the estimated power production?

A: 5kW, 10kw, 20kW and 30kW wind turbine system will produce an estimated 30-60-120-180 kilowatt hours (kWh) per day, And if your wind speed is good, it will give you more power every day (click here about Kenya’s farm case to learn how to check local wind speed) , And here is the 5kW-10kW-20kW-30kW wind turbine power curve. The power is relative to the wind speed.

5kW wind turbine working curve

Wind power curve

20kW wind turbine working curve

30kW wind turbine working curve

Q: What can you expect from PVMARS Solar?

A: In addition to providing products, PVMARS solar also provides free on-site survey, customized design solutions, production, installation and maintenance one-stop services.
