Hybrid 5kW Solar Wind Generator

PVMARS’ high-quality all-in-one 5kw solar wind generator continues to generate electricity 24/7, 5kw wind solar hybrid system saves you 100% on electricity bills.

Residential or commercial solar wind turbine solution

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: 5kW solar wind generator hybrid system

Price Term: EXW

Can work with battery/city grid or diesel generator backup

Introduction of 5kW Solar Wind Generator

The renewable energy combination of the 5kW solar wind generator is currently the most economical, reliable, and mature technology for continuous power generation 24 hours a day.

During the day, when we open our eyes, we may see morning sunshine. The sun shares its heat unstintingly, allowing the solar panels in the 5kW solar wind turbine to absorb it and convert it into reliable electricity.

In the evening, you and the sun have finished their day’s work and enjoy the breeze on your way home. At the same time, your wind generator also rotates with the wind speed.

It uses such mechanical and kinetic energy to convert electricity to power your home, farm, resort, primary school, and other buildings.

Their function is not only to generate electricity but also to allow you to use electricity freely and enjoy a top-notch life every day.

In addition to solar panels and wind turbines, what else can PVMARS’s 5kw solar wind generator bring you?

What is included in a 5kw solar wind generator?

Item

Model

Description

Quantity

1

Solar Panel

Mono 550W TOPCon

6 pieces or Customized

2

Wind turbine

Horizontal axis 2kW wind turbine

1 set or Customized

3

Hybrid controller

2000W wind charge controller + 3500W input solar power

1 set

4

Pure Sine Wave Inverter

5kW IGBT inverter

1 set

5

Battery

12V200Ah gel battery or Lithium Battery optional

8 pieces

6

Mounting Support

Ground or Slope roof or Flat roof optional

6 sets or Customized

7

Guy cable pole

6 meters for fixed 2kW wind turbine

1 set or Customized

8

Cables and others

PV cables, wind cables and install tools

100 meters or Customized

Note: Installation and connection of 5kw solar wind generators require mounting support, a guy cable pole, wires, and other accessories.

PVMARS originally intended to provide the full set 5kw solar wind turbine system. There is no need to purchase other accessories locally to use them.

But they are auxiliary functions. If you don’t need them, contact [email protected] for a customized quotation. A customized solution for the 5kw solar wind generator will be provided within 1 hour at the fastest.

How much does a 5kW solar wind generator cost?

Based on the design of a 12v200ah gel battery, a complete 5kw solar wind turbine is priced at US$4,948. (Valid for 30 days)

If you need a quote for lithium battery design, please contact [email protected] to obtain it.

System connection diagram of a 5kw solar wind generator

The pictures below are just examples. If you want to know more details about the installation, please browse below:

5kw hybrid solar and wind energy system connection diagram

How much power can a 5kW solar wind generator produce?

The 5kW solar wind generator is suitable for households whose daily electricity consumption is greater than or equal to 30KWH.

We know that the power generation of this system is provided by solar panels and wind turbines, so PVMARS will describe them separately.

How many solar panels does a 5kW solar wind turbine need?

PVMARS provides monocrystalline and polycrystalline solar panels from 50w-600w.

Among them, monocrystalline N-type TOPCon solar panels are currently a popular option because their high conversion efficiency and low degradation rate make them more efficient than P-type solar panels.

We provide videos and parameters here for your reference.

A 5kW solar wind generator system is generally equipped with 6pcs 550W solar panels. We can customize it for you if you need other wattages.

Data sheet under STC Condition

Maximum power at STC(Pmax)

550 Watts

Optimum operating voltage (Vmp)

41.95V

Optimum operating current(Imp)

13.12A

Open-circuit voltage(Voc)

49.80V

Short-circuit current(Isc)

13.98A

Module efficiency(%)

23% (It is expected to reach 26% in 2027)

STC: Irradiance 1000W/㎡,Module temperature 25°℃,AM=1.5

NMOT:Irradiance 800W/㎡,wind speed:1m/s,Module temperature 20℃

Tolerance of Pm:0~+5W

This is laboratory data and may deviate from actual use.

Mechanical Parameters

Cell

N Type Mono-crystalline silicon solar cells

Cell Size

182mm*91mm

Cell Quantity

144Pcs(6*24)

Dimension of module

2279mmx1134mmx30mm

Weight

27.5kg

Junction Box

Separated Junction Box with 3 diodes

Output Cables

4mm2

Operating temperature

-40℃ to 85℃

Specifications are subject to change without further notification

Play Video about N type TOPCon solar panels

What is the wind turbine size for a 5kW wind-solar hybrid system?

PVMARS’s 5kw hybrid system has a 2kW horizontal axis. If your local average wind speed is higher than 5m/s and the installation space is limited, we can reduce the number of solar panels and increase the wind turbine’s power.

PVMARS’ hybrid wind-solar hybrid system is very flexible. As long as you tell us what challenges you are facing, our experienced engineers will provide you with a satisfactory design solution.

The following are the parameters of a 2kW horizontal axis wind generator:

Model

MF-2000

Rated power

2000W

Starting wind speed

2m/s

Rated voltage

48V/96V/120V/220V/240V

Rated wind speed

12m/s

Security wind speed

≤50m/s

Rated DC voltage

48V-96V

Number of blades

3

Wind blade diameter

2.5m

Control mode

Electromagnetic brakes

Generator type

Three-phase AC permanent magnet synchronous generator

Fuselage material

Reinforced die-cast aluminum+steel

Temperature

-40℃ ~ 80℃

Service life/Degree of protection

≥ 20 years / IP54

Packing material

Foam and plywood

N.W&G.W(kg)

35kg/40kg

Packing size

1320*400*300mm

Note: If the average wind speed is less than 5m/s, PVMARS has vertical axis and horizontal axis wind turbines.

Vertical-axis wind turbines cost more than horizontal axis. However, it is not limited by wind speed, and it can generate electricity even at a wind speed of 1m/s.

Click “Compare various types of wind turbines” to learn more.

How does the 5kW all-in-one wind-solar hybrid system send power to you?

An inverter is the core of the system.

Wind and sun power flow into the battery through the wind and solar hybrid controller, and the battery converts direct current.

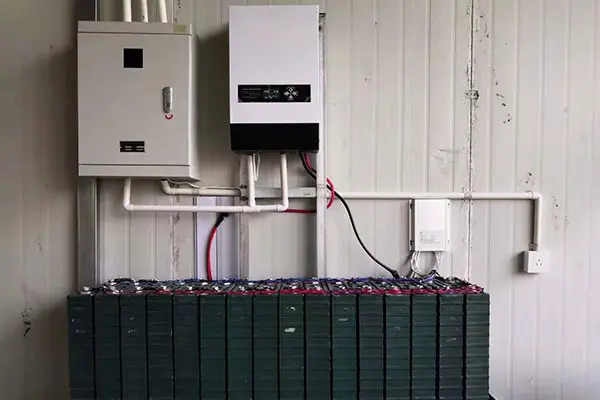

Off grid wind solar hybrid system for home use

 If your home appliances use AC power (such as refrigerators, air conditioners, washing machines), you need an inverter to convert DC power into AC power.

Among them, the inverter power is closely related to the electrical load power you use. if your house power exceeds 5kw. Our team can design a 10kw inverter and a 5kw solar wind turbine, or bigger.

PVMARS conventional inverters can choose between MOS tubes and IGBT modules, but we recommend IGBT modules.

The IGBT is more efficient than the MOS tube, but the price will also increase accordingly (if you’re interested in the MOS tube inverter, please contact us).

An IGBT (Insulated Gate Bipolar Transistor) is a super-electronic switch that withstands extremely high voltages.

The AC voltage of a typical house is 220V, and the paper-thin IGBT chip can withstand 6500V. And it can flow 200A of current!

It is very suitable for precision instruments, factories, hospitals, and large shopping malls.

This powerful IGBT inverter deserves your house. You deserve better!

The 5kw IGBT inverter has the following parameters:

Model

MT-5kW

Capacity(W)

5000W

DC voltage(V)

96

Input voltage(V)

160-265VAC / 90-127VAC

Input frequency

45~65Hz

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤3%

Low-voltage protection(V)

78

Over voltage protection(V)

120

Recharge current

20-30A

Transfer Efficiency Protections

90%–95%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity

protection and low-voltage protection

Overload

Overload 125% for 10 mins, 125%-150% for 1 min. automatically resume when the load becomes normal

Note: The output voltage designed for the 5kW IGBT inverter on this page is single-phase 220vac-240vac.

If you need three-phase 380v-415v or dual voltage 110v/220v, please leave a message about the required output voltage and email [email protected] to get a quote for customized output.

What is the battery capacity of a 5kW solar wind turbine?

The gel battery of this 5kw wind and solar hybrid system is designed with 8pcs 12v200ah batteries with a total capacity of 19.2kWh.

But to extend battery life, gel batteries have deep cycles of 70%-85%. That means the total capacity should be 13.44kWh.

The battery capacity is related to the time you use electrical appliances.

If you only turn on air conditioners, computers, TVs, refrigerators, and other loads at night, the 13.44kwh battery capacity is also sufficient. This is because wind turbines provide continuous power at night.

In addition, PVMARS also offers lithium battery options. If your installation location is limited and you want more power, our wall-mounted lithium battery is also an excellent choice.

Please contact our sales team for specific prices.

Wall mounted LFP battery design
Wall mounted lithium battery

How to install a 5kW solar wind generator?

PVMARS has detailed articles and installation manuals to choose from. Please click on the orange font to get them.

If you want someone to help you install, PVMARS has an overseas installation team. We have been to Turkey to install 5 sets of 30kw wind turbines.

It is worth noting that the team’s installation costs, round-trip air tickets, accommodation, food, and security will all be the buyer’s responsibility.

Therefore, PVMARS recommends setting up according to the installation manual we provide.

If it cannot be completed, you can contact us for online video assistance or arrange for an engineer to come to your address.

Other parts description

Hybrid controller with dump load

MPPT intelligent control

2000W wind power
96V intelligent control Lightning protection.

Wind turbine current limiting, Wind turbine automatic brake and manual brake.

Wind controller with dump load

MPPT solar controller

Real MPPT solar controller

MPPT efficiency >99.9%, Max input voltage:800V various protection functions

MPPT solar controller

Guy cable pole/Stand alone tower optional

For 2kw wind turbine, we suggest 6m or 9m height tower optional
It helps fasten the wind generator to safe altitude.
Use steel material with rust prevention.
Easy to install

Guy cable poleStand alone tower for windmill

Solar Panel Rack/Bracket

Full set for Slope, Flat or Ground roof optional

Including complete fittings

Wind load: 55m/s, snow load:1.5kn/m2

Structure: Anodized aluminum + stainless steel

Can be customized as per user’s requirement

            Solar panel rack

Cables and Accessory

1) Battery cables and Copper row for connection to battery

2) 4mm2 PV cable and 25mm2 cable

3) full set of install tools, terminals and MC4 and 2P100A switch box

              Cables and Accessory

5kW Solar Wind Turbine Packing Details

Before each loading and shipment, our factory has special personnel to check the QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

Carton and Wooden box packing optional-Solar panel

Solar panel packing
Wind turbine packing

Why choose PVMARS to provide a 5kw solar wind hybrid system?

Manufacturer of solar power clean energy

PVMARS Solar Factory -100% Lab

100% EL TESTING, 100% IV TESTING, 100% DIGITAL WORKSHOP

In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.



Global authoritative certification

PVMARS products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.



PVMARS Solar Energy Storage Factory Certificate Of Authority
