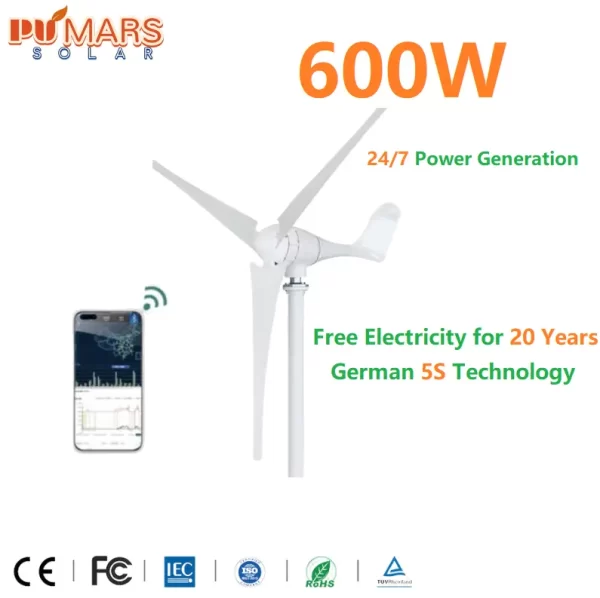

PVMars provides a world-class 600w wind turbine with a controller, IGBT inverter, and batteries. Full set 600 watts wind plant for home, villa, or farm.
Price Term: EXW
Place Of Origin: China
MOQ: 1 set, accept OEM & ODM
Type: 600W horizontal wind turbine
Home or Commercial wind power storage solution
Can work with solar/battery/grid/generator and led light
We can divide it into many types of wind turbines based on different axial directions. (Click on the orange font for more information).
PVMARS is committed to customers receiving complete products. If there are any missing parts or quality issues, you can check our after-sales policy and enter your money protection mechanism.
Tips: 600W = 600 watts
1) PVMARS’s horizontal axis wind turbines have tail rudders. These rudders can automatically adjust the windward angle to 360°, without fear of wind direction changes. Increase power generation.
2) The wind blades are reinforced with fiberglass, which can withstand violent storms of more than 40m/s.
3) Using a three-phase AC permanent magnet synchronous generator, it can work safely in a cold environment of -40°C.
PVMARS can add color to wind blades according to your local environment, reducing bird deaths.
Why can adding color protect the local ecological environment? Click on the orange font to learn 8 cool facts about wind turbines
More specific parameters are as follows:
Model | MF-600 |
Rated power | 600W |
Starting wind speed | 2m/s |
Rated voltage | 24V/48V/96V |
Rated wind speed | 12m/s |
Security wind speed | ≤50m/s |
Rated DC voltage | 12V-24V-48V |
Number of blades | 3 or 5 |
Wind blade diameter | 1.65m |
Control mode | Electromagnetic brakes |
Generator type | Three-phase AC permanent magnet synchronous generator |
Fuselage material | Reinforced die-cast aluminum + Reinforced nylon fiber |
Temperature | -40℃ ~ 80℃ |
Service life/Degree of protection | ≥ 20 years / IP54 |
Packing material | Foam and carton |
N.W&G.W(kg) | 16kg/17kg |
Packing size | 930*360*270mm |

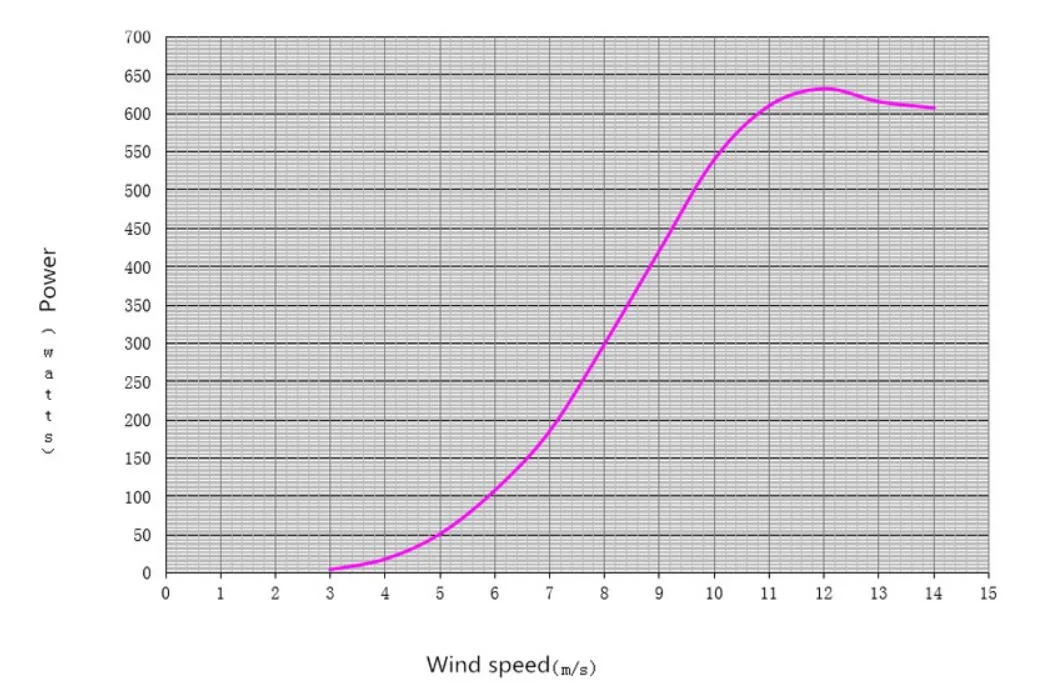

From the power curve table below, we know that the wind turbine’s energy changes as the wind speed changes.
When the wind speed reaches 10.5m/s, it can generate 600W of power.
But the wind speed is not 10.5m/s all the time, so we calculate the average wind speed.
With an average wind speed of 5m/s, a 600w wind turbine can generate 3.6kwh per day.
What should I do if the wind speed is not enough?
You may consider using a 1kw wind-solar hybrid system
600W wind turbines cost US$195. (valid for 30 days).
Note: When confirming your order, please contact our sales team to get the latest price.
While 600W wind turbines aren’t massive, they require a decent amount of space, considering two main factors:
1. Rotor diameter: This is the size of the circle swept by the blades when spinning. 600W turbines have diameters of 2 to 3 meters (6.5 to 9 feet). Imagine a circle that covers the ground wide – that’s the minimum horizontal space needed for safe operation.
2. Tower height: To capture stronger winds, the turbine needs to be placed high up. 600W turbines typically sit on towers ranging from 5 to 6 meters (16 to 20 feet) tall. This adds to the vertical space requirement.
Therefore, the total footprint of a 600W wind turbine can vary depending on the specific model.
However, it’s generally within a circle of 5-6 meters radius and a height of 2-3 meters from the tower base to the blade tip.
Football fields are 31 meters (34 yards) long and 29 meters (32 yards) wide.
There’s no way a 600W wind generator will cover an entire football field, but it won’t take up most of the space either.
A typical single-family home has a lot size of around 600-1000 square meters (6,500-10,800 square feet). A 600W turbine could potentially fit on such a lot, depending on the layout and zoning regulations.
Remember, these are just general guidelines. Always consult with our professionals to determine the exact space requirements for a specific 600W turbine model and your intended location.
They will consider factors like wind patterns, zoning restrictions, and safety clearances to ensure proper placement.
For details on how to install a 600W wind generator, read on.
Please watch the video below.
The 600W wind turbine noise level is about 45 decibels, so it does not affect your daily life or sleep.
Maybe the language is too pale. You can watch the video below and listen to the actual sound:
Wind turbines are the main body of power generation and require current conversion and transmission through wind controllers, inverters, batteries, etc.
Moreover, wind, like solar energy, has intermittent windlessness. Once there is no wind, the wind turbine cannot generate electricity.
Therefore, if your local area does not have or does not want to use a public utility grid, connecting the wind turbine to the battery is currently the most economical and convenient option.
Among them, inverters are the most critical in wind power systems. If you are interested, please check below.
Model | MS-600W |
Capacity(W) | 600W |
DC voltage(V) | 12 or 24 |
Input voltage(V) | 160-265VAC / 90-127VAC |
Input frequency | 45~65Hz |
Output voltage | Four steps AVR, 110V/120V/220V/230V for optional |
Output wave form | Pure sine wave |
THD | ≤3% |
Surge rating (20ms) | 1000W |
Capable of starting electric motor | 0.5HP |
Recharge current | 0-35A (Set by yourself) |
Transfer Efficiency Protections | 90%–95% |
Protections | Protection against short-circuit, overload, high-voltage, reverse polarity protection and low-voltage protection |
Overload | Overload 105% for 10 mins, 110%-115% for 1 min. automatically resume when the load becomes normal |
The inverter is the heart of the system.
By converting wind and solar energy into direct current (DC), a hybrid controller converts them into electricity.
To supply our house appliances with electricity, we need an inverter to convert DC power into AC power.
You will be able to live a more comfortable off-grid life if you select a good inverter.
Note: The output voltage designed for the 600W inverter on this page is single-phase 110vac-220vac-240vac.
If you need dual voltage 110v/220v, please feel free to leave a message about the required output voltage and email [email protected] to get a quote for customized output.
No, because the battery is DC power and the 600W wind turbine is three-phase AC power.
The connection between them requires a wind controller to function as a DC-to-AC converter. This way, the battery can fully receive the 600w wind turbine power.
The battery capacity for a regular 600W wind turbine system is 4kWh. The battery capacity is closely related to the duration of your electrical load.
If you need a longer backup time, contact our professional to customize a system that meets your needs.
The price of a 600W wind power plant is US$1,036 – the battery is gel. (valid for 30 days).
If you need lithium battery design, please send an email to [email protected] for consultation.
MPPT intelligent control
600W wind controller
12Vdc-24Vdc-48Vdc intelligent control Lightning protection.
Wind turbine current limiting, Wind turbine automatic brake, and manual brake.
We suggest a 3m or 6m height tower for a 600w wind turbine.
It helps fasten the wind generator to a safe altitude.
Use steel material with rust prevention.
Easy to install
Before each loading and shipment, our factory has special personnel to check the QC inspection of qualified products.
They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.
Ensure that you receive complete and correct goods at the end.
Horizontal axis wind turbines are composed of wind blades, wheel housings, nacelles, tail fins, etc.
This 600W wind turbine from PVMARS will be assembled and tested in the production factory.
You only need to set it up according to the installation manual provided by us to achieve off-grid living.
We also provide overseas installation services. Please fill in the form if required.
PVMARS products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.
Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.
With PVMARS IoT, through your phone or computer view real-time performance data of your energy system, such as solar panel and wind power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your hybrid system.
At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!
