0 Electricity bill | 0 Noise with Energy Storage System

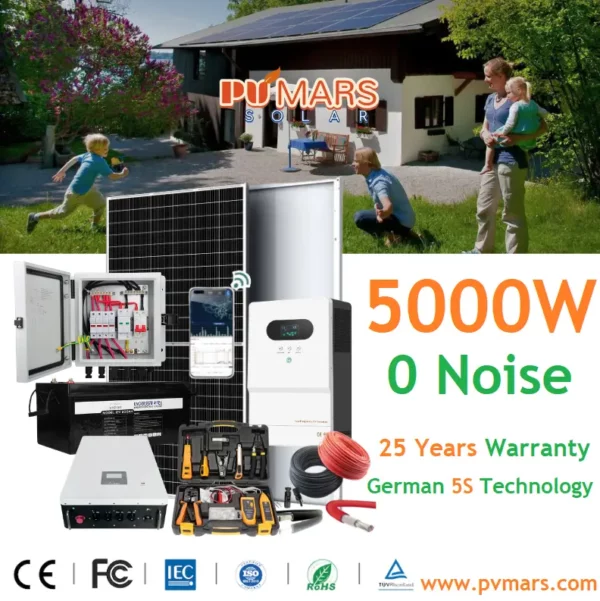

Buy 5kv 5kw Off Grid Home Solar System

Factory Price for 5kv 5kW Off Grid Home Solar System includes Hybrid Inverter 5000W Single Phase, Solar Panels, combiner, Solar Controller, and batteries

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: Off-grid with battery back up

Output voltage: 220V or 380V – Single/three phase

Payment: T/T, L/C, Paypal, Western Union

Manufacturer of solar power clean energy

PVMARS solar Factory -100% Lab

100% EL TESTING, 100% IV TESTING, 100% DIGITAL WORKSHOP

In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.



Global authoritative certification

PVMARS solar products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.



PVMARS Solar Energy Storage Factory Certificate Of Authority
Real-time remote monitoring of the safe operation of solar energy system

Safety reminder for solar system

With PVMARS solar IoT, through your phone or computer view real-time performance data of your solar system, such as solar panel power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your solar system.

At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!




How do 220v and 380v AC output voltages differ?

PVMars single phase 220v-240vac

Single phase: 110V/120V/220V/230V/240V ±5%

PVMars three phase 380v-415vac

Three phase: 380Vac/400Vac±10%(customized 190Vac/200VAC)

For most 220VAC appliances, the voltage is single-phase. Such as air conditioners, fan, light, TV, and so on.

For most 380VAC-450VAC appliances, the voltage is three-phase. Such as motors, power pumps, central air conditioning, industrial equipment, and so on.

Your dedicated engineers are ready to start customizing your solar clean energy system!

5000 watt solar generator Load reference

5000 watt solar generator Load Reference
Load NameLoad Rated PowerQTYTotal Rated Power

lights

11W

10

110

Fan

80W

2

160

Computer(LCD display)

150W

1

150

printer

125W

1

125

Fax machine

75W

1

75

refrigerator

50W

1

300

Washing machine

150W

1

150

Microwave

750W

1

750

Electric cooker

150W

1

150

Air conditioner(1HP)

750W

1

2250

Satellite TV receiver/VCD

25W

1

25

Color TV(32 inch)

150W

1

150

Water pump

20W

1

120

Total4515W

Remark: Refrigerator, Air conditioner and water pump are inductive load, start working power is 3-6 times more than normal power, in the process of use, turn on the inductive load first


5kW Off Grid Home Solar System Description

Maximum 600 Watts solar panel optional

Shingled/HJT solar panel, USA TR Technology panel, higher efficiency, longer life
Vmp:39V – Voc:47.13V – Imp 12.3A – Isc:12.91A
25 years guarantee (CE TUV).
Strong anti-cracking, heat spot protection

Production solar power system

Solar battery

Capacity: 12V100Ah-250Ah gel battery

Or 51.2V50Ah-400Ah Lithium (LFP cell) battery –Stackable

The latest in through-wall welding and full-sealing technology.
More suitable for motor loads.
Service life: 8-10-15 years

5000Watts Solar inverter

Single/Three Phase Hybrid Solar Inverter power: 5.5kW/48VDC-96VDC

Operating Voltage MPPT solar controller Range: 120-450 VDC  Max. PV Array Power: 6000W

AC charger: 100A  Max. Charge Current: 100A

Waveform: Pure Sine Wave
100% Mitsubishi brand IGBT materials

Bypass function with AC charger, against short-circuit and over-load protection, high-voltage and low-voltage stable protection

High frequency inverter and power frequency inverter are optional

PVMars' inverter combines advanced AVR

PV combiner box

H4T-H10T 220VDC-360VDC optional

Multiple solar panel string inputs
PV array wiring simplified, controller protection,
Wide range of DC input voltages, max circuit voltage: 1000V
Reliable thunderstorm & surge protection

Until the bad weather has passed, turn it on again, according to the PVMars usage instructions, and check the usage one by one.

Solar Panel Rack/Bracket

Full set for Slope, Flat or Ground roof optional

Including complete fittings

Wind load: 55m/s, snow load:1.5kn/m2

Structure: Anodized aluminum + stainless steel

Can be customized as per user’s requirement

Solar Panel Rack/Bracket

Solar Cables and Accessory

1) Copper row for connection to battery

2) 4mm2 PV cable 100M, 25mm2 cable 50M

3) full set of install tools, terminals and MC4 and 1P100A switch box

Solar Cables and Accessory

Solar panel packing



Carton and Wooden box packing optional

Before each loading and shipment, our factory has special personnel to check QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

More installation manual and video, please click here contact us

We have oversea installation service. The engineer will arrive at the installation site within 10 days after the goods arrived at port.

Installation-manaul

How do I choose a off-grid system?

House

School

Farm

Hospital

Hotel

Office

Village/Town

Factory

PVMARS Case Study Wall

Do you need solar clean energy system?

In this world, there are many clean energy sources, but only photovoltaicss is the most reliable power supply. The closest to our life is a kind of renewable energy everywhere. The future of photovoltaic energy will be because of technological innovation, and the cost will be lower, we will live an independent and free life.

PVMARS Solar is one of the most innovative manufacturers of solar energy storage technology. This is for you to pursue safer, more convenient, and more competitive prices for solar products.

PVMARS Solar History

Us VS Them

Direct manufacturer pricing, no middleman markups.

We are able to offer durable equipment at competitive price.

Solar Products FAQ

Q: What does this PVMARS system include?

A: A complete off-grid or on-grid solar clean energy system, including all accessories required for installation.

Q: Can I customize one?

A: Of course, you can customize the most efficient solar power system. Your exclusive solar expert is waiting. To provide you with any energy solution, customized according to different power consumption, actual use of equipment, scenarios etc. Solar systems come in different configurations.

Q: Who is responsible for transportation? Or home delivery?

A: There will be dedicated staff responsible for your products’ production, packaging and shipping. To deliver goods safely to the destination port by sea or air. The entire process, including transportation and customs clearance, is handled by us. Europe, Asia, Africa to provide home delivery or nearby pickup service. Provide relevant packing and shipping documents and information on time.

Q: What is the lifetime of a solar power system?

A: The life of the solar panel is 25 years, the charger controller is 5-7 years, the inverter is 5-7 years, and the battery is 8-10 years. Our IOT monitors the installation and operation of your solar power system in real time to extend service life.

Q: Are there any protection measures for solar power overload, and how do electricity leaks, lightning strikes, and hail happen?

A: PVMARS Solar’s PV combiner box and inverter have overload safety functions. To protect each other, they will disconnect the connection with your equipment in the event of abnormal voltage, such as lightning strikes and leaks. After the voltage is restored automatically, the solar system will start automatically. Secondly, the photovoltaic module floor is made of excellent impact-resistant tempered glass. This glass can withstand 200Pa wind stress and 7200Pa snow stress after strict trial and test when passing EU certification.

Q: What can you expect from PVMARS Solar?

A: In addition to providing products, PVMARS solar also provides free on-site survey, customized design solutions, production, installation and maintenance one-stop services.
