0 Electricity bill | 0 Noise with Energy Storage System

30kW 30kVA Solar Panel with Inverter and Battery Price

30kW Solar Panel with Inverter and Battery Price-Excellent quality, 25 years life span, and help you create power in remote areas. Solve power shortage.

Place Of Origin: China

MOQ: 1 set, accept OEM & ODM

Type: Off-grid with battery back up

Output voltage: 220V or 380V – Single/three phase

Payment: T/T, L/C, Paypal, Western Union

PVMARS Solar Energy storage technology factory, always with your needs as the core



PVMARS solar Factory -100% Lab

100% EL TESTING, 100% IV TESTING, 100% DIGITAL WORKSHOP

In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.


Manufacturer of solar power clean energy
PVMARS Solar Energy Storage Factory Certificate Of Authority

Global authoritative certification

PVMARS solar products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.

Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.




Safety reminder for solar system

With PVMARS solar IoT, through your phone or computer view real-time performance data of your solar system, such as solar panel power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your solar system.

At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!




Real-time remote monitoring of the safe operation of solar energy system

Can power supply 220v and 380v devices at the same time?

PVMars single phase 220v-240vac
Single phase: 110V/120V/220V/230V/240V ±5%
3 phase IGBT Inverter for wind power system

As the name implies, 3 phase AC voltage has at least three fire lines, and in these three fire lines in physics, we simply give different characters (there may be some differences between different countries, but generally defined as R, S, T).

R+ S + T = 380V or 400V (±5%-10% floating, can be customized for special voltages 180Vac/200Vac, etc.)

If you also have a 220v device, it is usually achieved by a zero line, and in logistics, we assign the character N

R+ N = 220v, S + N = 220v, T + N = 220v

We can use both three-phase and single-phase devices together in one Three-phase solar power system—But Single-phase solar system without 3 phase voltage, so only can work in three-phase solar system.

For most 220VAC appliances, the voltage is single-phase. Such as air conditioners, fan, light, TV, and so on.

For most 380VAC-450VAC appliances, the voltage is three-phase. Such as motors, power pumps, central air conditioning, industrial equipment, and so on.

Your dedicated engineers are ready to start customizing your solar clean energy system!

30kW Solar Power System Description

Maximum 600 Watts solar panel optional

Shingled/HJT solar panel, USA TR Technology panel, higher efficiency, longer life
Vmp:39V – Voc:47.13V – Imp 12.3A – Isc:12.91A
25 years guarantee (CE TUV).
Strong anti-cracking, heat spot protection

Production solar power system

Solar battery

Capacity: 12V100Ah-250Ah gel battery

Or 51.2V50Ah-400Ah Lithium (LFP cell) battery –Stackable

The latest in through-wall welding and full-sealing technology.
More suitable for motor loads.
Service life: 8-10-15 years

PV combiner box

H4T-H10T 240VDC-384VDC optional
Multiple solar panel string inputs
PV array wiring simplified, controller protection,
Wide range of DC input voltages, max circuit voltage: 1000V
Reliable thunderstorm & surge protection

Until the bad weather has passed, turn it on again, according to the PVMars usage instructions, and check the usage one by one.

30kW Solar inverter

Single/Three Phase Solar Inverter power:

30kW/240VDC-360VDC-384VDC optional
AC charger 10-30A
100% Mitsubishi brand IGBT materials
Bypass function with AC charger, against short-circuit and over-load protection, high-voltage and low-voltage stable protection

500kw-solar-power-system-inverter-detail

Inverter appearance color can be selected

MPPT solar controller

Real MPPT solar controller

MPPT efficiency >99.9%, Max input voltage:800V various protection functions

MPPT solar controller

Solar Panel Rack/Bracket

Full set for Slope, Flat or Ground roof optional

Including complete fittings

Wind load: 55m/s, snow load:1.5kn/m2

Structure: Anodized aluminum + stainless steel

Can be customized as per user’s requirement

Solar Panel Rack/Bracket

Solar Cables and Accessory

1) Copper row for connection to battery

2) 4mm2 PV cable 800M, 25mm2 cable 100M

3) full set of install tools, terminals and MC4 and 2P200A switch box

Solar Cables and Accessory

BMS System For Battery

Real-time monitoring 1 set UPS Built-in web server for data logging and reporting for battery cell voltage, internal temperature (Negative pole), Impedance (Omic Value), SOC, and SOH Auto-balancing Batteries.

– Support SNMP, Modbus TCP protocol – Support RESTful API, JSON, XML format – Support SMS/Email alarm – Support 4G data upload to a 3rd party

BMS System For The Batteries

Solar panel packing



Carton and Wooden box packing optional

Before each loading and shipment, our factory has special personnel to check QC inspection of qualified products.

They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.

Ensure that you receive complete and correct goods at the end.

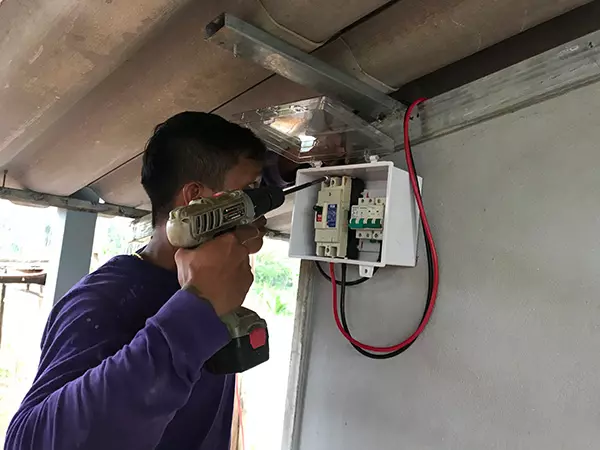

17 years of professional installation team

Solar power system installation team

Mr. Li, the founder of PVMARS Solar, has been to more than 32 countries for field surveys and solar energy storage system installation. He has trained 5 core solar system and wind turbine system installation experts, as well as a number of overseas installers.

If you need our overseas installation service, the engineer will arrive at the installation site within 10 days after the goods arrive at the port.

In addition, for users who purchase our photovoltaic energy products, wind turbine products, solar all in one street led light products, and solar air conditioning products, we will provide the paper version of installation instructions and electrical drawings with the shipment of goods, as well as the electronic version online.

For the needs of different users, to ensure the correct installation of the product, your dedicated engineers have been waiting online, at any time to video remote communication with you, patiently guide you step by step to complete the installation, and debug the operation of the machine etc. Ensure that you are protected from all hidden dangers.

By partnering with experienced PVMARS Solar, you can be confident that your installation project will be successful. This will meet your renewable energy needs for 25 years and more.

500kW solar power plant installation manual
30kW solar system installation manual

How do I choose a off-grid solar system?

House

School

Farm

Hospital

Hotel

Office

Village/Town

Factory

PVMARS Case Study Wall

Do you need solar clean energy system?

In this world, there are many clean energy sources, but only photovoltaicss is the most reliable power supply. The closest to our life is a kind of renewable energy everywhere. The future of photovoltaic energy will be because of technological innovation, and the cost will be lower, we will live an independent and free life.

PVMARS Solar is one of the most innovative manufacturers of solar energy storage technology. This is for you to pursue safer, more convenient, and more competitive prices for solar products.

PVMARS Solar History

Us VS Them

Direct manufacturer pricing, no middleman markups.

We are able to offer durable equipment at competitive price.

Solar Products FAQ

Q: What does this PVMARS system include?

A: A complete off-grid or on-grid solar clean energy system, including all accessories required for installation.

Q: Can I customize one?

A: Of course, you can customize the most efficient solar power system. Your exclusive solar expert is waiting. To provide you with any energy solution, customized according to different power consumption, actual use of equipment, scenarios etc. Solar systems come in different configurations.

Q: Who is responsible for transportation? Or home delivery?

A: There will be dedicated staff responsible for your products’ production, packaging and shipping. To deliver goods safely to the destination port by sea or air. The entire process, including transportation and customs clearance, is handled by us. Europe, Asia, Africa to provide home delivery or nearby pickup service. Provide relevant packing and shipping documents and information on time.

Q: What is the lifetime of a solar power system?

A: The life of the solar panel is 25 years, the charger controller is 5-7 years, the inverter is 5-7 years, and the battery is 8-10 years. Our IOT monitors the installation and operation of your solar power system in real time to extend service life.

Q: Are there any protection measures for solar power overload, and how do electricity leaks, lightning strikes, and hail happen?

A: PVMARS Solar’s PV combiner box and inverter have overload safety functions. To protect each other, they will disconnect the connection with your equipment in the event of abnormal voltage, such as lightning strikes and leaks. After the voltage is restored automatically, the solar system will start automatically. Secondly, the photovoltaic module floor is made of excellent impact-resistant tempered glass. This glass can withstand 200Pa wind stress and 7200Pa snow stress after strict trial and test when passing EU certification.

Q: What can you expect from PVMARS Solar?

A: In addition to providing products, PVMARS solar also provides free on-site survey, customized design solutions, production, installation and maintenance one-stop services.
