Get a Horizontal axis wind turbine with 8-kilowatt hybrid solar energy Factory Price, 5kw solar + 3kw wind, or 5kw wind + 3kw solar. It can be up to you.
Place Of Origin: China
Brand: PVMARS Solar Manufacturer
MOQ: 1 set, accept OEM & ODM
Type: Hybrid solar wind power
Output voltage: 110V-220V-380V-415V Single/Three phase
Payment: T/T, L/C, Paypal, Western Union
Leading solar and wind energy storage technology
Intelligent remote monitoring of 24-hour power supply
We only care about how YOU feel
To your satisfaction
100% EL TESTING, 100% IV TESTING, 100% DIGITAL WORKSHOP
In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.
PVMARS products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.
Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.
With PVMARS IoT, through your phone or computer view real-time performance data of your energy system, such as solar panel and wind power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your hybrid system.
At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!
Single phase: 110V/120V/220V/230V/240V ±5%
Three phase: 380Vac/400Vac±10%(customized 190Vac/200VAC)
For most 220VAC appliances, the voltage is single-phase. Such as air conditioners, fan, light, TV, and so on.
BTW, PVMars clean energy system also can produce double/dual voltage output, which means L1+N =110V – L2+N=110V – L1+L2=220V
For most 380VAC-415VAC appliances, the voltage is three-phase. Such as motors, power pumps, central air conditioning, industrial equipment, and so on.
Your dedicated engineers are ready to start customizing your hybrid solar wind clean energy system!
| 8000 watt solar wind generator Load Reference | |||
| Load Name | Load Rated Power | QTY | Total Rated Power |
lights | 11W | 20 | 220 |
Fan | 80W | 4 | 320 |
Computer(LCD display) | 150W | 2 | 300 |
Fax machine | 150W | 1 | 150 |
refrigerator(200L) | 120W | 1 | 720 |
Washing machine | 300W | 1 | 300 |
Electric cooker | 300W | 1 | 300 |
Air conditioner(1HP) | 750W | 2 | 4500 |
Satellite TV receiver/VCD | 25W | 1 | 25 |
Color TV(32 inch) | 150W | 1 | 150 |
Water pump | 100W | 1 | 400 |
| Total | 7385W | ||
Remark: The refrigerator, air conditioner and water pump are inductive loads, start working power is 3-6 times more than normal power, in the process of use, turn on the inductive load first | |||
Shingled/HJT solar panel, USA TR Technology panel, higher efficiency, longer life
Vmp:39V – Voc:47.13V – Imp 12.3A – Isc:12.91A
25 years guarantee (CE TUV).
Strong anti-cracking, heat spot protection
Capacity: 12V100Ah-250Ah gel battery
Or 96V100Ah-400Ah Lithium (LFP cell) battery –Stackable
The latest in through-wall welding and full-sealing technology.
More suitable for motor loads.
Service life: 8-10-15 years

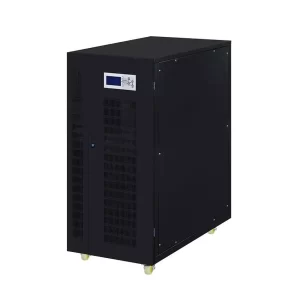

Single/Three Phase Inverter optional
8kW/96VDC
Single phase AC output: 110V/120V/220V/230V/240VAC 50/60HZ
Three phase AC output: 220V 380V 415V 50/60HZ
Dual phase AC output: 220V/240V and 110V/120V 50/60HZ
Waveform: Pure Sine Wave
100% Fuji brand IGBT materials
Bypass function with AC charger, against short-circuit and over-load protection, high-voltage and low-voltage stable protection
Inverter appearance color can be selected
MPPT intelligent control
5000W wind power
96V intelligent control Lightning protection.
Wind turbine current limiting, Wind turbine automatic brake and manual brake.
Wind Power: 1kW-5kW/96V optional
Starting wind speed: 2-3m/s Rated wind speed: 10-13m/s
Security wind speed: 40-60m/s Rated speed: 185-300r/m
Wind Blade material: Extra-strong fiberglass 3 years warranty, 20 years use life
Vertical-axis and horizontal-axis wind turbines are optional
Real MPPT solar controller
MPPT efficiency >99.9%, Max input voltage:800V various protection functions
6m-12m height optional
It helps fasten wind generator in safe altitude.
Use steel material with rust prevention.
Easy to install
H4T-H10T 96VDC optional
Multiple solar panel string inputs
PV array wiring simplified, controller protection,
Wide range of DC input voltages, max circuit voltage: 1000V
Reliable thunderstorm & surge protection
Full set for Slope, Flat or Ground roof optional
Including complete fittings
Wind load: 55m/s, snow load:1.5kn/m2
Structure: Anodized aluminum + stainless steel
Can be customized as per user’s requirement
1) Battery cables and Copper row for connection to battery
2) 4mm2 PV cable and 25mm2 cable
3) full set of install tools, terminals and MC4 and 2P63A switch box
Before each loading and shipment, our factory has special personnel to check QC inspection of qualified products.
They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.
Ensure that you receive complete and correct goods at the end.

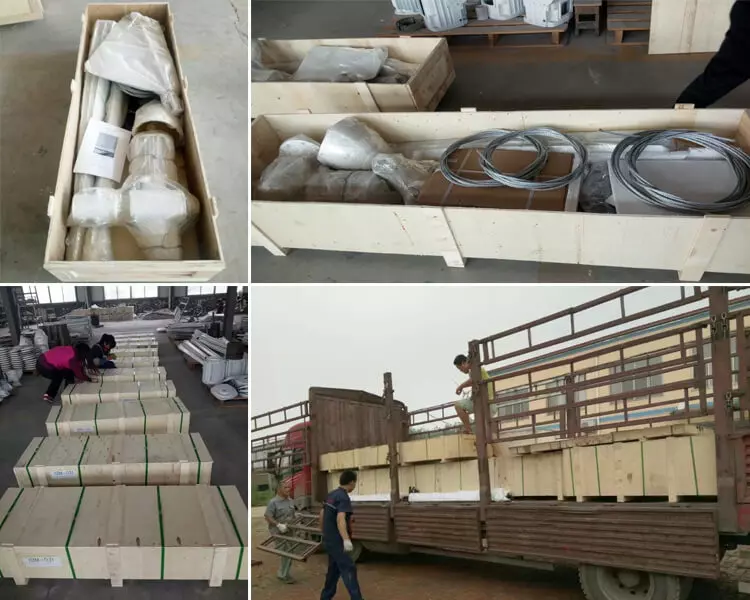

Carton and Wooden box packing optional-Solar panel
More installation manual and video, please click here contact us
We have oversea installation service. The engineer will arrive at the installation site within 10 days after the goods arrived at port.
Q: Do wind turbines make noise? How to solve the noise problem?
A: The wind turbine noise is less than 40 decibels for indoor impact. It’s like the noise our pets (cats or dogs) make when they sleep outside our bedroom.
The impact on our daily life is almost zero.
Click the below picture to check the test video and learn how to solve the noise problem.
Q: Can I customize one?
A: Of course, you can customize the most efficient hybrid solar wind power system. Your exclusive expert is waiting. To provide you with any energy solution, customized according to different power consumption, actual use of equipment, scenarios etc. Solar wind systems come in different configurations.
Q: Where do I better install the wind turbine?
A: Wind turbines below 1kW can be installed on the roof. But those above 1kW are recommended to be installed at least 100m from the home. This is to ensure that there are no buildings or other obstructions higher than the windmill height near the wind turbine.
For installing the guy cable pole, please check below details of the tower picture. PVMARS wind turbine tower includes all installation parts, ensure you received goods completely.
Q: What is the estimated power production?

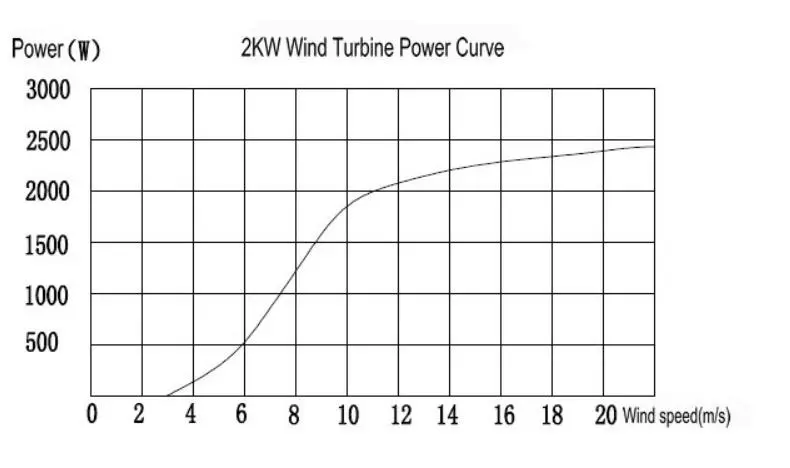

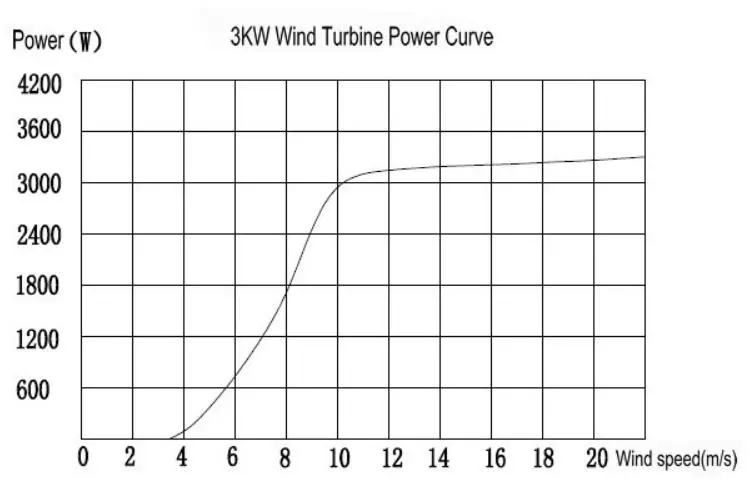

A: 2kw or 3kw or 5kw wind turbine system will produce an estimated 12-18-30 kilowatt hours (kWh) per day, And if your wind speed is good, it will give you more power every day (click here about Kenya’s farm case to learn how to check local wind speed) , And here is the 2kw, 3kw and 5kw wind turbine power curve. The power is relative to the wind speed.
Q: What can you expect from PVMARS Solar?
A: In addition to providing products, PVMARS solar also provides free on-site survey, customized design solutions, production, installation and maintenance one-stop services.
500KW - 2MW
Direct manufacturer pricing, no middleman markups.
We are able to offer durable equipment at competitive price.
Our broadcast station is located at the top of the mountain, and we have used diesel generators before. We worry about the diesel transportation of the generators, maintenance, and voltage instability every day.
The current power source is the 30kw hybrid solar wind energy system. In our limited budget and installation area, PVMARS recommends using a solar wind system. This can reduce the battery footprint, but also provide a 24-hour uninterrupted and stable power supply.
It’s awesome how much I save on my partner’s bill with 10kw solar and battery package, but for me, it’s the peace of mind that I can use our electrical appliances knowing that we have clean energy. I’ve already recommended them to family members because they’ve been friendly, upfront, and responsive.
500kw solar energy storage system has operated in our remote countryside for two years. This week, Dunsborough experienced another blackout. Now we are happy to tell you that our town is not affected. All houses keep the lights on, use refrigerators, surf the Internet and listen to music to relax. This is thanks to PVMARS solar company, which customized the solar battery system according to our town’s electricity demand. This has greatly improved our local residents’ happiness index.
There was no problem with the installation, the instructions and online remote video install guidance were great, the system is working great and I’m producing 90% of my power. I just got my first bill back, last year $1290, this year $119, it’ll pay for itself in two years at this rate. You just have to adjust your times for power usage and you’ll save a lot.
The 5kw solar storage system was installed in 2018. We were initially attracted to the idea of using lithium batteries at night while solar power supply our house during the day. In addition, it can also provide seamless grid failure protection. At that time we did not know that the main city power had been cut off, until we saw outside, originally brightly lit streets and houses, because there is no electricity change to dark, to realize that the city grid has been cut off. And our house because of solar energy, to achieve power independence, electricity freedom.
We have seen an immediate reduction in our energy bills and a change in our power consumption patterns since we installed the PVMARS off-grid solar power system. And PVMARS IOT is so smart to remind me why my battery is running so fast. We can also contribute power back to the grid over the summer, which is a big plus.
